Ubiquiti EP-S16-US EdgePoint Intelligent WISP Control with FiberProtect Switch with 16 Port and 2 SFP+

(No reviews yet) Write a Review
SKU:
EP-S16-US
UPC:
810354024276
Call for availability!
  • Ubiquiti EP-S16-US Edgepoint WISP Switch 16 Port
  • Ubiquiti EP-S16-US EdgePoint Intelligent WISP Control with FiberProtect Switch with 16 Port and 2 SFP+
  • Ubiquiti EP-S16-US EdgePoint Intelligent WISP Control with FiberProtect Switch with 16 Port and 2 SFP+
  • Ubiquiti EP-S16-US EdgePoint Intelligent WISP Control with FiberProtect Switch with 16 Port and 2 SFP+
  • Ubiquiti EP-S16-US EdgePoint Intelligent WISP Control with FiberProtect Switch with 16 Port and 2 SFP+
  • Ubiquiti EP-S16-US EdgePoint Intelligent WISP Control with FiberProtect Switch with 16 Port and 2 SFP+
$507.30
Free Shipping
Technical Support
  • Power Budget : 12 Watt
  • Number of Ports : 16

Description

Ubiquiti EP-S16-US EdgePoint Intelligent WISP Control with FiberProtect Switch with 16 Port and 2 SFP+

The EdgePoint offers an innovative combination of robust routing performance, fiber backhaul capability, and the convenience of passive PoE support.

Ubiquiti Networks introduces the EdgePoint, part of the EdgeMAX platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.

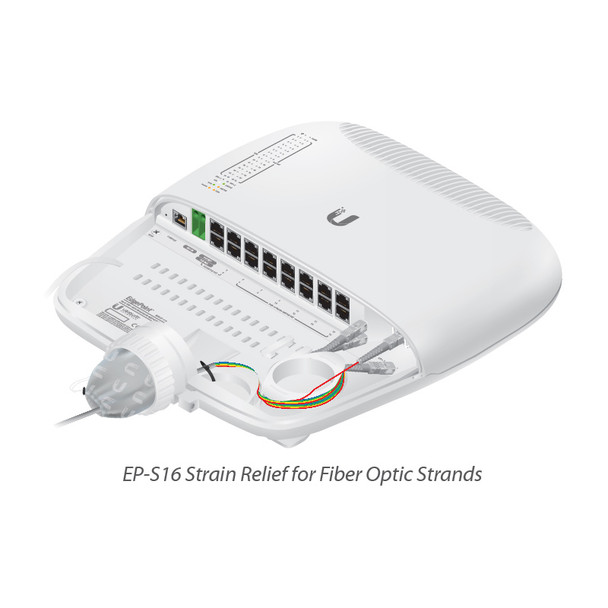

The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.

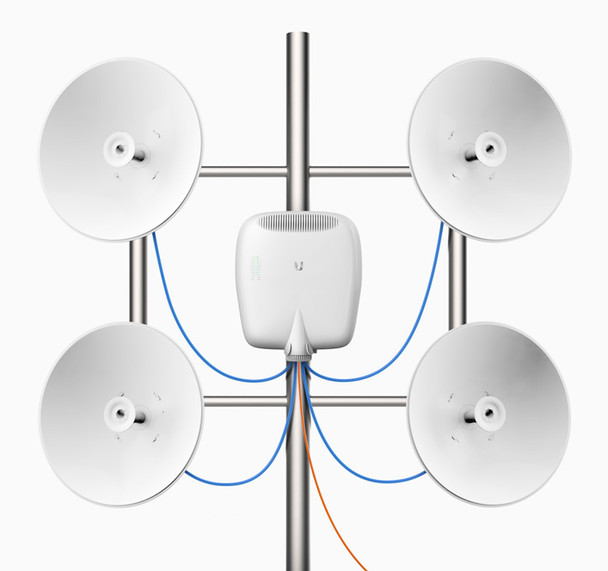

A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.

Key Features:

  • Power Options
    • 54VDC, 6A Terminal Block
    • Dual PoE Input
  • Data Ports
    • (16) RJ45 Ports
    • (2) SFP+ Ports
    • Sixteen RJ45 ports support PoE:
    • PoE Input or Output
    • (2) Ports with Two Options:
    • 54V, 1.5A Passive PoE Input
    • or 54 or 24V, 1.4A Passive PoE Output*
  • PoE Output
    • (2) 54 or 24V, 1.4A Passive PoEOutput Ports*
    • (12) PoE+ or 24V, 0.7A Passive PoE Output Ports*
View AllClose

Specifications

Dimensions326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
Weight3.4 kg (7.50 lb)
Enclosure CharacteristicsDiecast Aluminum Alloy and Polycarbonate with UV Resistance
Max. Power Consumption40W (Excludes PoE Output)
Power Input(1) DC Terminal Block or (2) RJ45 (Ports 1 and 2) (Self-Correcting Polarity Protection on DC Terminal Block Only, Diode ORed Protection on All Power Inputs)
Power SupplyMin. 54V / 0.8A (Excludes PoE Output Power)
VDC Input54VDC, 6A
Passive PoE Input(2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2 (Do NOT Configure Port 1 or 2 in PoE Output Mode if You Are Using PoE Input Power Sources.)
Passive PoE Output(4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4 (12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16
Power Monitoring(1) DC Terminal Block, Input Power (2) RJ45, Ports 1 and 2, PoE Input or Output Power (14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range56 to 42VDC
ButtonsReset
LEDsPower, Speed, Link, Activity, PoE
Ports(1) RJ45 Serial Port (16) 10/100/1000 RJ45 Ports (2) 1/10 Gbps SFP+ Ports
ProcessorARM Cortex-A9 400 MHz
Memory256 MB DDR3 RAM
Code Storage32 MB
CertificationsCE, FCC, IC
MountingPole mount, wall mount
Operating Temperature-40 to 65° C (-40 to 149° F)
Operating Humidity10 to 90% Noncondensing
View AllClose

Compatible products

Additional Information

Accessory Type:
PoE Switch
Number of Ports:
16
Power Budget:
12 Watt
View AllClose
