Ubiquiti F-POE FiberPoE Network/Power Extender - Optical Data Transport for Outdoor PoE Device

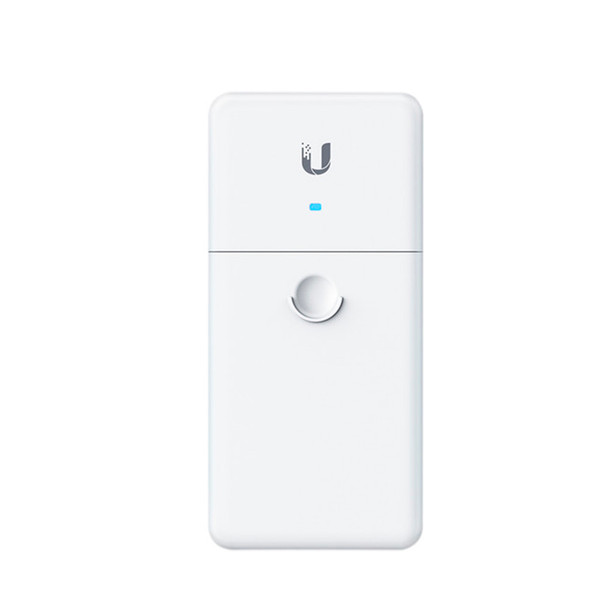

Ubiquiti F-POE FiberPoE Network/Power Extender

Overcome PoE limitations with the FiberPoE™. The FiberPoE is a low-cost solution for outdoor deployments that require long-distance runs to reach the PoE device. Deployments with the FiberPoE also provide significant EMI and ESD protection over typical PoE installations.

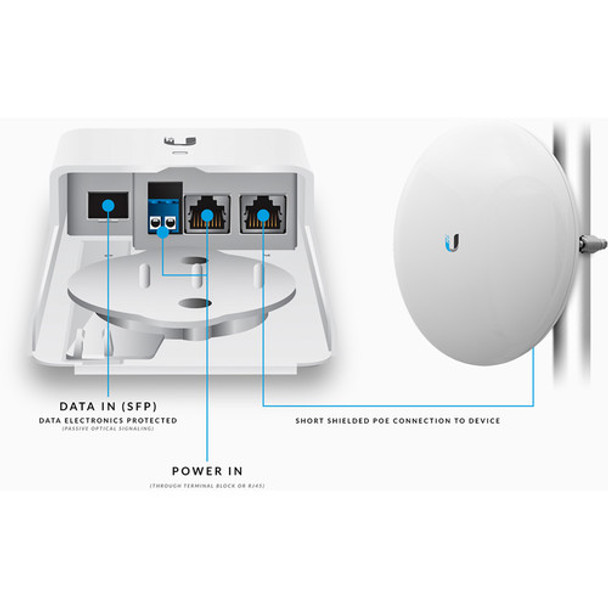

Separate Data and Power Transport: PoE is ideal for indoor or short-run installations. However, for outdoor, long-distance installations, PoE becomes vulnerable to EMI and is limited to 100 meters with correlated power loss. With the FiberPoE, data and power are transported on separate cables to greatly improve data integrity and enable much longer cable runs. The FiberPoE provides Gigabit bi‑directional data transport between twisted-pair Ethernet cable and fiber optic cable, and injects DC power to the Ethernet cable for passive PoE. Use one FiberPoE device as an Fiber‑to‑Ethernet Converter, or a pair of FiberPoE devices to create a Fiber Bridge.

Fiber Optic Data Transport: Using fiber optic cable for data transport significantly reduces electrostatic discharge (ESD) failures and electromagnetic interference (EMI). Data integrity is also sustained in runs beyond 100 meters, the limit of Ethernet over twisted‑pair cable. The FiberPoE supports a 1G SFP module and 24V or 50V power from a DC power cable or PoE cable.

Integrated Fiber Cable Strain Relief: An integrated strain relief system was thoughtfully designed to fit inside the FiberPoE cover for added protection and a cleaner installation.

Key features of Ubiquiti F-POE

• Reliable Long-Distance Gigabit PoE Runs
• Enhanced ESD Protection and EMI Reduction
• Dependable 24V/50V Passive PoE Transport
• (1) 1 Gbps SFP Port
• (1) DC Terminal Block
• (1) DC RJ45 Port DC Injection
• (1) 1000 Mbps* Ethernet PoE Port
• DC Terminal Block, 2-Wire, 24VDC or 50VDC
• DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough
• PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough
• White: Power On
• Blue: Connected
• Blue (Flashing): Activity
• CE, FCC, IC certification
