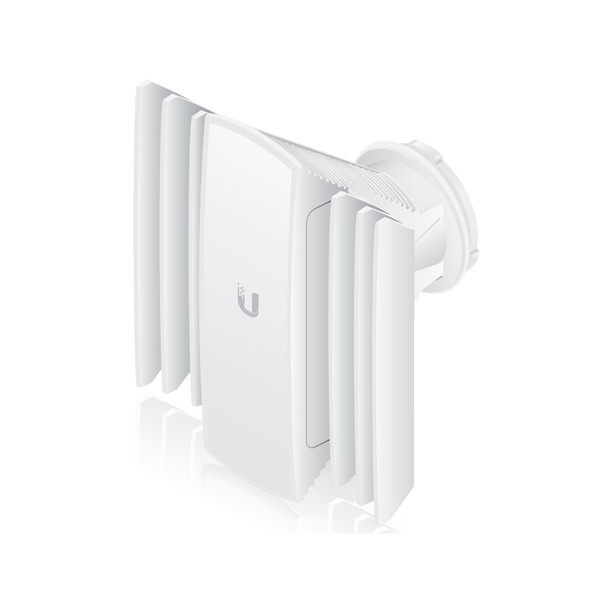

Ubiquiti HORN-5-90 5GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co-location performance without sacrificing gain.
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

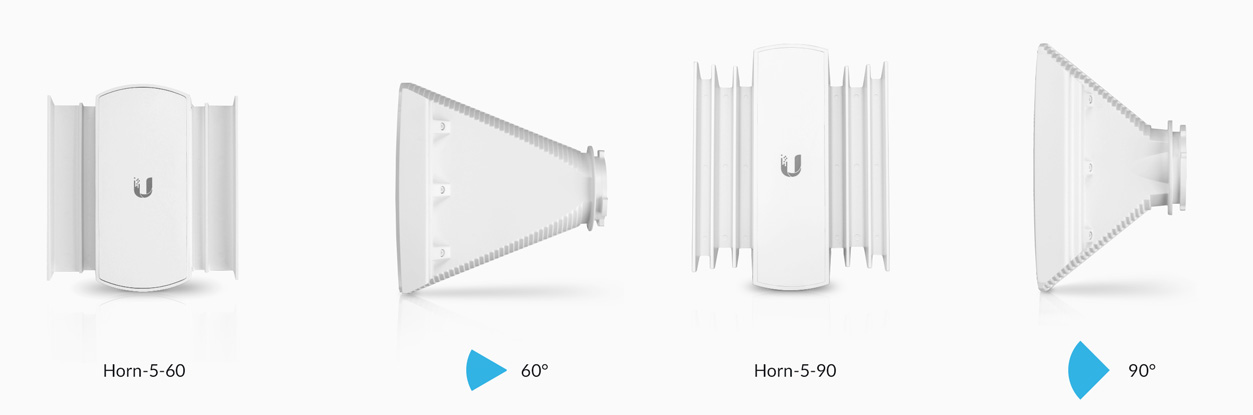

60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Key features:
- Frequency Range: 5.15 - 5.85GHz
- Compatible Radios: IsoStation/PrismStation/airFiber AF-LTU
- Gain: 13 dBi
- HPOL Beamwidth: 90°
- VPOL Beamwidth: 90°
- Elevation Beamwidth: 45°
- Polarization: Dual-Linear
- Cross-Pol Isolation: 17 dB
|
Horn-5-30
|
Horn-5-45
|
Horn-5-60
|
Horn-5-90
| |
|---|---|---|---|---|
| Gain | 19 dBi | 15.5 dBi | 16 dBi | 13 dBi |
| Frequency | 5.15 ‑ 5.85GHz | 5.15 ‑ 5.85GHz | 5.15 ‑ 5.85GHz | 5.15 ‑ 5.85GHz |
| Beam Width | 30° | 45° | 60° | 90° |
Downloads
Popular Search
Compatible products
Additional Information
|
Accessory Type:
|
Wireless Antenna
|
|
Color:
|
White
|
|
Frequency:
|
5 GHz
|
|
Gain:
|
13 dBi
|
|
Warranty:
|
1-year Manufacturer Warranty
|
