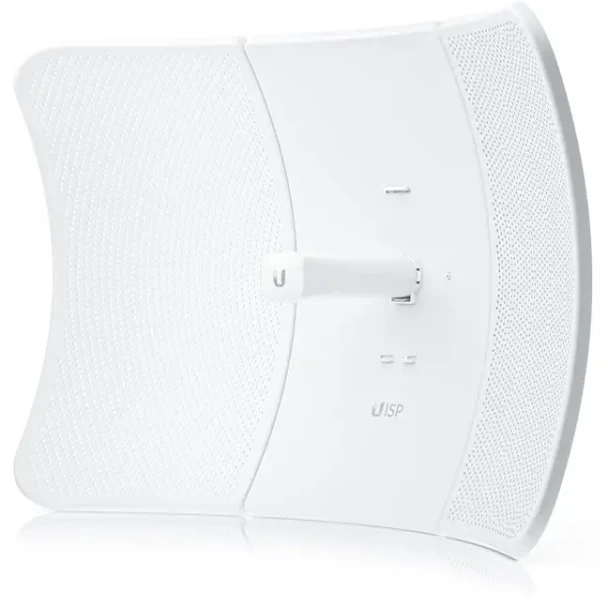

Ubiquiti LBE-5AC-XR airMAX LiteBeam 5AC XR 5GHz Wireless Radio

Ubiquiti LBE-5AC-XR airMAX LiteBeam 5AC XR 5GHz Wireless Radio

The Ubiquiti LBE-5AC-XR is an ultra-lightweight outdoor airMAX 5 GHz CPE engineered for extreme long-distance wireless links. With a 29 dBi integrated parabolic antenna and 25 dBm conducted TX power, the LiteBeam 5AC XR delivers 450+ Mbps throughput on point-to-point or point-to-multipoint links over distances unreachable by typical CPE radios.

The all-in-one design combines aluminum alloy and UV-stabilized polycarbonate construction with a built-in pole mount (Ø1.38–2.36 in compatibility) and IPX6 weatherproofing. A dedicated 2.4 GHz management radio enables fast device setup via the UISP mobile app without first connecting to the main 5 GHz link. The unit is rated for 1100 N wind loading at 125 mph, operates from -40 °F to 158 °F, and is NDAA compliant for U.S. federal procurement. A 24V DC Passive PoE gigabit adapter is included for power and data over a single Ethernet run.

Key Features:

• 5.15–5.85 GHz operating frequency with 25 dBm conducted TX power; supports demanding outdoor long-distance links
• 29 dBi integrated parabolic antenna with 5.5° beamwidth; delivers focused gain for kilometer-scale point-to-point shots
• 450+ Mbps maximum throughput; handles HD video, VoIP, and bulk data over a single wireless link
• PtP and PtMP operating modes; flexible deployment for backhaul or multi-client distribution
• Dedicated 2.4 GHz management radio; enables quick setup via the UISP mobile app without disturbing the main link
• Built-in pole mount with Ø1.38–2.36 in compatibility; eliminates the need for a separate mounting bracket
• 1100 N wind loading at 125 mph; structurally rated for exposed tower and rooftop installations
• IPX6 weatherproofing in aluminum and UV-stabilized polycarbonate housing; resists rain, sun, and jet-water spray
• Wide operating temperature range from -40 °F to 158 °F; reliable function in extreme climates worldwide
• Passive PoE (24V DC) gigabit power adapter included; eliminates the need for a separate accessory purchase
• WPA2-PSK (AES) encryption with airView, alignment, and discovery utilities; complete airMAX toolset built in
• NDAA compliant; meets U.S. federal procurement requirements for government and enterprise projects
• FCC, IC, and CE certified; cleared for use in North America, Europe, and other major markets
