Ubiquiti LOCO5AC-5-US NanoStation AC Loco 5 GHz airMAX ac Radio - 5-packs

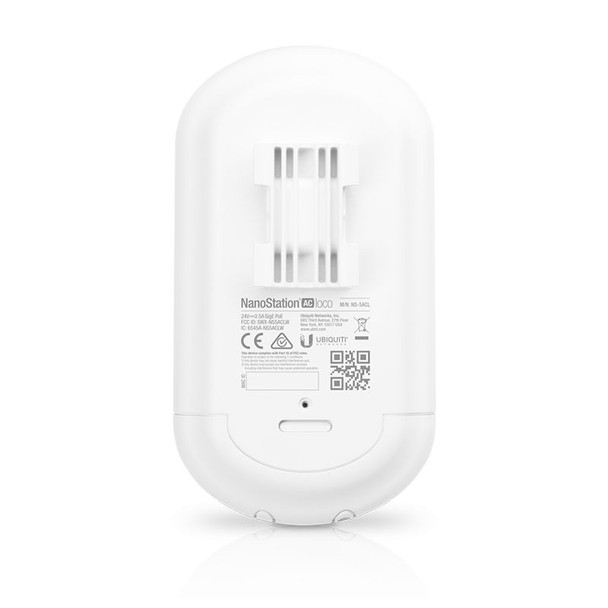

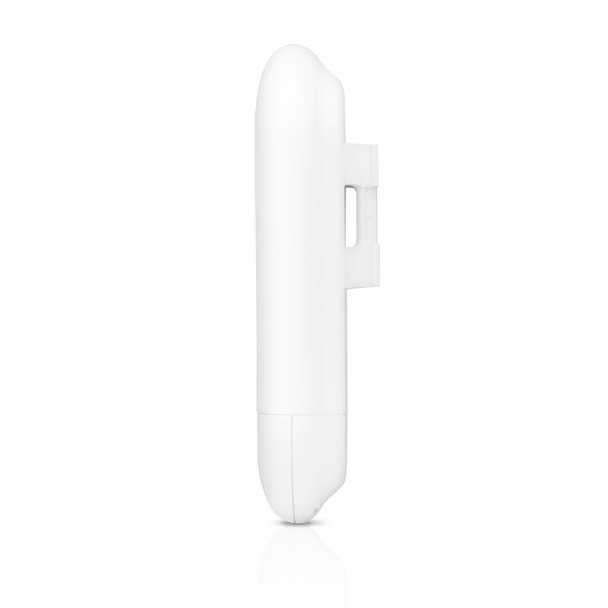

Ubiquiti LOCO5AC-5-US NanoStation AC Loco 5 GHz airMAX ac Radio
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation M.
The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
- Frequency 5 GHz 5 GHz
- Throughput 450+ Mbps 450+ Mbps
- Range 15+ km 10+ km
- 24V, 0.3A Gigabit PoE Supply
- Enclosure: Outdoor UV Stabilized Plastic
|Dimensions||179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33")|
|Weight||0.18 kg (6.35 oz)|
|Channel Bandwidth||10/20/30/40/50/60/80 MHz|
|Networking Interface||10/100/1000 Mbps Ethernet Port|
|LEDs||Power, Ethernet, (4) Signal Strength|
|Power Method||Passive PoE (Pairs 4, 5+; 7, 8 Return)|
|Power Supply||24V, 0.5A Gigabit PoE Supply (Not Included)|
|Max. Power Consumption||8.5W|
|Supported Voltage Range||24V ±10%|
|Operating Temperature||-40 to 70° C (-40 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Certifications||CE, FCC, IC|
1-year Manufacturer Warranty
