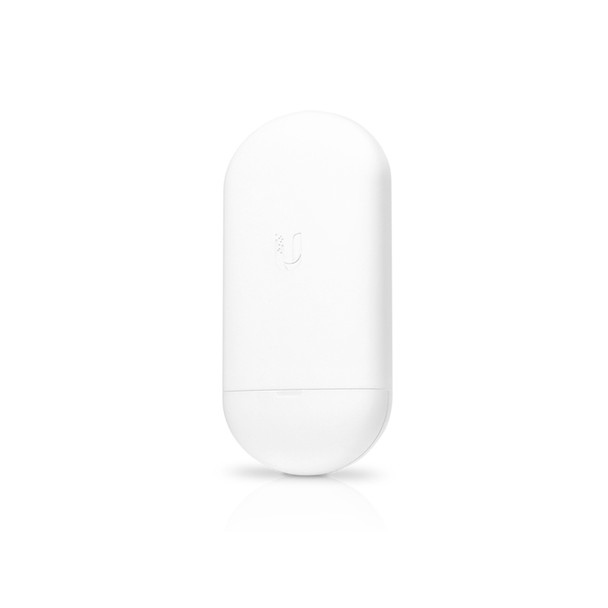

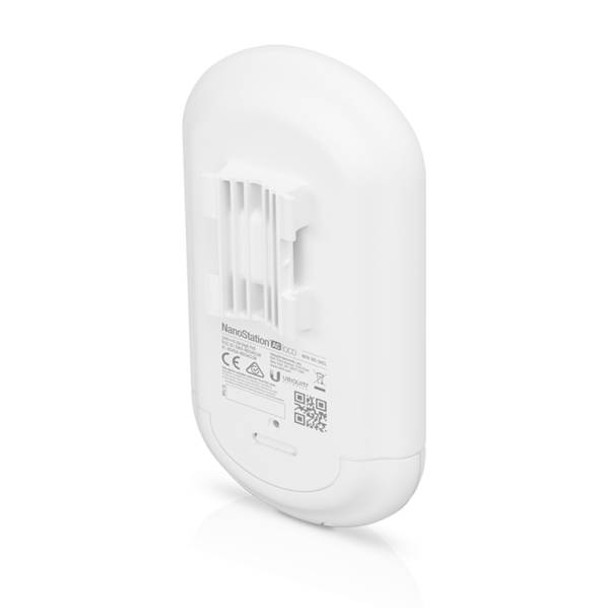

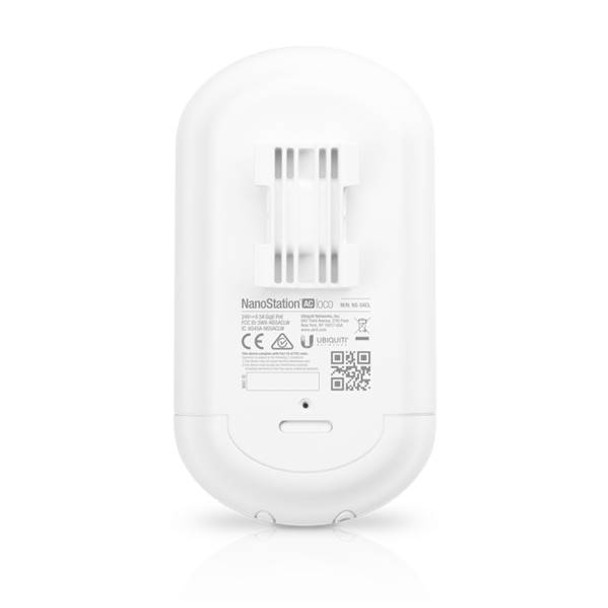

Ubiquiti Loco5AC-US NanoStation 5AC Loco with Updated AirMAX ac Chipset

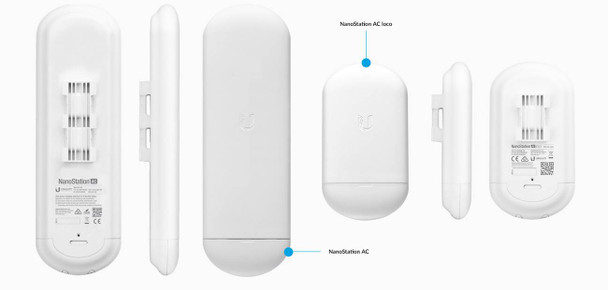

Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Key Features:
- 5GHz
- New antenna
- Improved design
- Management WiFi Radio/UNMS mobile app
- AirOS 8
- Range: +10km
- Up to 450+ Mbps Real TCP/IP Throughput
- Dedicated Wi-Fi Radio for Management
Downloads
Datasheet
Ubiquiti-Loco5AC-US-Datasheet-A1
Quick Start Guide
Ubiquiti-Loco5AC-US-Quick-Start-Guide-A1
Popular Search
Specifications
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
| Weight | 0.18 kg (6.35 oz) |
| Processor | MIPS 74K |
| Memory | 128 MB |
| Gain | 13 dBi |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Not Included) |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 24V ±10% |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
Additional Information
|
Accessory Type:
|
Wireless Access Point
|
|
Compliance:
|
NDAA Compliant
|
|
Product Series:
|
Ubiquiti NanoStation Series
|
|
Warranty:
|
1-year Manufacturer Warranty
|
