Description

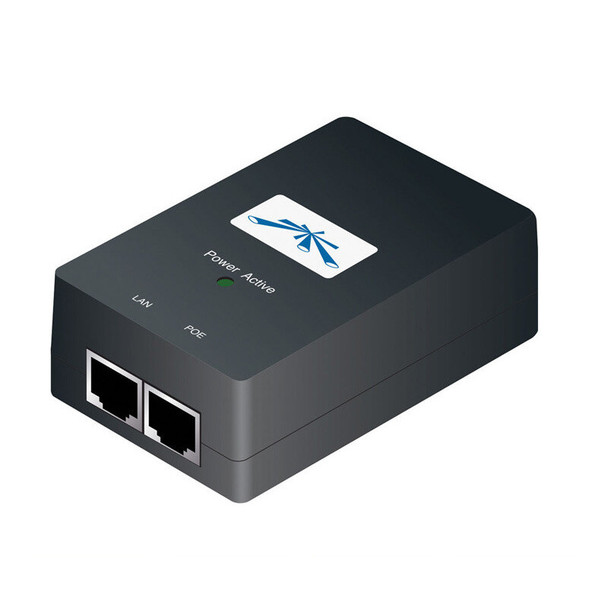

Ubiquiti POE-48-24W-G PoE Adapter
Ubiquiti POE-48-24W-G PoE Adapter helps power up Ubiquiti PoE devices that belong to the airFiber, airMAX, airVision, UniFi, and mFi series. This adapter also provides protection against electronic discharge attacks and surge discharge, peak pulse current. This adapter includes regional AC cables with ground protection. This unit also includes a Gigabit LAN port.
Key features:
- ESD and surge attack protection
- 48VDC @ 0.5A
- Gigabit LAN port
- Power cord included
Downloads
Datasheet
Ubiquiti-POE-48-24W-G-Datasheet-A1
Popular Search
Specifications
| Dimensions | 92 x 60 x 33 mm (3.62 x 2.36 x 1.30") |
| Weight | 158.5 g (5.59 oz) |
| Output Voltage | 48VDC @ 0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <65A Peak @ 120VAC, <130A Peak @ 230VAC |
| Efficiency | 0.8 |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
Compatible products
Additional Information
|
Accessory Type:
|
PoE Injector
|
|
Warranty:
|
1-year Manufacturer Warranty
|
