Ubiquiti PS-5AC PrismStation Shielded airMAX ac BaseStation with airPrism Technology

Ubiquiti PS-5AC PrismStation Shielded airMAX® ac BaseStation with airPrism® Technology

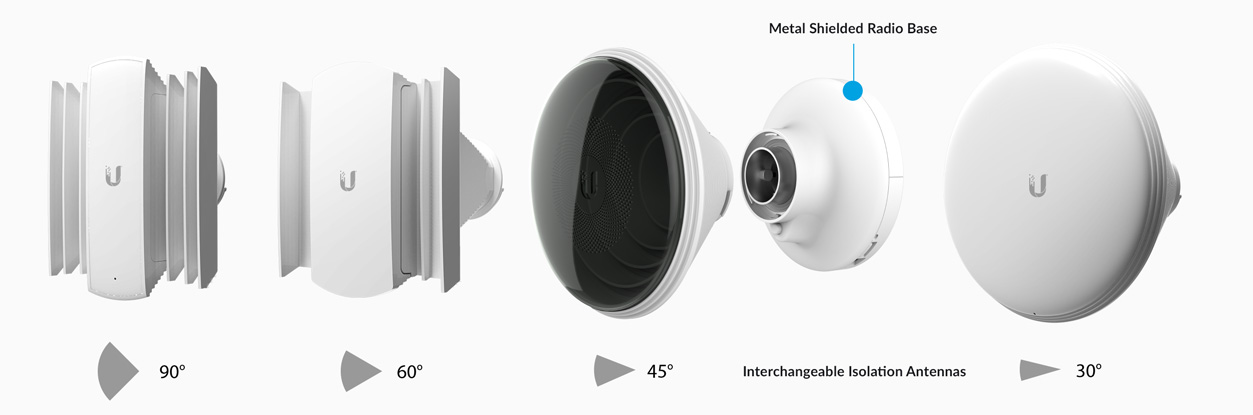

Modular Design

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The PrismStationTM AC also gets maximum gain out of the smallest footprint.

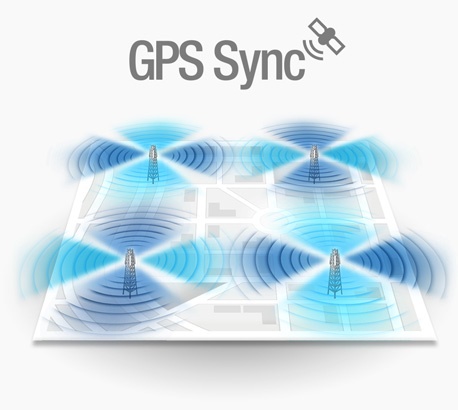

GPS Synchronization

PrismStationTM AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

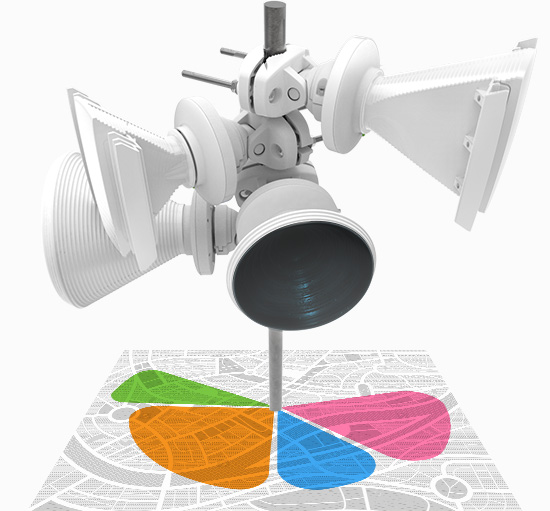

Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity

PrismStationTM AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Key features of Ubiquiti PS‑5AC

• Full-Band 5 GHz
• 500+ Mbps
• Range up to 3+ miles
• airPrism Active RF Filtering Technology
• (1) 10/100/1000 Ethernet Port
