Ubiquiti
Ubiquiti RD-2G24 RocketDish AirMax 2.4 GHz Carrier Class 2x2 PtP Bridge Dish Antenna (24 dBi)
- SKU:
- RD-2G24
- UPC:
- 810354021268
- Maximum Purchase:
- 1000 units
Description
Ubiquiti RD-2G24 2.4 GHz airMAX 24 dBi RocketDish Antenna
Ubiquiti RD-2G24 RocketDish integrates with M2 to help create powerful 2x2 MIMO PtP Bridging applications. The device includes the new OMT technology which helps optimize throughput This Rocket dish features a universal pole mount, which makes it easy to install and use. This unit is also waterproof, which facilitates outdoor use.

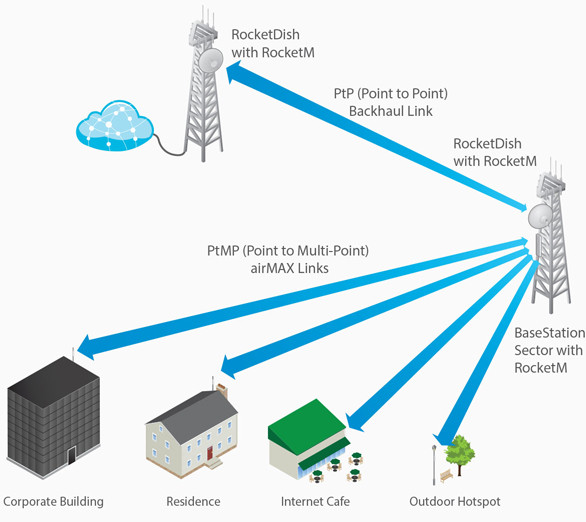

Pair a RocketDishTM antenna with a Rocket basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector with Rocket delivers bandwidth to the ISP’s customers.
Key Features:
- 2.3-2.7 GHz Frequency range
- 24 dBi Gain
- 3.8 deg. (Rx Dish), 6.6 deg. (Tx Dish) Hpol beamwidth
- 3.8 deg. (Rx Dish), 6.6 deg. (Tx Dish) Vpol beamwidth
- -50 dB (Rx Dish), -65 dB (Tx Dish) F/B Ratio
- 1.6:1 Max VSWR
- 120 mph Wind survivability
- 113 lb @ 100 mph Wind loading
- 113 lb @ 100 mph Polarization
- 35 dB min Cross-pol Isolation
- EN 302 326 DN2 ETSI specification
- Universal pole mount
- Rocket M bracket
- Weatherproof RF jumpers included
Specifications
Dimensions | 650 x 650 x 295 mm (25.6 x 25.6 x 11.61") |
Weight | 9.8 kg (21.61 lb) |
Frequency Range | 2.3 - 2.7 GHz |
Gain | 24 dBi |
HPOL Beamwidth | 6.6° (3 dB) |
VPOL Beamwidth | 6.8° (3 dB) |
F/B Ratio | 28 dB |
Max. VSWR | 1.6:1 |
Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
Wind Survivability | 200 km/h (125 mph) |
Polarization | Dual-Linear |
Cross-pol Isolation | 35 dB Min. |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
Additional Information
Manufacturer: |
Ubiquiti |
Warranty: |
1-year Manufacturer Warranty |
Frequency: |
2.4 GHz |
Gain: |
24 dBi |
Product Type: |
Accessories |
