Ubiquiti UA-RETROFIT-HUB-2 2-Door Retrofit Access Hub

Ubiquiti UA-RETROFIT-HUB-2 2-Door Retrofit Access Hub

The Ubiquiti UA-RETROFIT-HUB-2 is a DC-powered access control hub that supports Wiegand and OSDP readers and provides entry and exit control for up to two doors within the UniFi Access ecosystem. Supporting up to 10,000 users, it integrates third-party Wiegand readers or UniFi Retrofit Readers alongside door position sensors, exit request buttons, and an emergency input, enabling full retrofit deployments using existing reader infrastructure. Dry and powered relay outputs support a wide range of electric locks at 12V or 24V DC.

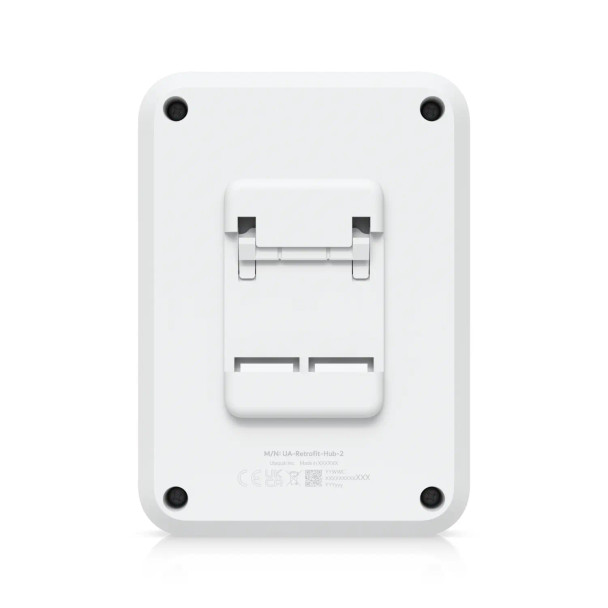

The UA-RETROFIT-HUB-2 mounts on a standard DIN rail (included) and connects to the network via two 10/100 MbE RJ45 ports. It is powered by 12/24V DC (compatible with the UACC-RETROFIT-PSU-12V) and is managed through UniFi Access. The device is NDAA compliant and certified by FCC, CE, and IC.

Key Features:

• 2-door entry/exit control with Wiegand and OSDP reader support; enables retrofit deployments using existing third-party reader infrastructure alongside UniFi Retrofit Readers.
• 10,000 user capacity; scales to enterprise and commercial access control deployments without cloud dependency for local credential storage.
• Dry relay (30V DC, 1A) and powered relay outputs (12V/1A or 24V/0.5A); supports a wide range of electric strikes, magnetic locks, and electric bolts.
• Emergency input, door position, and exit request inputs per door; provides complete door hardware integration for compliant access control installations.
• DIN rail mount included; simplifies installation in standard electrical enclosures and control panels.
• NDAA compliant, FCC/CE/IC certified; meets U.S. federal procurement requirements for access control infrastructure.
