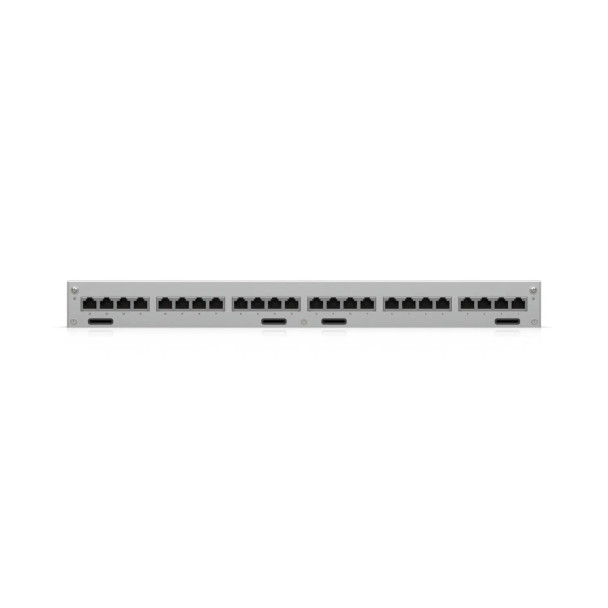

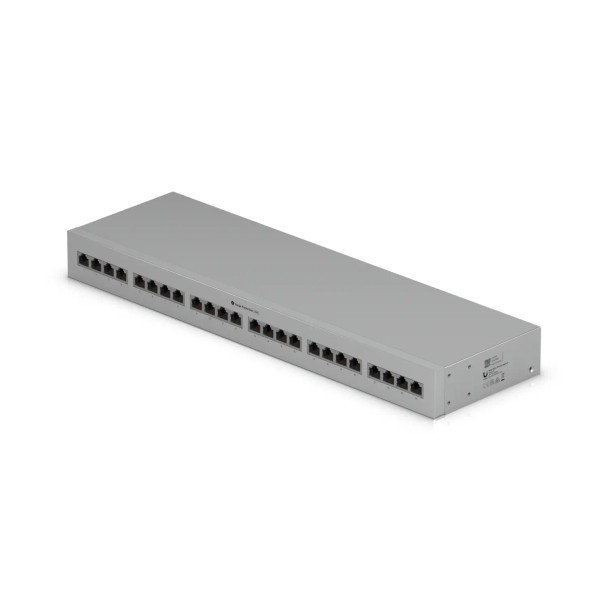

Ubiquiti UACC-ETH-SP-PANEL-24 24-Port Rack-Mount Ethernet Surge Protection Panel

Ubiquiti UACC-ETH-SP-PANEL-24 24-Port Rack-Mount Ethernet Surge Protection Panel

The Ubiquiti UACC-ETH-SP-PANEL-24 is a 1U rack-mount Ethernet surge protection panel that shields network equipment from voltage transients across 24 protected ports. Each port supports up to 10 GbE data rates and PoE++, making it suitable for protecting modern high-power switches, access points, and IP cameras without throttling performance.

Built around 24 in / 24 out RJ45 female connectors and a rugged SGCC steel enclosure, the panel handles a 20 kA discharge current and absorbs transients ranging from 100 V/s to 1 kV/µs. It operates reliably across a wide -40 to 80°C (-40 to 176°F) temperature range, making it well suited for indoor distribution closets and rack rooms.

Key Features:

• 24 protected ports with full 10 GbE and PoE++ pass-through; protects modern high-bandwidth, high-power network links without performance loss.
• 20 kA discharge current capacity with 90 V DC spark-over and 600 V max impulse spark-over voltage; safeguards equipment against lightning-induced surges.
• 1U rack-mount form factor in a SGCC steel enclosure; integrates cleanly into standard 19" network racks.
• 48 RJ45 female connectors (24 in / 24 out); simplifies cable management between incoming runs and protected switch ports.
• Wide -40 to 80°C (-40 to 176°F) operating temperature range with 10 to 90% noncondensing humidity tolerance; reliable in demanding indoor environments.
