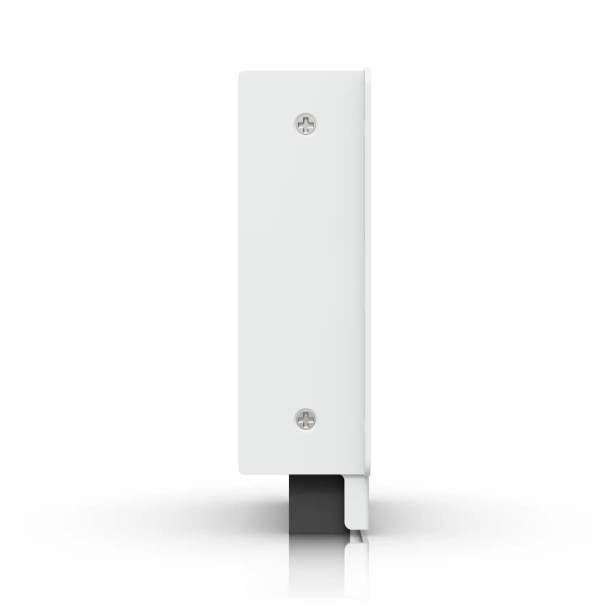

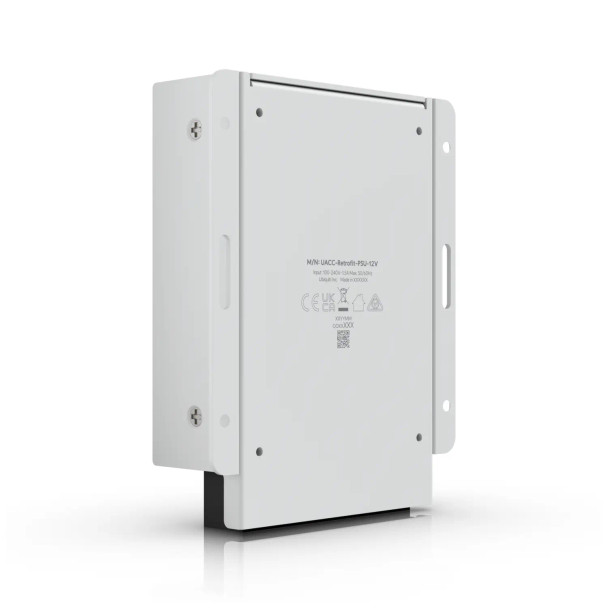

Ubiquiti UACC-RETROFIT-PSU-12V 12V Power Supply
The Ubiquiti UACC-RETROFIT-PSU-12V is a 12V DC power supply designed for use with the UniFi Retrofit Hub, featuring optional SLA backup battery support for continuous access control operation during power outages. It accepts universal AC input (100–240V AC, 50/60 Hz) and outputs 12V DC at 5A (60W), with 85% efficiency. A dedicated battery port supports a 12V SLA battery with 0.5A charging current, providing seamless failover without external UPS hardware. Three status LEDs provide at-a-glance power, battery, and fault indication. The device is NDAA compliant and certified by FCC, CE, and IC.
Key Features:
- 12V DC output at 5A with optional 12V SLA battery backup; provides uninterrupted power to the UniFi Retrofit Hub during AC outages.
- Universal AC input (100–240V AC, 50/60 Hz), 85% efficiency; compatible with global AC power infrastructure with energy-efficient operation.
- Dedicated battery charge port (12V, 0.5A); enables direct SLA battery integration without requiring a separate battery charger or UPS.
- NDAA compliant, FCC/CE/IC certified; meets U.S. federal procurement requirements for access control power systems.
Additional Information
|
Accessory Type:
|
Power Supply
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
5.00x2.99x1.38in
|
|
Max Power Consumption:
|
80 Watts
|
|
Output Voltage:
|
12VDC
|
|
Power Supply:
|
100 to 240 V AC
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
