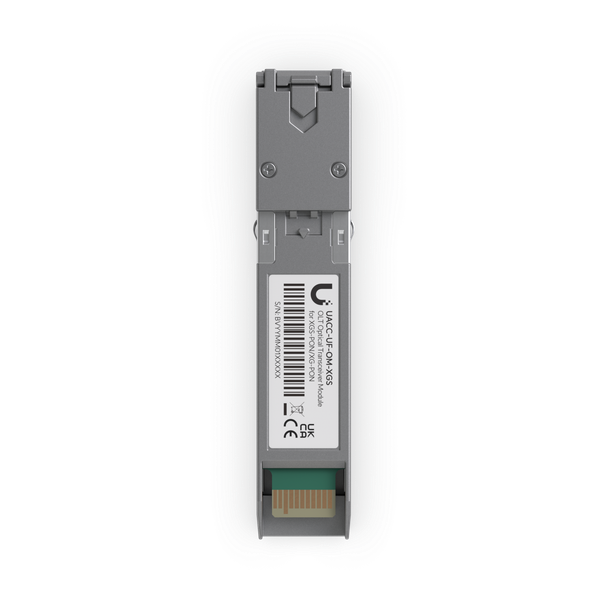

Ubiquiti UISP Fiber UACC-UF-OM-XGS 10Gbps XGS-PON/XG-PON Optical Transceiver Module

Ubiquiti UISP Fiber UACC-UF-OM-XGS 10Gbps XGS-PON/XG-PON Optical Transceiver Module

The Ubiquiti UACC-UF-OM-XGS is a 10 Gbps optical transceiver module from the UISP Fiber series, designed for the UISP Fiber OLT XGS. It allows service providers, campuses, and multi-tenant properties to deliver XGS-PON and XG-PON fiber service to compatible UISP Fiber XGS and XG terminals over single-mode fiber at distances of up to 20 km (12.43 mi).

The module provides a 10 Gbps downlink with a 10 Gbps (XGS-PON) or 2.5 Gbps (XG-PON) uplink, using a single SC/UPC connector with 1577 nm transmit and 1270 nm receive wavelengths. With a maximum power draw of only 2.6W and NDAA compliance, it is well suited for government, education, and commercial PON deployments. It ships as a single pack; fiber cable is sold separately. As a Class 1 laser product (IEC/EN 60825-1:2014), never look into the fiber ends or the module while it is powered.

Key Features:

• 10 Gbps downlink, 10 Gbps (XGS) / 2.5 Gbps (XG) uplink; supports both XGS-PON and XG-PON subscribers from one OLT port.
• Designed for UISP Fiber OLT XGS, compatible with UISP Fiber XGS/XG terminals; ensures seamless operation within the UISP Fiber ecosystem.
• Up to 20 km (12.43 mi) over single-mode fiber; covers long-distance last-mile and campus runs.
• (1) SC/UPC connector with 1577 nm TX / 1270 nm RX wavelengths; matches standard PON fiber infrastructure.
• TX power +4 to +7 dBm, RX power range -9 to -26 dBm; provides a strong optical budget for split networks.
• 2.6W max. power consumption; keeps OLT power and heat load low.
• Operating temperature 32°F to 158°F (0°C to 70°C), storage -40°F to 185°F (-40°C to 85°C); reliable in network closets and headend racks.
• NDAA compliant; suitable for government and federally funded projects.
