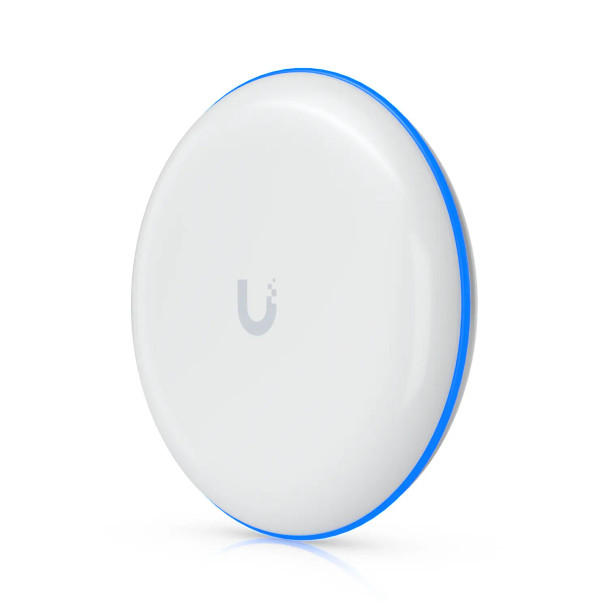

Ubiquiti UBB-SINGLE-US 60 GHz Wireless Bridge

Ubiquiti UBB-SINGLE-US 60 GHz Wireless Bridge

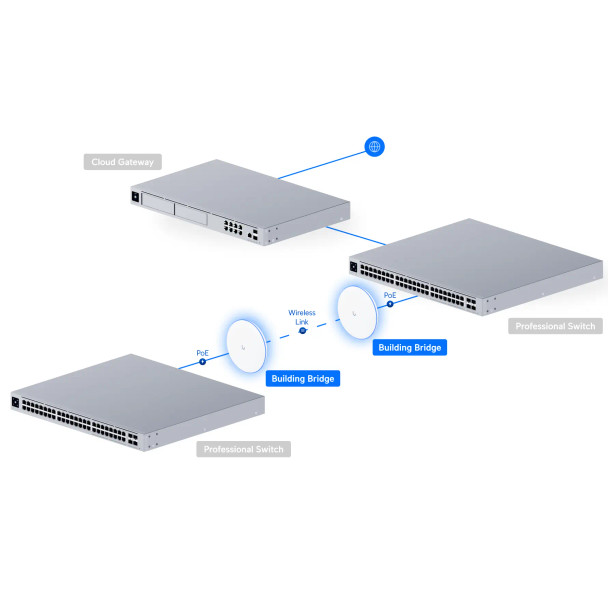

The Ubiquiti UBB-SINGLE-US is a 60 GHz point-to-point wireless bridge capable of 1.7 Gbps maximum throughput over distances up to 500 m (1,640 ft). A built-in 5 GHz backup radio (802.11ac, up to 866.6 Mbps) ensures link continuity if the 60 GHz main radio is obstructed or affected by environmental conditions. Sold as a single unit, two UBB-SINGLE-US devices are required to form a complete PtP link. A PoE adapter is included, and the IPX6-rated UV-resistant polycarbonate enclosure supports wall and pole mounting.

The 60 GHz main radio operates across 57–66 GHz with 17.2 dBi antenna gain, while the 5 GHz backup provides 10 dBi gain with WPA2 AES security. Managed via Ethernet and Bluetooth, it is NDAA compliant and certified by FCC, CE, and IC. Wind loading is rated for 200 km/h (125 mph) for permanent outdoor deployment.

Key Features:

• 60 GHz main radio, 1.7 Gbps max throughput, up to 500 m (1,640 ft) reach; delivers gigabit-class wireless backhaul for point-to-point links.
• 5 GHz backup radio (802.11ac, 866.6 Mbps); maintains link connectivity when the 60 GHz path is temporarily obstructed.
• 17.2 dBi antenna gain at 60 GHz, 10 dBi at 5 GHz; focused signal for extended PtP range with high EIRP.

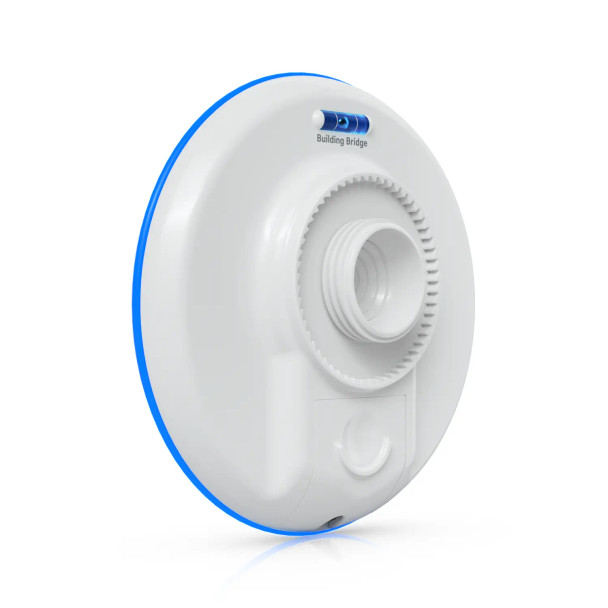

• IPX6-rated UV-resistant polycarbonate enclosure, -40 to 70°C, 200 km/h wind loading; purpose-built for permanent outdoor deployment.
• PoE powered (44–57V DC, 11W max), PoE adapter included; single-cable installation with no additional power hardware.
• NDAA compliant, FCC/CE/IC certified; meets U.S. federal procurement requirements for outdoor wireless infrastructure.
