Ubiquiti UDM-BEAST UniFi Dream Machine Beast 25 Gbps IPS/IDS Cloud Gateway

Ubiquiti UDM-BEAST UniFi Dream Machine Beast 25 Gbps IPS/IDS Cloud Gateway

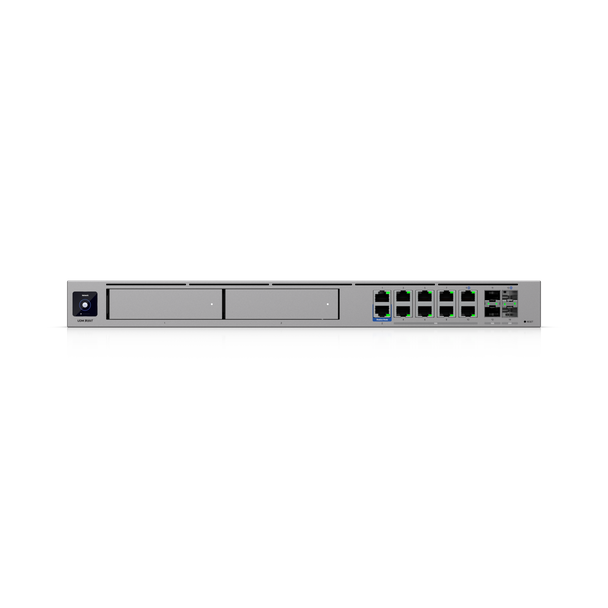

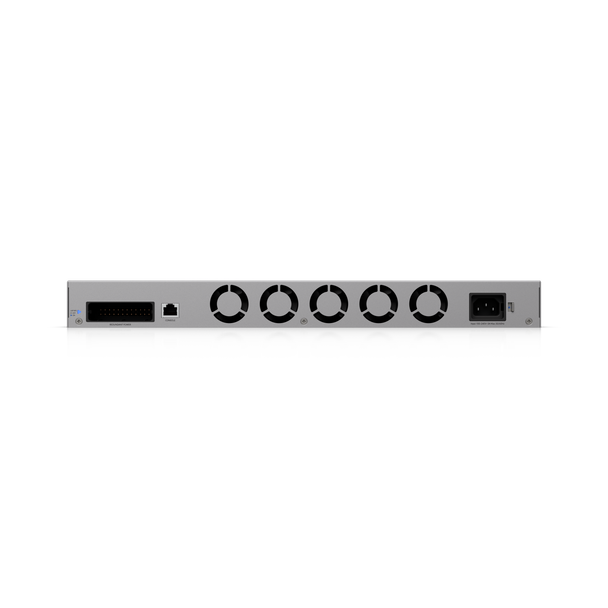

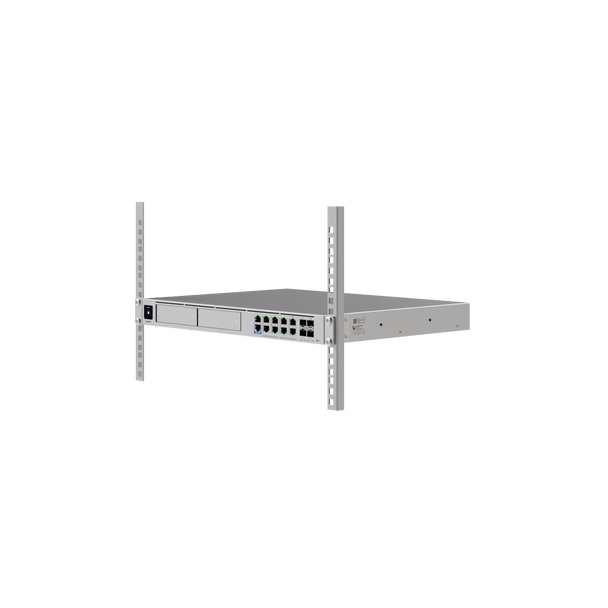

The Ubiquiti UDM-BEAST (UniFi Dream Machine Beast) is a hyperscale-class 1U rack-mount Cloud Gateway that consolidates enterprise-grade networking, security, and surveillance management into a single system. Powered by an octa-core ARM v9 processor at 2.1 GHz with 16 GB of system memory and a 128 GB integrated SSD, the UDM-BEAST delivers 25 Gbps IDS/IPS throughput, supports 7,500+ simultaneous clients, and manages 750+ UniFi devices without per-seat licensing fees. It runs the complete UniFi application suite including Network, Protect, Access, Talk, and Connect, making it the single pane of glass for large-scale enterprise and campus deployments.

The UDM-BEAST features an extensive port layout with 2 x 25G SFP28, 2 x 10G SFP+, 8 x 10 GbE RJ45, and 2 x 1 GbE RJ45 ports, supporting up to 8 WAN connections for multi-WAN load balancing and failover. Advanced security capabilities include a stateful firewall, application-aware Layer 7 firewall, deep packet inspection, zone-based filtering, content filtering, ad blocking, and 55,000+ IPS/IDS signatures via CyberSecure. VPN support covers Site Magic, IPsec, OpenVPN, WireGuard, L2TP, and Teleport zero-configuration VPN. Two 3.5 inch NVR HDD bays with a built-in 128 GB SSD enable local camera footage storage through UniFi Protect, supporting up to 100 HD, 60 2K, or 40 4K cameras. Shadow Mode (VRRP) gateway failover and DC power backup input provide enterprise-class redundancy.

Key Features:

• 25 Gbps IDS/IPS throughput with 55,000+ CyberSecure signatures; delivers hyperscale security inspection without performance compromise across all network traffic.
• 7,500+ simultaneous client capacity managing 750+ UniFi devices; scales to the largest enterprise, campus, and hospitality deployments in a single 1U appliance.
• Full UniFi application suite (Network, Protect, Access, Talk, Connect) included; eliminates the need for separate servers or software licenses across the entire infrastructure stack.
• 2 x 25G SFP28, 2 x 10G SFP+, 8 x 10 GbE RJ45 ports with up to 8 WAN connections; provides maximum uplink flexibility and multi-WAN load balancing for carrier-grade redundancy.
• Two 3.5 inch NVR HDD bays supporting UniFi Protect for up to 40 x 4K cameras; integrates physical security recording directly into the network infrastructure without additional hardware.
• Shadow Mode (VRRP) gateway failover with DC power backup input; ensures continuous network availability even during primary gateway or power failures.
• License-free SD-WAN with Site Magic, WireGuard, IPsec, OpenVPN, and Teleport VPN; provides comprehensive site-to-site and remote access VPN without recurring subscription costs.
• OSPF and BGP dynamic routing with advanced QoS and policy-based WAN routing; supports complex enterprise network topologies with traffic engineering.
• NDAA compliant with CE and FCC certifications; meets federal procurement and international regulatory requirements.
• Octa-core ARM v9 at 2.1 GHz, 16 GB RAM, 128 GB SSD; delivers the compute foundation for simultaneous security inspection, application hosting, and video management at scale.
