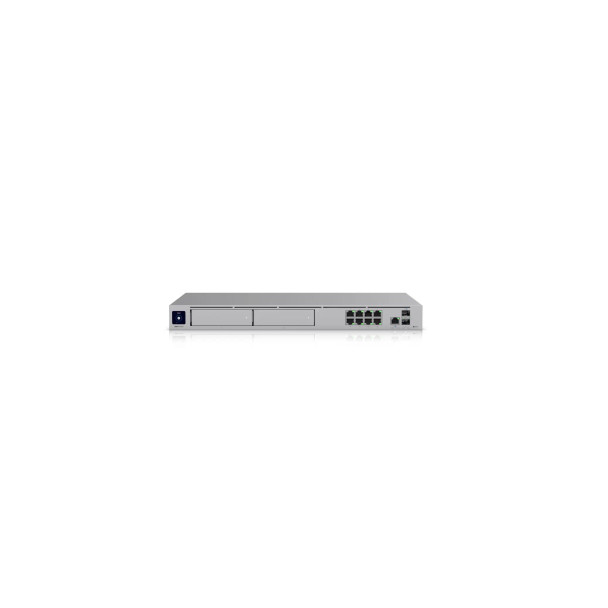

Ubiquiti UDM-PRO-MAX UniFi Dream Machine Pro Max with 5 Gbps IPS

Ubiquiti UDM-PRO-MAX UniFi Dream Machine Pro Max with 5 Gbps IPS

The Ubiquiti UDM-PRO-MAX represents the pinnacle of UniFi's integrated network and security appliance lineup, engineered for enterprise-scale deployments requiring maximum performance and redundancy. This 1U rack-mount gateway supports 200+ UniFi devices and 2,000+ simultaneous client connections while delivering 5 Gbps intrusion prevention throughput—maintaining wire-speed security even on multi-gigabit WAN connections. Built around a quad-core ARM Cortex-A57 processor running at 2.0 GHz with 8GB system memory and dual storage subsystems (32GB eMMC + 128GB integrated SSD), the UDM-PRO-MAX handles comprehensive network management, surveillance recording, access control, and VoIP services from a single consolidated platform.

The gateway features eight Gigabit Ethernet ports, one 2.5 GbE port, and two 10G SFP+ ports supporting up to eight WAN connections for sophisticated multi-WAN load balancing and failover configurations. Dual 3.5-inch hot-swappable NVR HDD bays provide redundant storage for UniFi Protect surveillance footage supporting up to 50 HD, 25 2K, or 15 4K cameras simultaneously, while the integrated 128GB SSD accelerates UI responsiveness and database operations. Advanced redundancy features include Shadow Mode (VRRP) gateway failover for seamless high-availability configurations and DC power backup input supporting USP-RPS redundant power systems. The 1.3-inch touchscreen display provides intuitive local management, while comprehensive security features encompass 55,000+ IDS/IPS signatures (CyberSecure subscription), application-aware Layer 7 firewall, zone-based filtering with geographic restrictions, and complete VPN suite supporting Site Magic, IPsec, OpenVPN, WireGuard, and L2TP protocols.

Key Features:

• 5 Gbps IPS Throughput: Delivers five times the intrusion prevention performance of standard gateways; maintains full multi-gigabit routing speeds with advanced security inspection enabled, eliminating the traditional security-versus-performance tradeoff.
• Dual 10G SFP+ Ports: Accommodates 10 Gbps fiber WAN connections and high-speed LAN uplinks; supports LACP port aggregation for 20 Gbps aggregate bandwidth to distribution switches in campus network architectures.
• Redundant NVR Storage System: Features dual 3.5-inch hot-swappable HDD bays for RAID-mirrored surveillance recording; ensures continuous video retention even during drive failures and enables zero-downtime storage maintenance.
• Shadow Mode High Availability: Implements VRRP-based gateway redundancy with automatic failover; maintains uninterrupted network connectivity during primary gateway failures or scheduled maintenance windows through seamless traffic transition.
• 200+ Device Management Capacity: Supports enterprise-scale UniFi deployments with 200+ access points, switches, and security appliances; consolidates network infrastructure management, eliminating the complexity and cost of multiple management platforms.
• Integrated 128GB SSD Acceleration: Enhances UI responsiveness and database query performance through dedicated solid-state storage; reduces configuration loading times and accelerates analytics processing for large-scale deployments.
• Comprehensive Application Suite: Runs Network, Protect (50 HD/25 2K/15 4K cameras), Access (150 hubs), Talk, and Connect applications simultaneously; centralizes all building infrastructure management from networking to surveillance, access control, and communications.
• BGP Dynamic Routing: Supports Border Gateway Protocol for advanced multi-homed ISP configurations; enables sophisticated traffic engineering, prefix filtering, and autonomous system peering for data center and carrier-grade deployments.
• DC Power Backup Input: Accepts USP-RPS redundant power supply connectivity; maintains operation during AC power failures through external battery-backed DC power systems, critical for 24/7 network uptime requirements.
