Description

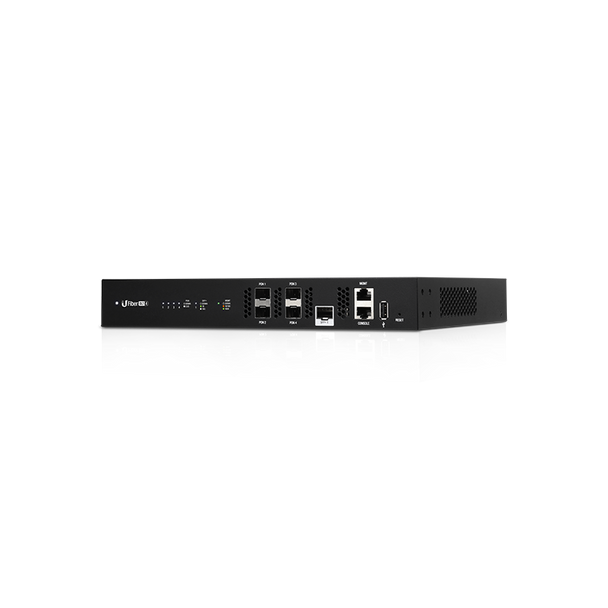

Ubiquiti UF-OLT-4 4-Port Optical Line Terminal
Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the UFiber OLT 4 - a fiber solution that anyone can deploy.
The OLT features four PON ports to connect up to 512 ONUs, and SFP+ port deliver up to 10 Gbps of uplink connectivity.
Key features:
- 4-Port GPON Optical Line Terminal
- 4 Gigabit Passive Optical Network Ports
- Supports up to 512 Clients (128 per PON Port)
- Up to 2.488 Gbps TX and 1.244 Gbps RX
- One 1G/10G SFP+ Ethernet Ports
- Flexible Layer 2/3 Management Features
- Ethernet port for management
- Console serial port for management
- 24V DC Input Option (Redundant or Stand-Alone)
|
UF-OLT-4 |
UF-OLT | |
|---|---|---|
| Power consumption | 35W (without SFP modules) | 40 W (without SFP modules) |
| Networking Interface | 4 PON ports and 1 SFP+ port | 8 PON ports and 2 SFP+ ports |
| Management interfaces | RJ45 Serial console port and RJ45 Ethernet for out-of-band management | RJ45 Serial console port and RJ45 Ethernet for out-of-band management |
| Concurrent clients | up to 512 UFiber ONUs (128 per PON port) | up to 1024 UFiber ONUs (128 per PON port) |
| Supported PON SFP modules | UF-GP-B+ (1 module included), UF-GP-C+ | UF-GP-B+ (1 module included), UF-GP-C+ |
| Supported ONUs/ONTs | UFiber Nano G, UFiber Loco | UFiber Nano G, UFiber Loco |
Downloads
Datasheet
Ubiquiti-UF-OLT-4-Datasheet-A1
Quick Start Guide
Ubiquiti-UF-OLT-4-Quick-Start-Guide-A1
Popular Search
Compatible products
Additional Information
|
Accessory Type:
|
Other
|
|
Color:
|
Black
|
|
Compliance:
|
NDAA Compliant
|
|
Warranty:
|
1-year Manufacturer Warranty
|
