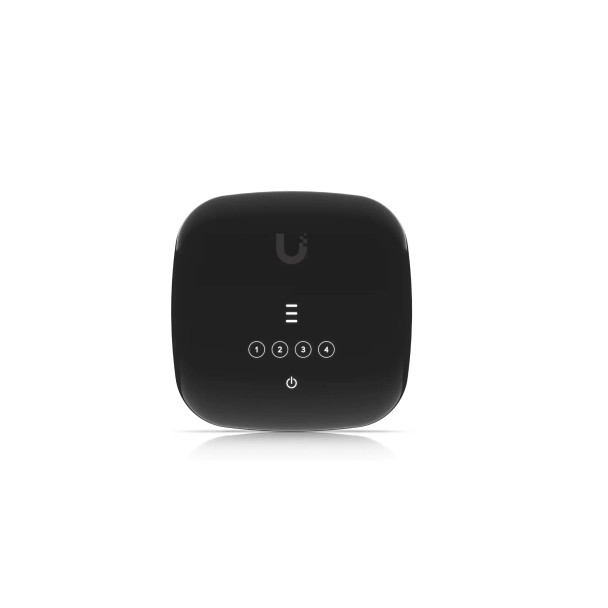

Ubiquiti UF-WIFI6 GPON CPE with WiFi 6
The Ubiquiti UF-WIFI6 is a GPON customer-premises equipment (CPE) with WiFi 6 support, combining a fiber WAN interface with dual-band 802.11ax wireless for downstream speeds up to 2.5 Gbps and upstream up to 1.2 Gbps. Featuring four Gigabit Ethernet LAN ports, 5 GHz and 2.4 GHz radios with 2x2 MIMO, and flexible power options including USB-C 5V DC and 24V passive PoE, the UF-WIFI6 is designed for reliable high-throughput fiber-to-the-premises deployments. Its UV-stabilized polycarbonate enclosure supports operation from -15 to 45°C, making it suitable for both indoor and outdoor installations. Management is handled via in-band PON and Ethernet, with a built-in web server, NAT, firewall, VLAN support, and remote firmware upgrade capabilities.
Key Features:
- WiFi 6 (802.11ax) dual-band radios with 1.2 Gbps on 5 GHz and 300 Mbps on 2.4 GHz — delivers high-throughput wireless connectivity for bandwidth-intensive applications.
- GPON WAN with 2.5 Gbps downstream and 1.2 Gbps upstream — maximizes fiber line performance for residential and commercial deployments.
- 4x Gigabit Ethernet LAN ports — provides wired connectivity for multiple devices without requiring an additional switch.
- USB-C 5V DC and 24V passive PoE power options — enables flexible installation in locations with or without dedicated power outlets.
- NDAA compliant — meets federal procurement requirements for security-sensitive deployments.
- Built-in firewall, NAT, VLAN, and remote management — simplifies network administration and reduces on-site maintenance visits.
- UV-stabilized polycarbonate enclosure, operating range -15 to 45°C — suitable for challenging installation environments.
Additional Information
|
Accessory Type:
|
Wireless Access Point
|
|
Compliance:
|
NDAA Compliant
|
|
Dimensions:
|
5.55x5.57x1.25in
|
|
Max Power Consumption:
|
11 Watts
|
|
Number of Ports:
|
4 Ports
|
|
Power Supply:
|
USB Type-C
PoE
|
