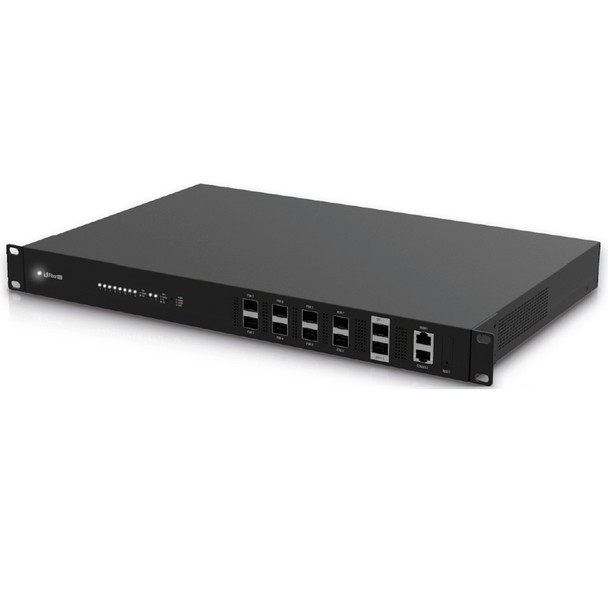

Ubiquiti UF-OLT UFiber GPON Optical Line Terminal

Ubiquiti UF-OLT UFiber GPON Optical Line Terminal

Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the U Fiber OLT - a fiber solution that anyone can deploy.

U Fiber offers Internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream.

The U Fiber network is intelligently managed using the included UNMS™ (Ubiquiti Network Management System) controller. U Fiber devices consist of the U Fiber OLT (deployed at the provider premises) and the U Fiber Nano™G consumer premises equipment ONUs.

The U Fiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity. The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

Key features of Ubiquiti UF-OLT

• Power consumption: 40 W (without SFP modules)
• Networking Interface: 8 PON ports and 2 SFP+ ports
• Management interfaces: RJ45 Serial console port and RJ45 Ethernet for out-of-band management
• Concurrent clients: Up to 1024 Nano Gs (128 per PON port)
• Supported PON SFP modules: UF-GP-B+ (1 module included)
• GPON Range: Up to 20 km Link
• GPON Speeds: 2.488 Gbps Upstream (TX),
• 1.244 Gbps Downstream (RX)
• Wavelengths: 1490 nm Upstream (TX),
• 1310 nm Downstream (RX)
• Power Method:
  • AC/DC Power Module (Included)
  • DC/DC Power Module (Optional)
  • Mounting: 1U Rack-Mountable (Optional)
