Ubiquiti UniFi UC-EV-STATION-LITE-US 11 kW Level 2 EV Charging Station

Ubiquiti UniFi UC-EV-STATION-LITE-US 11 kW Level 2 EV Charging Station

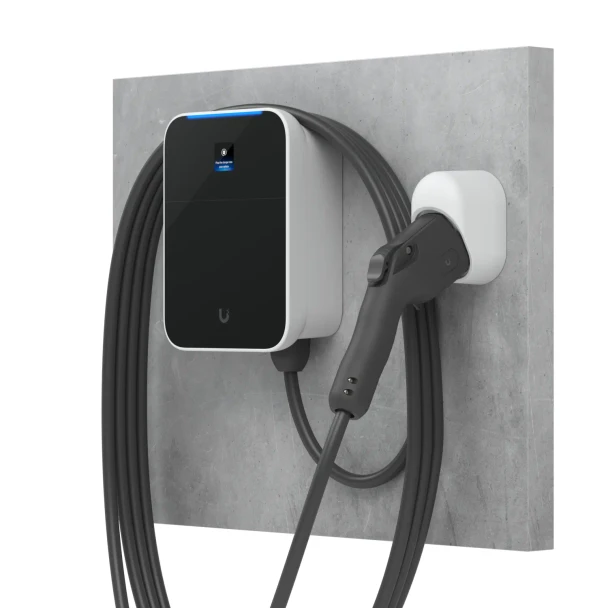

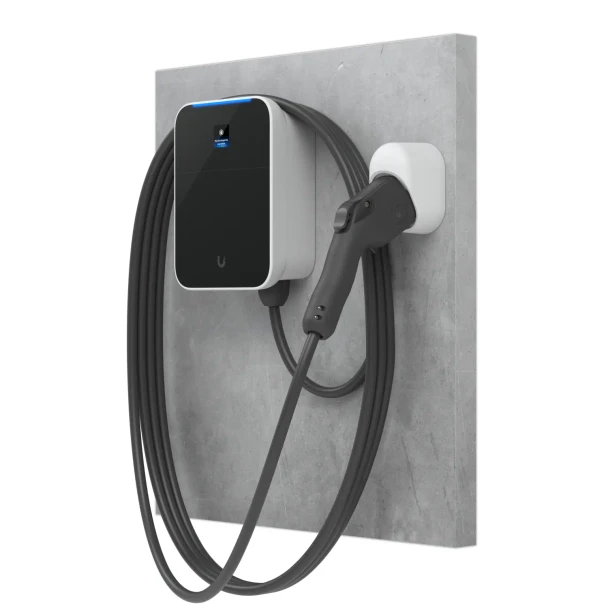

The Ubiquiti UniFi UC-EV-STATION-LITE-US is a weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control, designed for scalable deployment across homes, offices, and commercial parking areas. It charges through an SAE J1772 connector on a 7 m (23 ft) cable and can be wall mounted or installed on a stand.

Power input and output are rated at 200-240V ~ 50A, 50/60Hz, single-phase. The station supports hardwired installation on 20A to 70A circuits, or plug-in installation on 20A to 50A circuits, with a maximum load of up to 50A. A polycarbonate enclosure with Type 3R weatherproofing and a -40°F to 122°F operating range allows reliable outdoor use.

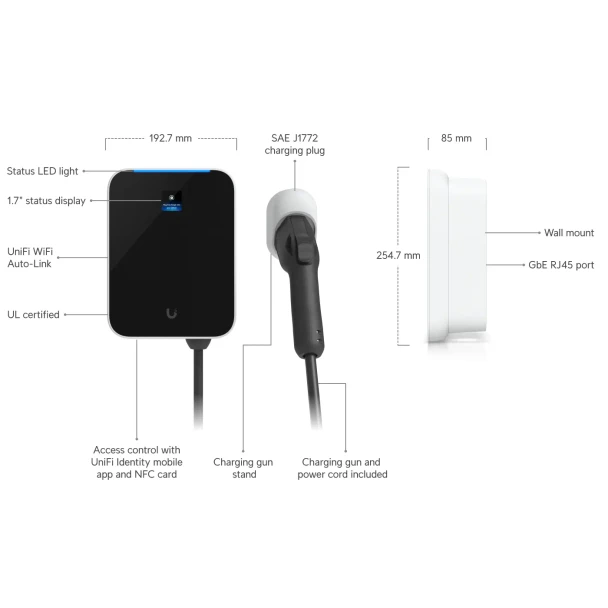

A dual-core Arm Cortex-A53 1 GHz processor drives the unit, and a 1.7" status display shows charging state at a glance. Management is handled through UniFi Connect (version 3.14.4 and later) and the UniFi Connect iOS and Android apps (version 2.18 and later). Connectivity includes a GbE RJ45 port, WiFi, Bluetooth 5.0, and USB-C. The unit is NDAA compliant and certified to FCC, IC, and UL standards.

Key Features:

• 11 kW Level 2 charging; delivers faster charging than standard household outlets.
• SAE J1772 connector with 7 m (23 ft) cable; reaches most parking positions without repositioning the vehicle.
• Hardwired (20A-70A) or plug-in (20A-50A) installation; fits a wide range of electrical setups.
• Type 3R weatherproof polycarbonate enclosure; suitable for outdoor installation.
• -40°F to 122°F operating temperature; performs reliably in harsh climates.
• GbE, WiFi, Bluetooth 5.0 and USB-C connectivity; offers flexible network integration.
• UniFi Connect management with iOS and Android apps; enables centralized control of charging access.
• NDAA compliant with FCC, IC and UL certifications; meets regulatory and safety requirements.
