Description

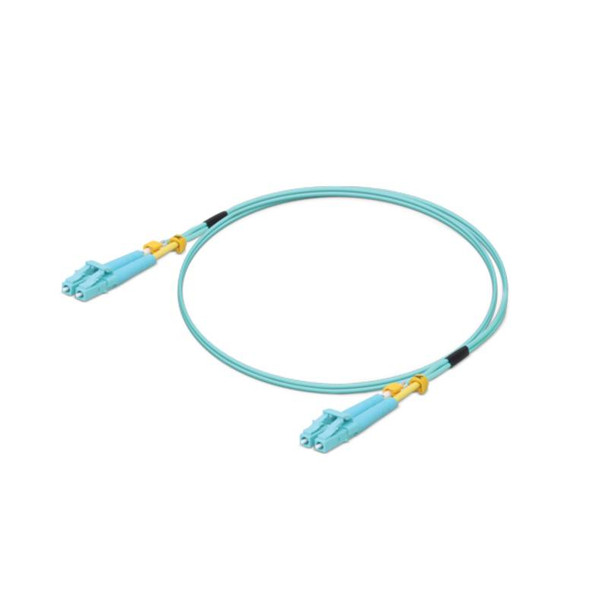

Ubiquiti UOC-3 OM3 Duplex LC 10G Multi‑mode Fiber Patch Cable, SR, 3m
Scale your fiber network using our flexible and lightweight fiber patch cables. The 10G multi‑mode fiber patch cables are ideal for indoor telecommunications and data networks using our routing and switching products, such as the EdgeRouter, EdgeSwitch, and UniFi Switch. Available in 0.5, 1, 2, 3 and 5 meter lengths.
Key Features:
- 3m length
- LC to LC connector
- Fiber mode: 50 / 125 μm
- Fiber type: Duplex
Downloads
Datasheet
Ubiquiti-UOC-3-Datasheet-A1
Popular Search
Specifications
| Connector | LC-LC |
| Fiber Mode | 50 / 125 μm |
| Fiber Type | Duplex |
| Cable Jacket | PVC |
| Cable Standard | OM3 |
| Insertion Loss | ≤ 0.3 dB |
| Polish | UPC to UPC |
| Jacket OD | 2.0 mm |
| Wavelength | 850 / 1310 nm |
| Jacket Color | Aqua |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1000 Times Mating) |
| Return Loss | ≤ 50 dB |
| Operating Temperature | -40 to 75° C (-40 to 167° F) |
