Description

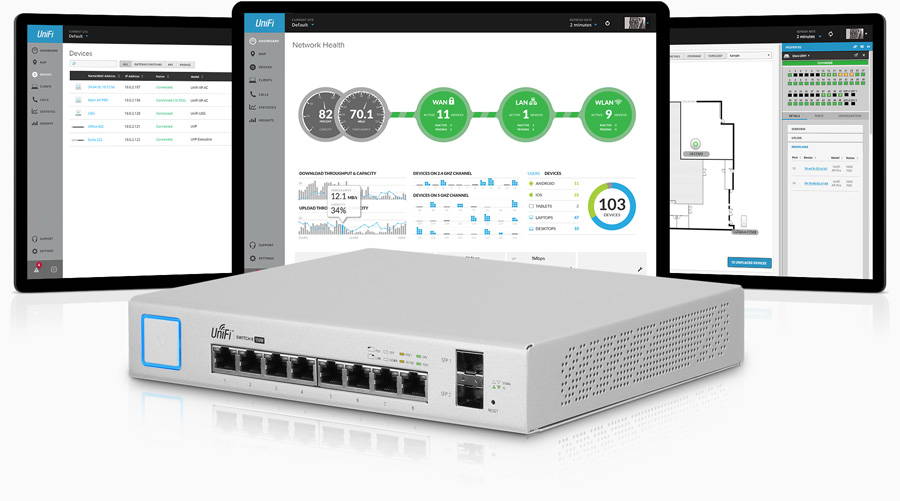

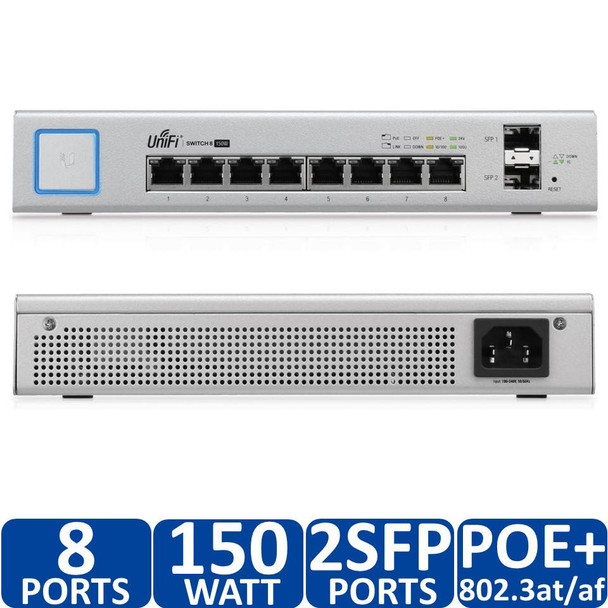

Ubiquiti US-8-150W-US UniFi Network Switch
Ubiquiti UniFi 8 Port 150 Watt Managed PoE+ Gigabit Switch ensures well-rounded user interface and support for fiber connectivity. This device is a fully managed PoE+ Gigabit switch that allows smear switching for advanced and growing networks. The UniFi technology also offers Layers-2 switching features and protocols, and Layer-3 routing ability.
Key Features:
- (8) Gigabit RJ45 Ports
- (2) SFP Ports
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Maximum Power Consumption: 150W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Desktop-Mountable (Do not physically stack the US-8-150W.)
- Operating Temperature: 5 to 40° C (23 to 104° F)
Popular Search
Specifications
US-8-150W | |
---|---|
Dimensions | 204 x 43 x 235 mm (8.03 x 1.69 x 9.25") |
Weight With Mount Brackets | 1.65 kg (3.64 lb) 1.73 kg (3.81 lb) |
Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports |
Management Interfaces | Ethernet In-Band |
Power Method | 100-240VAC/50-60 Hz, Universal Input |
Power Supply | AC/DC, Internal, 150W DC |
Max. Power Consumption Including PoE Output Excluding PoE Output | 150W 20W |
Processor Specs | ARM Cortex-A9 400 MHz |
Memory Information | 256MB DDR3 |
Code Storage | 32 MB NOR Flash |
Line Rate | 10 Gbps, Non-Blocking |
LEDs System RJ45 Data Ports SFP Data Ports | Status PoE; Link/Speed/Activity Link/Speed/Activity |
PoE Output (RJ45 Ports) | IEEE 802.3at/af 2-Pair (+1, 2; -3, 6); Passive 24V/0.7A 2-Pair (+4, 5; -7, 8) |
ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
Shock and Vibration | ETSI300-019-1.4 Standard |
Operating Temperature | -5 to 45° C (23 to 113° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
Compatible products
Additional Information
Accessory Type: |
PoE Switch
|
NDAA Compliance: |
NDAA Compliant
|
Number of Ports: |
8
|
Power Budget: |
150 Watt
|
Product Series: |
UniFi
|
Warranty: |
1-year Manufacturer Warranty
|
