Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity

Brand: Ubiquiti
Part Number: US-8-5
Write a Review
Check other similar products:
Out of Stock!
  • Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity
  • Ubiquiti US-8-5
  • Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity
  • Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity
  • Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity
  • Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity
  • Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity
  • Ubiquiti US-8-5 UniFi Fully Managed Gigabit Network Switch, 5-Pack, 8-Port, 16Gbps Switching Capacity
  • 1 Year Limited Manufacturer Warranty
Free shipping over $300 Free Shipping
Technical Support Technical Support
1 Year Warranty 1 Year Warranty
  • Power Budget : 12 Watt
  • Number of Ports : 8 Ports

Description

Ubiquiti US-8-5 UniFi Network Switch - 5-Pack 8-Port Gigabit PoE Compliant Managed Switch

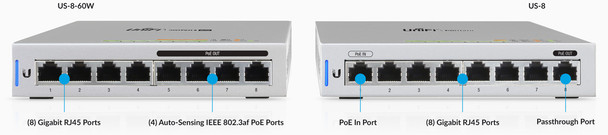

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.The US-8-5 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.

The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.

The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8Gbps.

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16Gbps.

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Key Features:

  • (8) Gigabit RJ45 Ports
  • (1) PoE Passthrough Port
  • Non-Blocking Throughput: 8Gbps
  • Switching Capacity: 16Gbps
  • Forwarding Rate: 11.9 Mpps
  • Maximum Power Consumption: 12W
  • PoE or DC Input Option
  • Available in Single-Pack and 5-Pack

Note:Power Supply Not Included with 5-Pack

Downloads

Specifications

Dimensions148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
Weight432 g (15.24 oz)
Networking Interfaces(8) 10/100/1000 Mbps RJ45 Ports
PoE In (Port 1)
PoE Mode 1:
PoE Mode 2:

802.3af/at (Pins 1, 2+; 3, 6-)
Passive 48V (Pins 4, 5+; 7, 8-)
PoE Out (Port 8)
PoE Mode 1:
PoE Mode 2:
DC Input Mode:

48V (Pins 1, 2+; 3, 6-)
Passive 48V (2-Pair Pins 4, 5+; 7, 8-)
48VDC (Pins 1, 2+; 3, 6-)
Power Method(1) DC 48V, Max. 1.25A
(1) PoE Input, 802.3af/at (Pins 1, 2+; 3, 6-)
Power SupplyExternal AC/DC Adapter: 48V, 0.5A
Max. Power Consumption12W (Excluding PoE Output)
Max. PoE Wattage per PortPoE Mode 1: 12W @ 802.3at
PoE Mode 2: 12W @ 48V
DC Input Mode: 12W @ 48V
Passive PoE Voltage RangeDepends on Power Source
Line Rate8 Gbps, Non-Blocking
LEDs
System
RJ45 Data Ports

Status
PoE; Link/Speed/Activity
ESD/EMP Protection± 24kV Air, ± 24kV Contact
Operating Temperature-5 to 45° C (23 to 113° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC
View AllClose

Compatible products

Additional Information

Accessory Type:
Switch
Compliance:
NDAA Compliant
Number of Ports:
8 Ports
Power Budget:
12 Watt
Product Series:
Ubiquiti UniFi Series
Switch Type:
PoE Switch
Warranty:
1-year Manufacturer Warranty
