Ubiquiti US-8 UniFi Network Switch - 8-Port Gigabit Managed Switch (Non-POE out)
Description
Ubiquiti US-8 UniFi Network Switch - 8-Port Gigabit PoE Compliant Managed Switch
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.

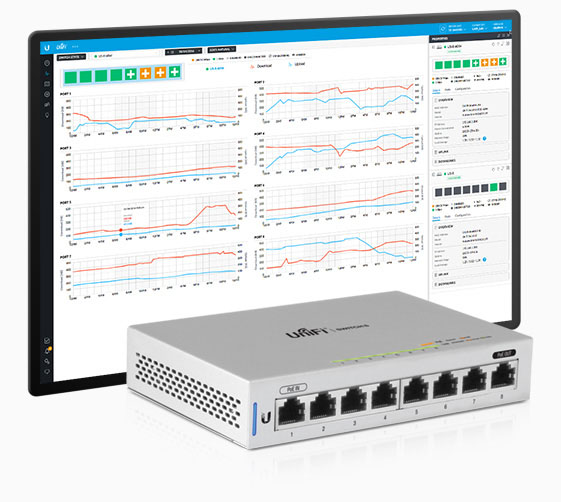

The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Key Features:

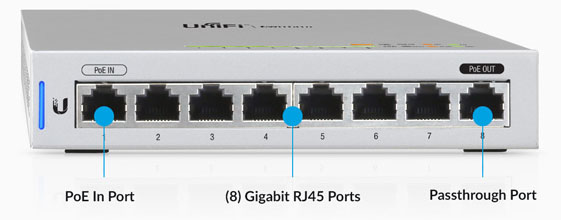

- (8) Gigabit RJ45 Ports
- (1) PoE Passthrough Port
- Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Maximum Power Consumption: 12W
- PoE or DC Input Option


Downloads
Datasheet
ubiquiti-UniFi_Switch_8_DS-A1.pdf
Popular Search
Specifications
Dimensions | 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21") |
Weight | 432 g (15.24 oz) |
Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
PoE In (Port 1) PoE Mode 1: PoE Mode 2: | 802.3af/at (Pins 1, 2+; 3, 6-) Passive 48V (Pins 4, 5+; 7, 8-) |
PoE Out (Port 8) PoE Mode 1: PoE Mode 2: DC Input Mode: | 48V (Pins 1, 2+; 3, 6-) Passive 48V (2-Pair Pins 4, 5+; 7, 8-) 48VDC (Pins 1, 2+; 3, 6-) |
Power Method | (1) DC 48V, Max. 1.25A (1) PoE Input, 802.3af/at (Pins 1, 2+; 3, 6-) |
Power Supply | External AC/DC Adapter: 48V, 0.5A |
Max. Power Consumption | 12W (Excluding PoE Output) |
Max. PoE Wattage per Port | PoE Mode 1: 12W @ 802.3at PoE Mode 2: 12W @ 48V DC Input Mode: 12W @ 48V |
Passive PoE Voltage Range | Depends on Power Source |
Line Rate | 8 Gbps, Non-Blocking |
LEDs System RJ45 Data Ports | Status PoE; Link/Speed/Activity |
ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
Operating Temperature | -5 to 45° C (23 to 113° F) |
Operating Humidity | 5 to 95% Noncondensing |
Certifications | CE, FCC, IC |
Compatible products
Additional Information
Accessory Type:
|
Switch
|
NDAA Compliance:
|
NDAA Compliant
|
Number of Ports:
|
8
|
Product Series:
|
UniFi
|
Switch Type:
|
PoE Switch
|
Warranty:
|
1-year Manufacturer Warranty
|
