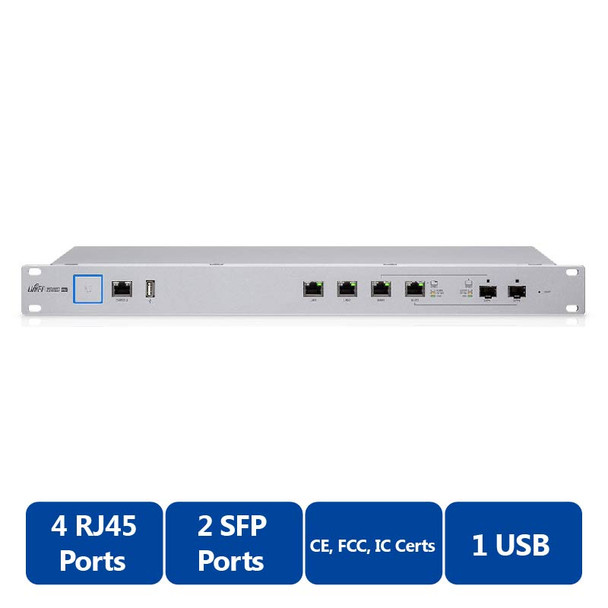

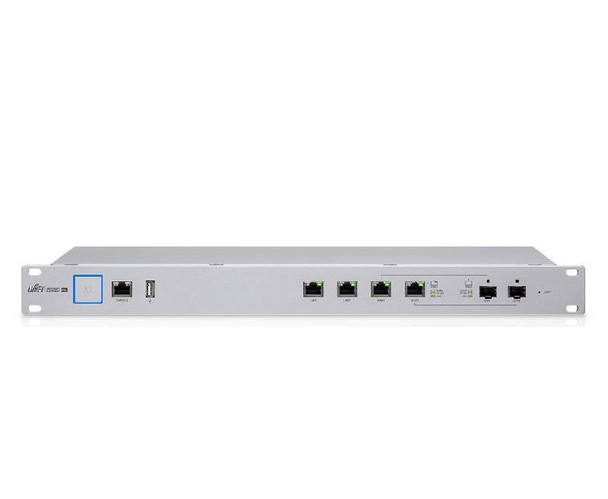

Ubiquiti USG-PRO-4-US 4-Port Enterprise Gateway Router with Gigabit Ethernet

(No reviews yet) Write a Review
SKU:
USG-PRO-4-US
UPC:
810354021572
MPN:
USG-PRO-4-US
Maximum Purchase:
1000 units
in High Demand!
  • Ubiquiti USG-PRO-4-US 4-Port Enterprise Gateway Router with Gigabit Ethernet
  • Ubiquiti USG-PRO-4-US 4-Port Enterprise Gateway Router with Gigabit Ethernet
  • Ubiquiti USG-PRO-4-US - 4 Port
  • 1 Year Limited Manufacturer Warranty
$342.34
Frequently bought together:

Description

Ubiquiti USG-PRO-4-US 4-Port Enterprise Gateway Router

Build your secure and flexible network with Ubiquiti Networks® UniFi® Security Gateway PRO, part of the UniFi Enterprise System. The Unifi Security Gateway PRO is a high-performance Gigabit router, delivering robust security and advanced routing features. Two combination SFP/RJ45 ports provide fiber connectivity options capable of speeds of up to 1 Gbps.

Advanced hardware-accelerated packet forwarding delivers 1+ million packets per second performance. The Unifi Security Gateway PRO offers four independent Ethernet ports with a full line rate of 4 Gbps.

The Ubiquiti USG-PRO-4-US connects Network Switches to the internet. It requires a management station computer running the UniFi Controller software.

Key Features:

  • (2) Gigabit RJ45 Ethernet Ports
  • (2) Gigabit Combination RJ45/SFP Ports
  • 4 Gbps Full Line Rate Layer 3 Forwarding
  • 1 Console port, 1 USB
  • 1+ Million Packets per Second for 64-Byte Packets
  • Sophisticated and Intuitive Graphical UI Control
  • Integrated and Managed by UniFi Controller Software

Ubiquiti Suffix Explanation: if a Ubiquiti product has a -US suffix at the end it means that it follows FCC regulations and is locked into their frequencies. It will only work on channels approved by the FCC. Products without the -US suffix can be used anywhere, but do be sure to understand the legal issues if you are inside the U.S. and trying to use non-approved channels with a non-US product.

View AllClose

Specifications

Dimensions135 x 135 x 28.3 mm
(5.32 x 5.32 x 1.11")
Weight366 g
(12.9 oz)
Max. Power Consumption7W
Power Supply12VDC, 1A Power Adapter (Included)
Power Input9 to 24VDC, Supported Voltage Range
LEDs
System
Serial Console
Port Data Ports

Status
Power
Speed/Link/Activity
Networking Interfaces
Serial Console Port
Data Ports

(1) RJ45 Serial Port
(3) 10/100/1000 Ethernet Ports*
Layer 3 Forwarding Performance
Packet Size: 64 Bytes
Packet Size: 512 Bytes or Larger

1,000,000 pps
3 Gbps (Line Rate)
ProcessorDual-Core 500 MHz, MIPS64 with Hardware Acceleration for Packet Processing
System Memory512 MB DDR2 RAM
On-Board Flash Storage2 GB
CertificationsCE, FCC, IC
Wall‐MountableYes
Operating Temperature‐10 to 45° C (14 to 113° F)
Operating Humidity10 to 90% Noncondensing
View AllClose

Additional Information

Manufacturer:
Ubiquiti
Product Type:
Accessories
Accessory Type:
Router
Warranty:
1-year Manufacturer Warranty
Number of Ports:
4
Power Budget:
40 Watt
Color:
White
