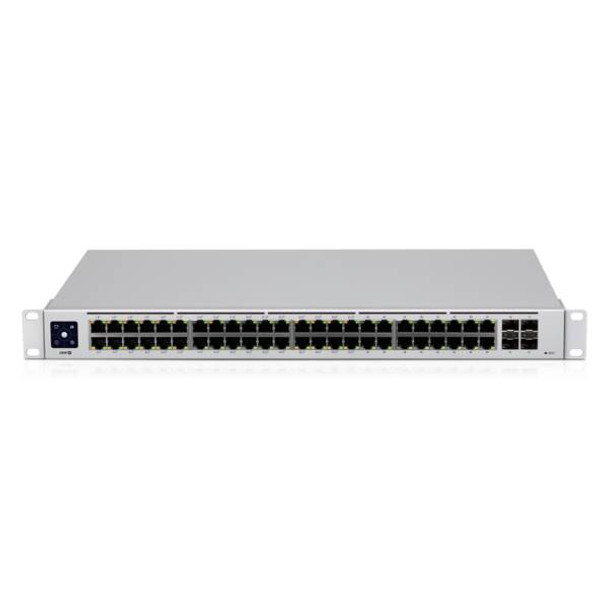

Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports

Brand: Ubiquiti
Part Number: USW-48-POE
Write a Review
Out of stock!
  • Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
  • Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
  • Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
  • Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
  • Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
  • Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
  • Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
$599.99
Free shipping over $300 Free Shipping
Technical Support Technical Support
1 Year Warranty 1 Year Warranty

Customers Also Viewed

LTS LTN8716K-P16 16 Channel 4K Network Video Recorder

8 Megapixel (4K) 16 Channel Max. 12 TB Storage Capacity 16 PoE Ports Network Video Recorder

Brand: LTS Security

Part Number: LTN8716K-P16
$467.74
  • Compression : MPEG4, H.265, H.264 Plus, H.264,
  • Pre-Installed Storage : No HDD included
  • Video Output : 1x VGA 1x HDMI
  • Max. Recording Resolution : 8MP (4K)
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 12 TB Storage Capacity
  • Dimensions : 380 x 315 x 53 mm (15 x 12.4 x 2.0 in)
  • Color : Black
  • Number of PoE Ports : 16 PoE Ports
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Black Black
LTS LTB03-W Junction Box for CMHT27xx

LTS LTB03-W Junction Box for CMHT27xx

Brand: LTS Security

Part Number: LTB03-W
$28.60
  • Dimensions : 126.7 x 35 mm (4.99 x 1.38 in)
  • Color : White
  • Material : Aluminum
  • Mount Type : Junction Box
Mount & Bracket Mount & Bracket
White White
Aluminum Aluminum

Description

Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports

48-Port managed PoE switch with (48) Gigabit Ethernet ports including (32) 802.3at PoE+ ports, and (4) SFP ports. Powerful second-generation UniFi switching.

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3" touch LCM to provide status

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Key Features:

  • (48) Gigabit Ethernet Ports including (32) 802.3at PoE+
  • (4) 1G SFP Ports
  • 1.3" touch LCM
  • Managed by UniFi Controller
  • 240W Power supply

Managed by UniFi Network Controller version: 5.12.32 or higher

Ubiquiti USW-48-POE UniFi Switch 48 PoE ports including 32 802.3at PoE+ ports and 4 SFP ports
All Security BrandsClose

Specifications

Dimensions442.4 x 285 x 43.7 mm
(17.42 x 11.22 x 1.72")
Weight
With Rackmount Brackets
4.52 kg (9.97 lb)
4.61 kg (10.16 lb)
Interfaces
Networking

Management

(48) 10/100/1000 RJ45 Ports
(4) 1G SFP Ethernet Ports
Ethernet In-Band
Power Method100-240VAC, 50/60 Hz, Universal Input
Power SupplyAC/DC, Internal, 240W
Supported Voltage Range100 to 240VAC
Max. Power Consumption (Excluding PoE Output)195W
LEDs
RJ45 Data Ports
SFP Data Ports

PoE; Speed/Link/Activity
Link/Activity
ESD/EMP ProtectionAir: ± 16 kV, Contact: ± 12 kV
Shock and VibrationETSI300-019-1.4 Standard
Operating Temperature-5 to 40° C (23 to 104° F)
Operating Humidity10 to 90% Noncondensing
CertificationsCE, FCC, IC
POE
PoE Interfaces
Ports 1-32

POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at

32W
Voltage Range 802.3af Mode44-57V
Voltage Range 802.3at Mode50-57V
All Security BrandsClose

Compatible products

Additional Information

Accessory Type:
PoE Switch
NDAA Compliance:
NDAA Compliant
Product Series:
UniFi
Warranty:
1-year Manufacturer Warranty
