Description

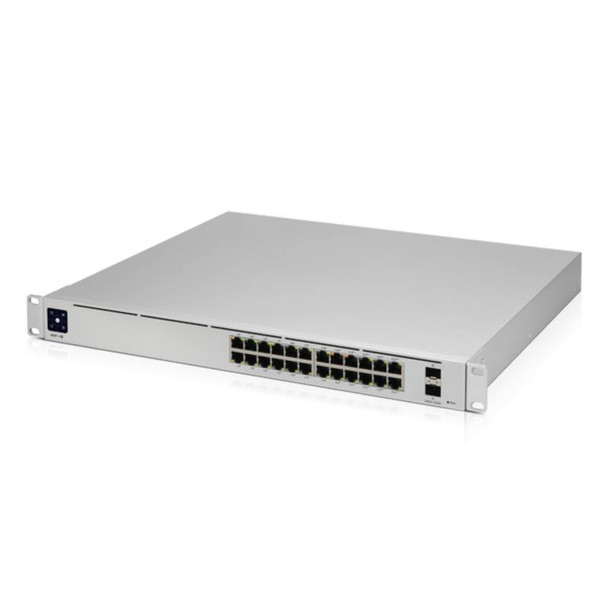

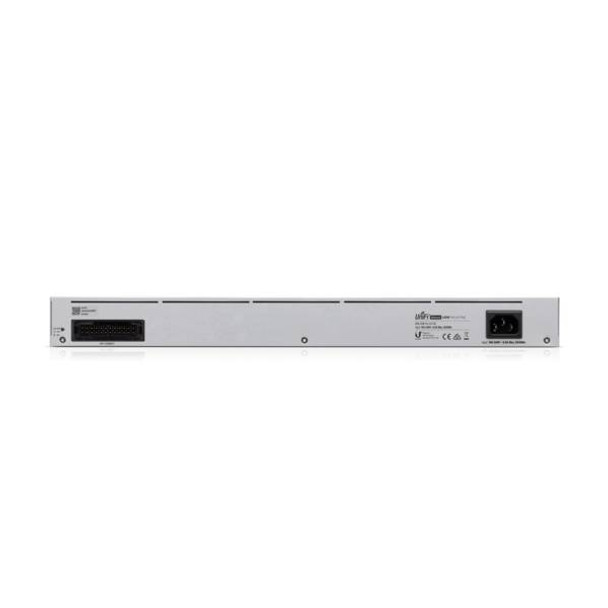

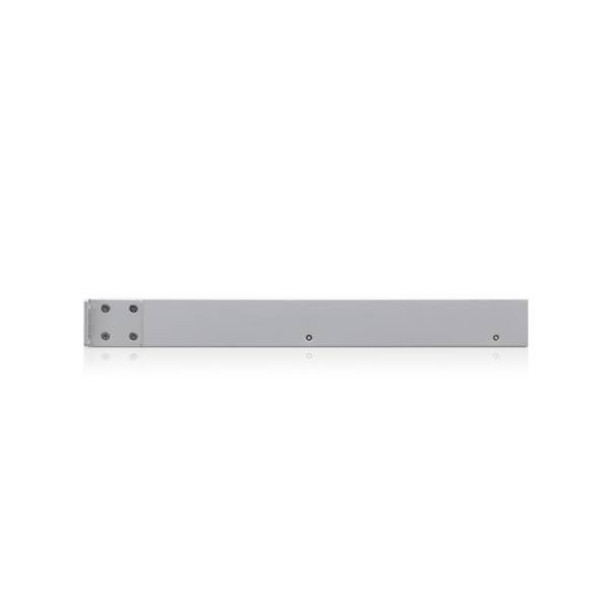

Ubiquiti USW-Pro-24-POE UniFi PRO 24-port Switch with (2) 10 GB SFP+ ports
24-port switch with (16) 802.3at PoE+ ports, (8) 802.3bt PoE++ ports, and (2) 10 GB SFP+ ports. Powerful second-generation UniFi switching.
UniFi Switch Pro 24 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (16) 802.3at (PoE+) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.The UniFi Switch Pro 24 PoE is the ideal access layer switch for any UniFi solution it combines up to 400W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Key Features:
- (8) Gigabit RJ45 802.3bt PoE++ ports
- (16) Gigabit RJ45 802.3at PoE+ ports
- (2) 10G SFP+ ports
- Layer 2 and Layer 3 features
- 400W maximum PoE power
- UniFi SmartPower RPS DC input
- Near-silent cooling
- 1.3" touchscreen display
- Managed by UniFi Network Controller
Downloads
Popular Search
Specifications
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight With Rackmount Brackets | 4.30 kg (9.48 lb) 4.39 kg (9.68 lb) |
| Interfaces Networking Management | (24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Power Method Universal Input USP RPS DC Input | 100-240VAC/50-60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Supported Voltage Range | 100 to 240VAC |
| Max. Power Consumption (Excluding PoE Output) | 50W |
| LEDs System RJ45 Data Ports SFP Data Ports | Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Certifications | CE, FCC, IC |
| SOUND LEVEL* | |
|---|---|
| 25% PoE Load, 25° C Room Temperature | 0.9 dBr |
| 50% PoE Load, 25° C Room Temperature | 7.3 dBr |
| 100% PoE Load, 40° C | 18.8 dBr |
| POE | |
| PoE Interfaces Ports 1-16 Ports 17-24 | POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt | 32W 64W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at Mode | 50-57V |
Compatible products
Additional Information
|
Accessory Type:
|
Switch
|
|
Certifications:
|
CE
FCC
IC
|
|
Compliance:
|
NDAA Compliant
|
|
Max Power Consumption:
|
50 Watts
|
|
Power Budget:
|
400 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Product Series:
|
Ubiquiti UniFi Series
|
|
Switch Type:
|
PoE Switch
|
|
Warranty:
|
1-year Manufacturer Warranty
|
