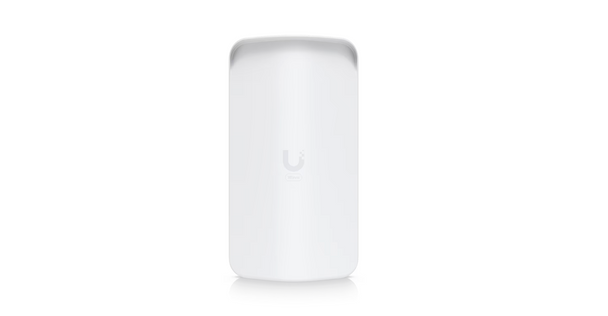

Ubiquiti Wave-AP-Gen2 60 GHz PtMP Access Point with WiFi 6 Backup and 31-Client Capacity

Ubiquiti Wave-AP-Gen2 60 GHz PtMP Access Point with WiFi 6 Backup and 31-Client Capacity

The Ubiquiti Wave-AP-Gen2 is a high-performance 60 GHz point-to-multipoint (PtMP) access point powered by advanced Wave Technology and Wave AI features. Featuring a quad-core ARM Cortex-A53 processor at 1.4 GHz with 512 MB memory, this device delivers impressive 5.4 Gbps total throughput over 57-71 GHz spectrum with 20 dBi antenna gain and wide 90° azimuth coverage. The sectoral antenna design with narrow 7° elevation beamwidth provides optimal coverage for up to 31 simultaneous clients with ranges up to 6 km when connecting to Wave Pro or Wave Long-Range stations, 4 km with Wave Nano, and 0.9 km with Wave Pico. Advanced modulation schemes (16QAM, QPSK) with channel bandwidths of 2160, 1080, and 540 MHz ensure reliable high-speed connectivity across multiple clients.

Designed for professional outdoor deployments, the Wave-AP-Gen2 features dual networking interfaces: 1× 2.5 GbE RJ45 port and 1× 10G SFP+ port for maximum flexibility and throughput. WiFi 6 (802.11ax) backup radio operating on 5 GHz (5150-5875 MHz worldwide) with 13 dBi dual-linear polarized antenna and 95° azimuth beamwidth ensures seamless failover. The robust enclosure combining UV-stabilized polycarbonate and aluminum alloy achieves IPX6 weatherproofing and operates in extreme temperatures from -40°C to 60°C (-40°F to 140°F). Wind loading capacity of 109.8 N at 200 km/h (25 lbf at 125 mph) ensures stability in harsh conditions. Powered by 48V DC 0.65A 2.5 GbE PoE adapter (included) with passive PoE support, consuming 24W maximum. Built-in GPS enables precise synchronization. Managed through UISP application (v2.4.205+) with advanced features including Wave AI optimization, antenna alignment tools, and comprehensive network utilities. NDAA compliant with FCC, IC, CE certifications.

Key Features:

• 60 GHz sectoral coverage: 5.4 Gbps throughput with 20 dBi antenna gain, 90° azimuth beamwidth for 31-client capacity
• Dual high-speed interfaces: 2.5 GbE RJ45 + 10G SFP+ ports for maximum network flexibility and aggregate throughput
• WiFi 6 backup radio: 802.11ax on 5 GHz with 13 dBi antenna and 95° coverage for seamless failover
• Extended range capability: up to 6 km with Wave Pro/Long-Range, 4 km with Wave Nano, GPS-enabled synchronization
• Professional outdoor design: -40°C to 60°C operation, IPX6 rating, aluminum/polycarbonate enclosure, 200 km/h wind resistance
