Description

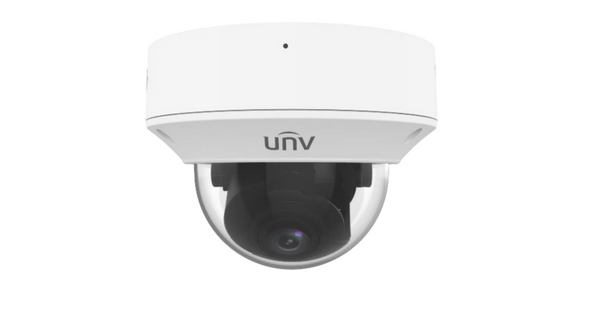

Uniview IPC3235SB-ADZK-I0 5MP Outdoor Dome IP Security Camera with 2.7-13.5mm Lens and Built-In IR
The Uniview IPC3235SB-ADZK-I0 is a 5MP HD LightHunter IR varifocal dome network camera built for outdoor environments demanding both high image quality and strong low-light performance. Featuring Uniview's LightHunter technology, the 1/2.7" CMOS sensor achieves a minimum color illumination of just 0.002 lux (F1.2, AGC ON), delivering usable color images in near-complete darkness. The 2.7–13.5mm motorized varifocal lens with autofocus provides flexible coverage from a 106° wide angle down to a 30° telephoto view, supporting detection ranges up to 303m at the tele end.
The IPC3235SB-ADZK-I0 supports 120dB true WDR for clear imaging in high-contrast lighting conditions, along with Smart IR up to 40m (131ft) at 850nm. Dual-stream compression via Ultra 265, H.265, H.264, and MJPEG keeps bandwidth and storage requirements low. Built-in microphone, 1-in/1-out audio, and 1-in/1-out alarm interfaces add versatility for integrated security solutions. Up to 256GB microSD edge storage ensures continuous local recording. Rated IP67 and IK10, and operating from -30°C to +60°C, the camera is well-suited for demanding outdoor installations. Powered via PoE (IEEE 802.3af) or 12VDC.
Key Features:
- 5MP resolution with 1/2.7" CMOS and LightHunter technology; delivers 0.002 lux color sensitivity for high-quality imaging in extremely low-light environments.
- 2.7–13.5mm motorized varifocal lens with autofocus; provides flexible remote focus and zoom adjustment across a wide coverage range.
- 120dB true WDR; produces clear, balanced images in scenes with strong backlight or extreme lighting contrast.
- Smart IR up to 40m (131ft); ensures reliable night vision coverage for medium-range outdoor areas.
- Ultra 265/H.265/H.264/MJPEG compression; significantly reduces bandwidth and storage requirements without compromising image quality.
- IP67 and IK10 rated, operating from -30°C to +60°C; built for reliable year-round outdoor and vandal-resistant deployments.
- Built-in mic, 1-in/1-out audio, 1-in/1-out alarm interfaces; enables integration with broader security and notification systems.
- Up to 256GB microSD edge storage with PoE (802.3af) or 12VDC power; offers flexible installation and local recording redundancy.
Downloads
Popular Search
Additional Information
|
Aperture:
|
F1.2
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
Auto (ICR)
|
|
Dimensions:
|
ø5.83x4.39in
|
|
Lens Size:
|
2.7-13.5mm
|
|
Lens Type:
|
Motorized Varifocal Lens
|
|
Minimum Illumination (Color):
|
0.002 Lux at F1.2 AGC ON
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12VDC
|
|
Protection Code:
|
IP67
IK10
|
|
Resolution:
|
5MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-30°C to 60°C (-22°F to 140°F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
