Description

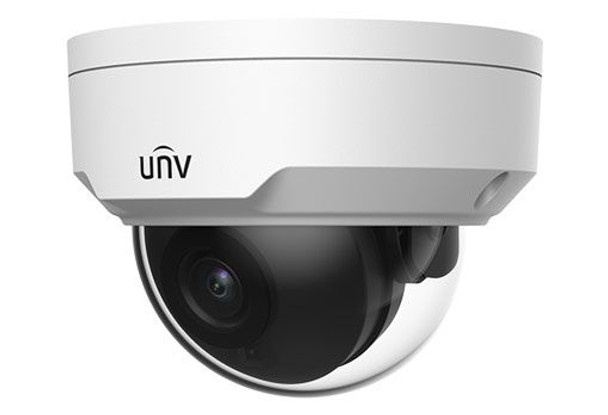

Uniview IPC324SB-DF28K-I0 4MP Night Vision Outdoor Dome IP Security Camera
Key Features:
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @ 30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, Motor vehicle and Non-Motor Vehicle
- Intelligent People Flow Counting and Crowd Density Monitoring
- LightHunter technology ensures ultra-high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Alarm:1 in/1 out, Audio: 1 in/1 out
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IK10 vandal resistant and IP67 protection
Downloads
Datasheet
Uniview-IPC324SB-DF28K-I0-Datasheet-A1
Quick Start Guide
Uniview-IPC324SB-DF28K-I0-Quick-Start-Guide-A1
User Manual
Uniview-IPC324SB-DF28K-I0-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
People Counting
Perimeter Protection
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
API
SDK
|
|
Compression:
|
Ultra 265
H.265
H.264
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
|
|
Dimensions:
|
108.7 x 81.1 mm (4.3 x 3.2 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
101.1
|
|
Image Enhancements:
|
Ultra Low Light
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
4.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2688 x 1520
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.02 Lux
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
3D DNR
2D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
IK10
|
|
Remote Users:
|
Up to 32
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
Uniview LightHunter Technology
|
|
Surge Protection:
|
4 kV
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
