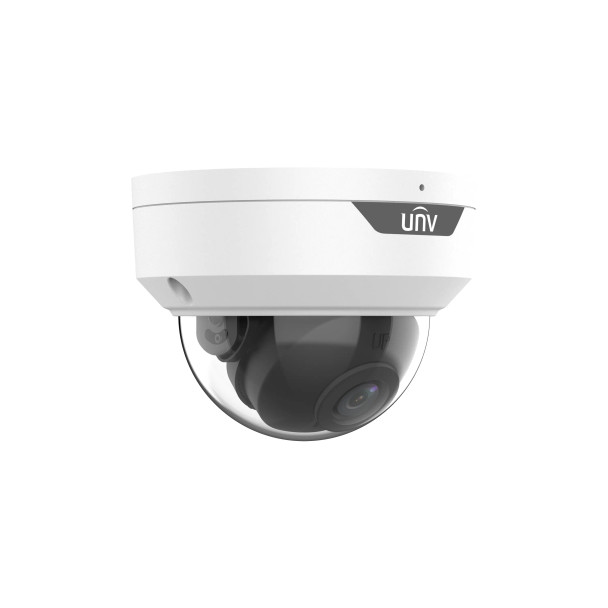

Uniview IPC324SR-ADF28KM-H 4MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR

Uniview IPC324SR-ADF28KM-H 4MP Outdoor Dome IP Security Camera with 2.8mm Lens and Built-In IR

The Uniview IPC324SR-ADF28KM-H is a 4MP vandal-resistant outdoor dome IP camera featuring Easystar low-light technology for high image quality in challenging illumination conditions. Built around a 1/3.0" CMOS sensor with a 2.8mm fixed F1.6 lens, it delivers a 97° horizontal field of view at up to 4MP (2688×1520) resolution, with minimum color illumination of just 0.003 lux (F1.6, AGC ON). Smart IR illumination extends up to 30m (98.4ft) at 850nm for reliable night vision coverage across parking areas, building perimeters, and access points.

The IPC324SR-ADF28KM-H supports 120dB true WDR for clear imaging in high-contrast scenes, along with Ultra 265, H.265, H.264, and MJPEG compression for efficient bandwidth and storage use. AI-based cross line and intrusion detection based on human body detection minimize false alarms from environmental triggers. A built-in microphone enables audio evidence capture without additional cabling. MicroSD edge storage supports up to 512GB. The 3-axis bracket allows full pan (8°–360°), tilt (0°–68°), and rotate (10°–360°) adjustment for precise field-of-view alignment. Rated IP67 and IK10, operating from -30°C to +60°C, with PoE (802.3af) or 12VDC power.

Key Features:

• 4MP resolution with 1/3.0" CMOS and Easystar technology; delivers 0.003 lux color sensitivity for high-quality imaging in near-dark environments.
• 2.8mm fixed F1.6 lens with 97° H FOV; provides wide-area outdoor coverage for parking lots, building exteriors, and access roads.
• 120dB true WDR; produces clear, balanced images at entrances and other high-contrast lighting environments.
• Smart IR up to 30m (98.4ft); ensures effective night vision coverage for medium-range outdoor perimeter areas.
• AI-based cross line and intrusion detection (human body); reduces false alarms for more reliable event-driven security responses.
• IP67 and IK10 rated, 3-axis adjustment, -30°C to +60°C; built for reliable outdoor and vandal-resistant deployments.
• Built-in mic, MicroSD up to 512GB, PoE (802.3af) or 12VDC; enables simple single-cable installation with local recording and audio capture.
