Description

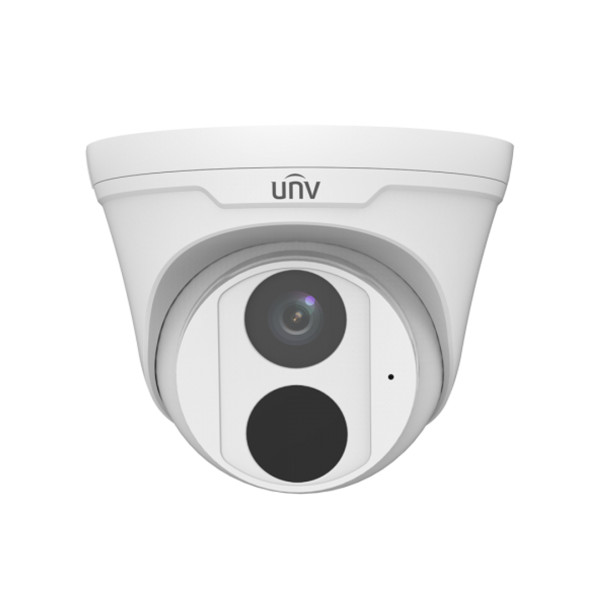

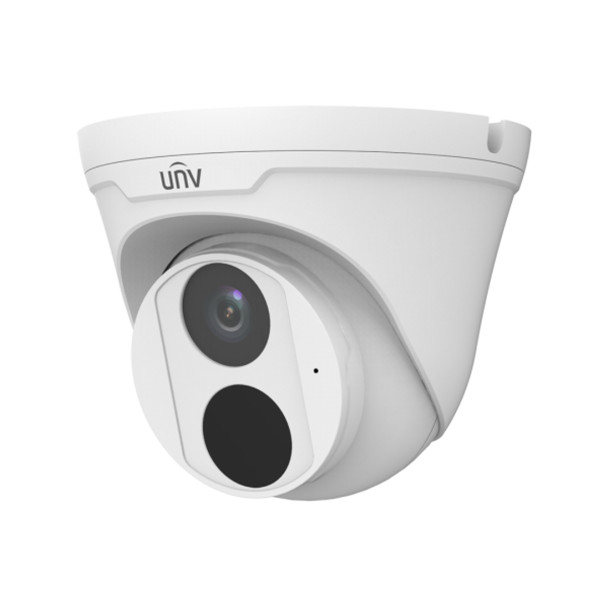

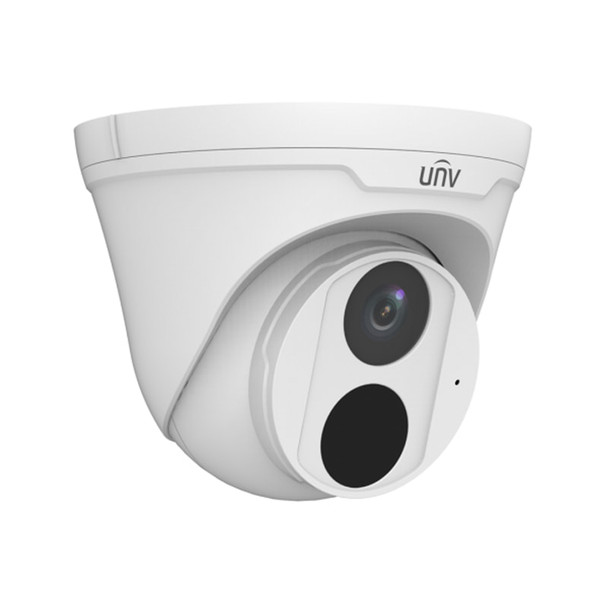

Uniview Night Vision Outdoor Eyeball IP Security Camera with Built-in Microphone - IPC3614SR3-ADF28K-G
Key Features:
- High quality image with 4MP, 1/3"CMOS sensor
- 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Lighthunter technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Downloads
Datasheet
Uniview-IPC3614SR3-ADF28K-G-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711
|
|
Audio Support:
|
Built-in Microphone
|
|
Camera Style:
|
Eyeball
|
|
Certifications:
|
CE
UL Listed
FCC
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
API
|
|
Compression:
|
Ultra 265
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
101.1
|
|
Languages:
|
English
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
Plastic
|
|
Max. FPS and Resolution:
|
30fps at 4MP
|
|
Minimum Illumination (B/W):
|
0 lux with IR illumination on
|
|
Minimum Illumination (Color):
|
0.003 lux at F1.6 AGC on
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Power Supply:
|
12 VDC
PoE (IEEE 802.3af)
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-30 °C to 60 °C (-22 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wavelength (nm):
|
850
|
|
Web Browser:
|
Chrome
Firefox
Edge
Safari
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
