Description

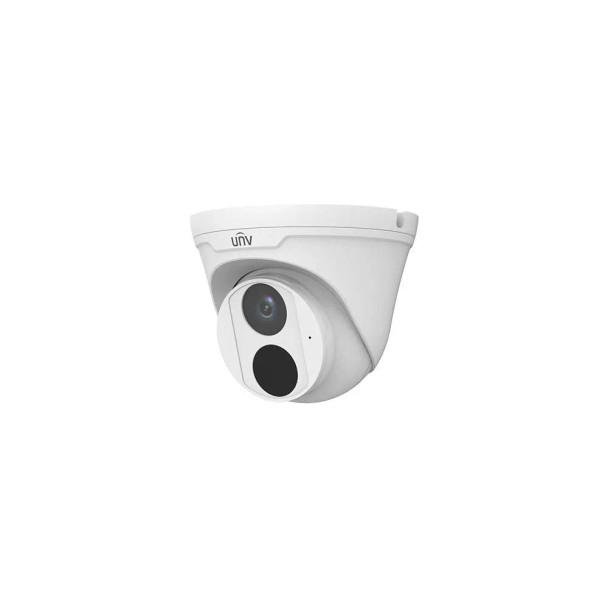

Uniview IPC3615SR3-ADF28K-G 5MP Night Vision Outdoor Turret IP Security Camera
Key Features:
- High quality image with 5MP, 1/2.7″CMOS sensor
- 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Downloads
Datasheet
Uniview-IPC3615SR3-ADF28K-G-Datasheet-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F1.6
|
|
Audio Compression:
|
G.711
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
Turret
|
|
Certifications:
|
FCC
CE
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
API
|
|
Compression:
|
H.265
Ultra 265
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Dimensions:
|
118 x 96 mm (4.6 x 3.8 in)
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
Indoor
|
|
Field of View (Horizontal):
|
112.9
|
|
Iris:
|
Fixed Iris
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Metal
Plastic
|
|
Max Power Consumption:
|
6 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2880 x 1620
|
|
Max. Storage Capacity:
|
256 GB
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 lux at F1.6 AGC on
|
|
Network Interface:
|
1x RJ-45 10/100 Mbps
|
|
Night Vision Range (ft):
|
98
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
5MP (3K)
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.7"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
Corridor Format
LightHunter
|
|
Surge Protection:
|
4 kV
|
|
Technology:
|
Network (IP)
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
