Description

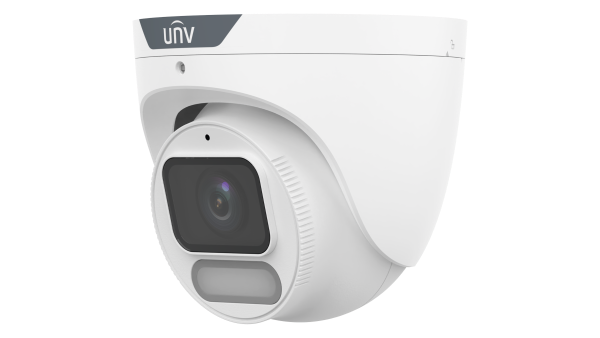

Uniview IPC3628SR-ADF28KM-WP 8MP Outdoor Turret IP Security Camera with 2.8mm Lens and Warm Light
The Uniview IPC3628SR-ADF28KM-WP is an 8MP (4K) ColorHunter outdoor turret camera featuring a large-aperture F1.0 fixed lens and Wise-ISP technology that delivers vibrant 24-hour full-color video without traditional infrared illumination. The 1/1.8" CMOS sensor captures ultra-low-light scenes down to 0.0003 Lux in color mode, while warm-light illumination extends visible coverage up to 30m (98.4ft) to maintain true-to-life colors throughout the night.
120dB true WDR technology provides balanced exposure in high-contrast environments such as parking lots, building entrances, and retail exteriors. The camera features Smart Intrusion Prevention Lite for human and vehicle-based crossline and intrusion detection, helping reduce false alerts from moving foliage and small animals. A built-in microphone enables onboard audio detection.
IP67 protection and a durable metal housing make the IPC3628SR-ADF28KM-WP suitable for a wide range of outdoor deployments. PoE (IEEE 802.3af) simplifies installation with a single cable. MicroSD edge storage up to 512GB, ONVIF compatibility, and support for Uniview's EZStation and UNV-Link platforms provide flexible integration for small to mid-size surveillance deployments.
Key Features:
- 8MP (4K) 1/1.8" CMOS with F1.0 aperture and ColorHunter Wise-ISP; produces vivid full-color images in near-darkness without IR washout.
- Warm light illumination up to 30m (98.4ft); maintains accurate color rendering at night while providing visible deterrence.
- 120dB true WDR; preserves detail in both bright and shadowed zones in high-contrast outdoor scenes.
- Smart Intrusion Prevention Lite (human/vehicle detection); reduces nuisance alerts and focuses attention on actionable events.
- IP67 rated metal housing; provides reliable protection against rain, dust, and outdoor environmental stress.
- PoE (IEEE 802.3af) + 12VDC power options; simplifies installation with a single-cable PoE run.
- MicroSD up to 512GB edge storage + ONVIF S/G/T compatible; supports local recording and integration with third-party VMS platforms.
Additional Information
|
Aperture:
|
F1.0
|
|
Camera Style:
|
Turret
|
|
Compression:
|
H.265
H.264
MJPEG
Ultra 265
|
|
Day/Night:
|
|
|
Dimensions:
|
ø4.60x4.20in
|
|
Lens Size:
|
2.8mm
|
|
Lens Type:
|
Fixed
|
|
Minimum Illumination (Color):
|
0.0003 Lux at F1.0 AGC ON
|
|
Night Vision Range (ft):
|
98.4
|
|
Power Supply:
|
PoE (IEEE802.3af)
12 VDC
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
8MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-30°C to 60°C (-22°F to 140°F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
