Description

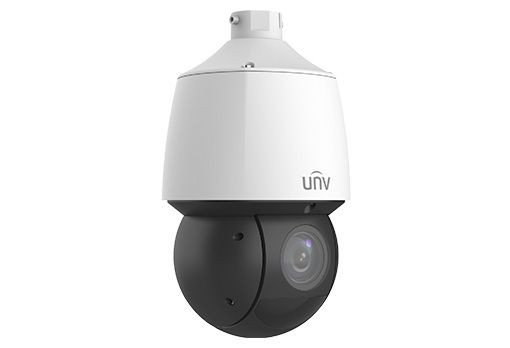

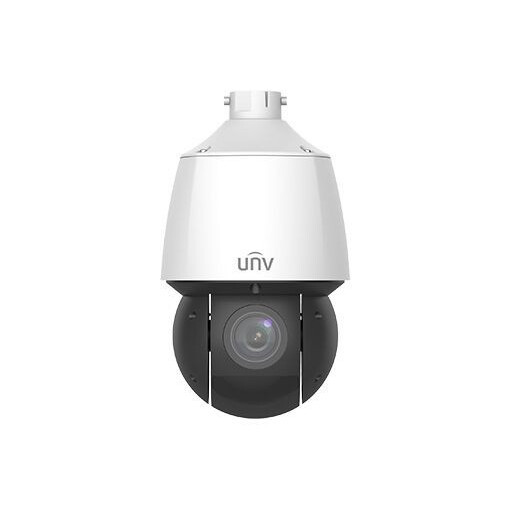

Uniview IPC6424SR-X25-VF 4MP Night Vision Outdoor 25x PTZ IP Security Camera
Key Features:
- High quality image with 4MP,1/2.8’’ CMOS sensor
- 2688*1520@30fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 25X Optical Zoom
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 100m (328ft) IR distance
- DC 12V±25% or PoE+ (IEEE 802.3at)
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP67 ingress protection
- IK10 vandal resistant
Downloads
Datasheet
Uniview-IPC6424SR-X25-VF-Datasheet-A1
User Manual
Uniview-IPC6424SR-X25-VF-User-Manual-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Analytics:
|
People Counting
|
|
Aperture:
|
F1.5
F3.8
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711u
G.711a
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
PTZ
|
|
Certifications:
|
FCC
CE
RoHS
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
API
SDK
|
|
Compression:
|
Ultra 265
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
391.2
8120.1
|
|
Digital Zoom:
|
16
|
|
Dimensions:
|
166 x 295 mm (6.5 x 11.6 in)
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
Indoor
|
|
Field of View (Horizontal):
|
52.20
2.74
|
|
Identify (ft):
|
39.1
812
|
|
Iris:
|
Auto
|
|
Lens Size:
|
4.8~120mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max Power Consumption:
|
21 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1440
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.003 Lux
|
|
Network Interface:
|
1x RJ-45 10M/100M Base-TX Ethernet
|
|
Night Vision Range (ft):
|
328
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
2D DNR
3D DNR
|
|
Observe (ft):
|
156.5
3248
|
|
Optical Zoom:
|
25x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Protection Code:
|
IP67
IK10
|
|
Recognize (ft):
|
78.2
1624
|
|
Remote Users:
|
Up to 32
|
|
Reset Button:
|
|
|
Resolution:
|
4MP
|
|
S/N Ratio:
|
>56 dB
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1-1/100000s
|
|
Special Technologies:
|
Uniview LightHunter Technology
|
|
Surge Protection:
|
6 kV
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x BNC
|
|
Wavelength (nm):
|
850
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
