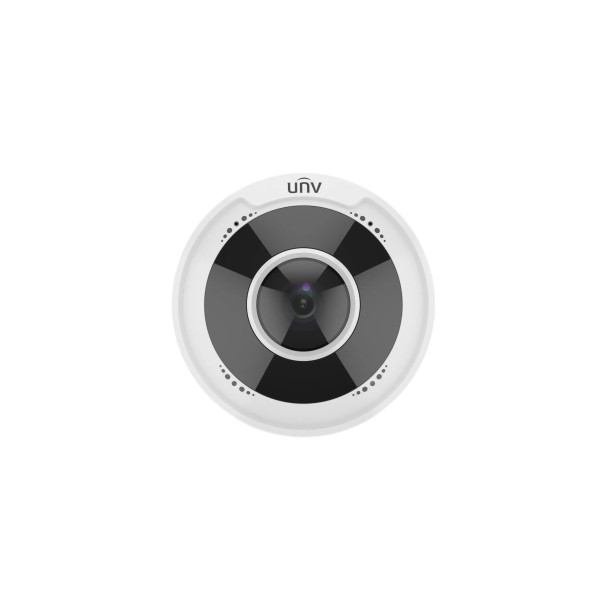

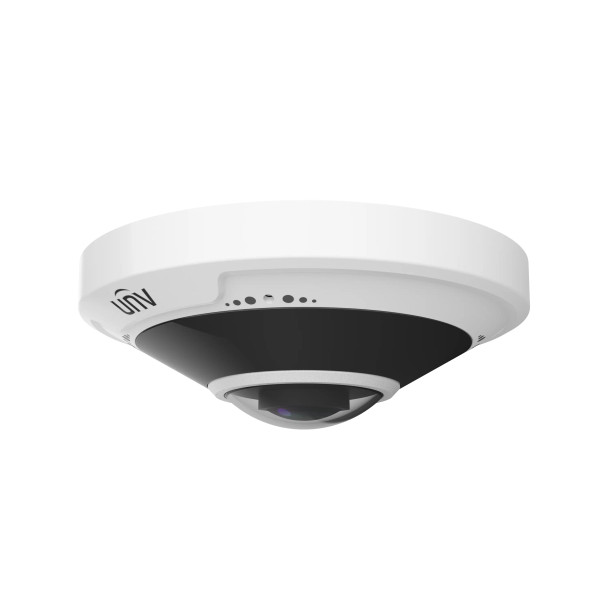

Uniview IPC815SB-ADF14K-I0 5MP Outdoor Fisheye IP Security Camera with 1.4mm Lens and Built-In IR

Uniview IPC815SB-ADF14K-I0 5MP Outdoor Fisheye IP Security Camera with 1.4mm Lens and Built-In IR

The Uniview IPC815SB-ADF14K-I0 is a 5MP fixed IR fisheye network camera designed for complete 360° and 180° panoramic coverage from a single installation point. Built around a 1/2.8" CMOS sensor with a 1.4mm fixed F2.0 lens, it delivers a full 180° horizontal, vertical, and diagonal field of view, making it ideal for retail floors, lobbies, open offices, and other wide-area indoor and outdoor environments. The camera achieves a minimum color illumination of 0.01 lux with AGC ON, and the Smart IR illuminator covers up to 10m (32.8ft) at 850nm for effective night vision.

The IPC815SB-ADF14K-I0 supports 120dB true WDR for clear imaging in high-contrast lighting conditions, along with Ultra 265, H.265, H.264, and MJPEG compression for efficient bandwidth and storage utilization. Multiple dewarping modes are available in software — including fisheye view, 360° panorama with up to 8 PTZ virtual channels, and wall mount 180° panorama modes — for flexible post-installation coverage customization. A built-in dual microphone provides audio capture without additional hardware. MicroSD edge storage supports up to 512GB for local recording redundancy. Rated IP66 and IK10, operating from -30°C to +60°C, with PoE (802.3af) or 12VDC power.

Key Features:

• 5MP 1/2.8" CMOS with 1.4mm fixed lens and 180° FOV; delivers complete panoramic coverage from a single mounting point, eliminating blind spots.
• 120dB true WDR; produces clear, balanced images in scenes with strong backlight or extreme lighting contrast such as retail entrances and building lobbies.
• Smart IR up to 10m (32.8ft) at 850nm; ensures effective night vision in low-light indoor and covered outdoor environments.
• Multiple software dewarping modes (360° panorama, 180° panorama, up to 8 virtual PTZ channels); provides flexible coverage customization without physical camera adjustment.
• Built-in dual microphone with two-way audio; enables audio evidence capture and active monitoring without additional cabling.
• IP66 and IK10 rated, -30°C to +60°C; built for reliable outdoor and vandal-resistant indoor deployments.
• MicroSD up to 512GB with PoE (802.3af) or 12VDC; offers simple single-cable installation and local recording redundancy.
