Videotec NXM2K1000B Camera Housing for Installation in Aggressive Environments

Write a Review
SKU:
NXM2K1000B
Maximum Purchase:
1000 units
  • Videotec NXM2K1000B Camera Housing for Installation in Aggressive Environments
  • Videotec NXM2K1000B Camera Housing for Installation in Aggressive Environments
  • Videotec NXM2K1000B Camera Housing for Installation in Aggressive Environments
$1,460.00
Frequently bought together:

Description

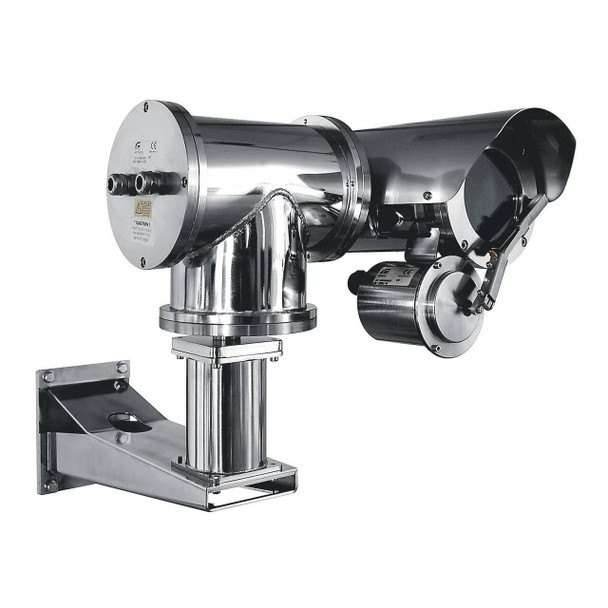

Videotec NXM2K1000B Camera Housing

The NXM housing, entirely constructed from AISI 316L electropolished stainless steel, is designed to operate in specialist environments such as marine, industrial, chemical and where the external conditions are highly corrosive. In order to prevent the formation of dust deposits, the housing can be equipped with a flange designed to create an air barrier in front of the glass. The air, normally drawn from a compressor, can be purified by the optional filter group. The options of wiper and water pump ensure a constant cleaning of the front window The NXM housing can be installed on NXPTH Pan & Tilt head, to obtain a complete positioning system.

Key features:

  • Made of AISI 316L electropolished stainless steel
  • IP66/IP67/IP68
  • Cylindrical body enclosed by two 9mm(0.4in)-thick circular flanges
  • 2 PG13.5 cable glands in nickel-plated brass for external connections
  • Sunshield,
  • Heater 12Vdc/24Vac
  • Max. consumption: 20W
  • Internal usable area (WxHxL, without accessories): 88x86x334mm (3.5x3.4x13.1in)
View AllClose

Additional Information

Manufacturer:
Videotec
Product Type:
Accessories
Warranty:
3-year Manufacturer Warranty
Environmental:
Outdoor
Accessory Type:
Housing Enclosure
Datasheet:
View AllClose
