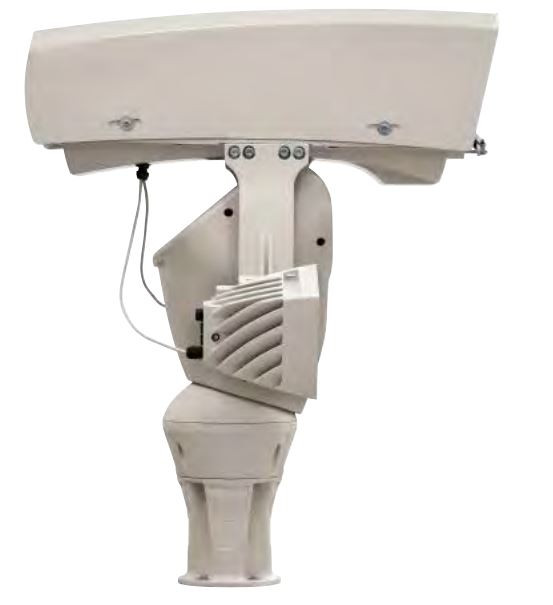

Videotec UPT2SLGAN00E Outdoor PTZ Unit 24VAC with Germanium front Window for Thermal Camera Applications

Videotec UPT2SLGAN00E Outdoor PTZ Unit 24VAC with Germanium front Window for Thermal Camera Applications

ULISSE MAXI NETCAM is a powerful Full-IP PTZ for outdoor IP video surveillance, which can manage modern IP SD, HD and Megapixel cameras, with integration in a network system. This model can contain and manage the largest motorised lenses on the market, with a total weight of up to almost 8 kilos. This way a single unit can provide a 360° coverage of the area to be monitored. A special feature of ULISSE MAXI NETCAM is the ability to easily control, via the network, all the camera's pan & tilt functions, including wiper, preset and set-up, using the most common VMS on the market. It is possible to use any ONVIF compatible Profile S camera, or proprietary protocol on RS-485, whilst the entire management of the system only requires an IP address. The unit is equipped with a wiper for removing rain and dust from the front glass; there is a wide selection of jerry cans with washer pump, different capacities and heads. To ensure detailed images even during the night hours, versions are available with LED illuminators, with infrared light or white light. The sturdy mechanical structure and the powerful motors of this PTZ are designed to guarantee maximum resistance to high operating stress, vibrations and temperatures between -10°C to +60°C. The unit is equipped with optical sensors which ensure the accurate control of the position in any condition of use.

Models are available for vision with a thermal camera.

Key Features:

• For Network cameras compatible with ONVIF protocol, Profile S, or equipped with
  RS485 serial port
• Direct access to camera web pages via VT Tunneling
• Variable speed: 0.02°-20°/s Pan and Tilt
• Horizontal continuous rotation, vertical +45°/-20°
• Weatherproof housing for large-size lenses
• IP66
• Optical sensors for absolute positioning feedback
• Camera and lens maximum allowed weight is 7.6kg
• Integrated wiper
• Position accuracy: 0.02°
• Operating temperature: -10°C / +60°C (14°F / 140°F)
• Up to 250 Presets
• Power supply: 24Vac
• Germanium window for thermal cameras
