Vivotek AW-IHT-1271 Industrial VivoCam L2+ 8xGE PoE + 4xGE SFP Managed PoE Switch

(No reviews yet) Write a Review
SKU:
AW-IHT-1271
  • Vivotek AW-IHT-1271 Industrial VivoCam L2+ 8xGE PoE + 4xGE SFP Managed PoE Switch
  • Vivotek AW-IHT-1271 Industrial VivoCam L2+ 8xGE PoE + 4xGE SFP Managed PoE Switch
  • Vivotek AW-IHT-1271 Industrial VivoCam L2+ 8xGE PoE + 4xGE SFP Managed PoE Switch
MSRP: $1,130.00
$847.50
Free Shipping
Frequently bought together:

Description

Vivotek AW-IHT-1271 Industrial VivoCam L2+ 8xGE PoE + 4xGE SFP Managed PoE Switch

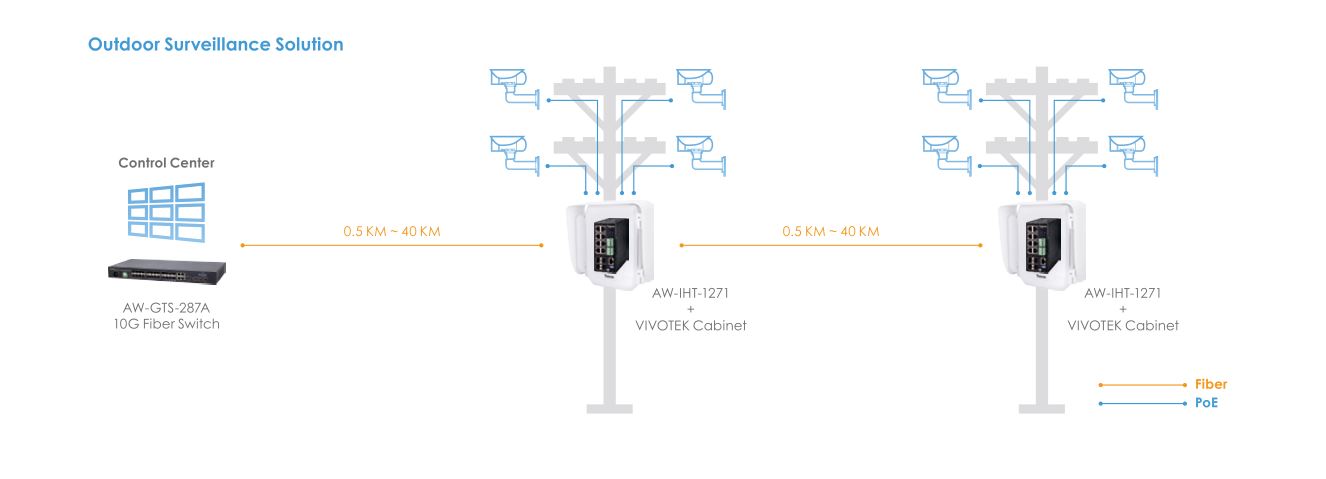

The AW-IHT-1271 is an Industrial 8-port Gigabit PoE port (Supports 802.3 at/af, and total up to 240W) + 4-port Gigabit SFP L2 plus managed PoE switch with a wide operating temperature range from -40°C to 75°C and supports surge protection per port up to 6KV. The AW-IHT-1271 combines high hardware performance and environmental flexibility for use in outdoor surveillance, outdoor telecom, heavy industry, factory automation and transportation applications.

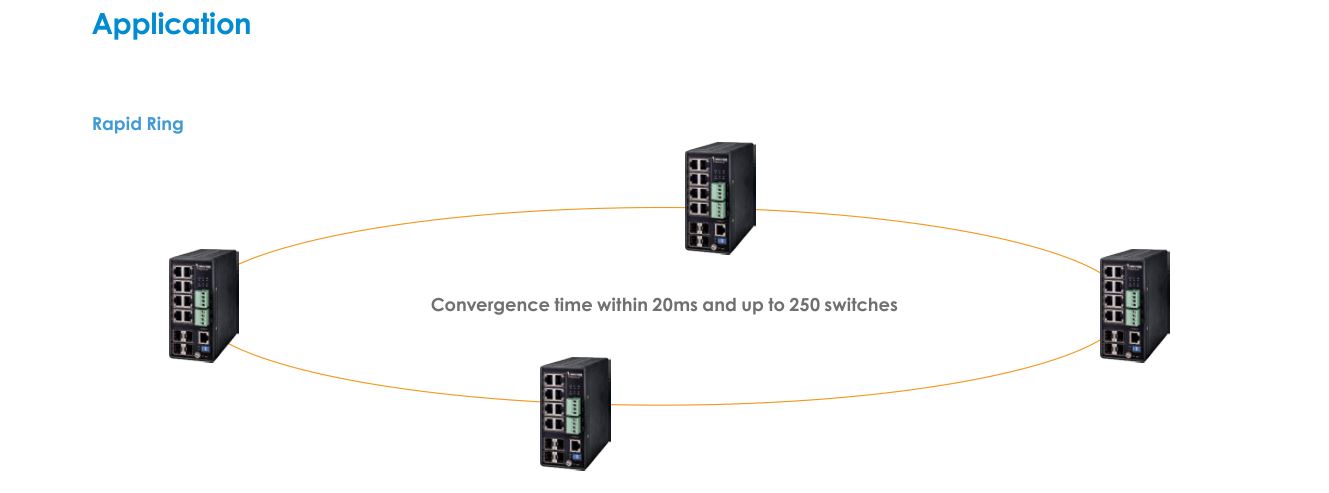

The AW-IHT-1271 supports surveillance features such as Topology/ Floor/Map views for controlling, understanding network topology and device status. It not only features surveillance network environment set up functions, but also troubleshooting and traffic monitoring functions which help users to clarify and troubleshoot any connection and device issue. In addition, the AW-IHT-1271 also supports Rapid ring, a redundancy proprietary protocol with convergence time within 20ms and up to 250 switches.

Key Features:

  • The Root VivoCam Will Auto-Sync With All VivoCam Sub Switches
  • Auto Discovery and Classification of Network Devices
  • Batch Camera Configuration - File Import & Export
  • Batch Camera Network/Login Configuration
  • Auto Generated Surveillance Topology View
  • Easy Tag VLAN Configuration in Topology View
  • Smart Device-Management in Topology View
  • PoE On/Off Control in Topology View
  • Display IP Camera Live Stream in Topology View, Floor View and Google Map View
  • Supports Discovery of ONVIF IP Cameras
  • Supports DHCP Server
  • Supports IPv4/IPv6 L3 Static Route
  • Supports IEEE802.1Q VLAN (up to 4096), Double Tag (Q-in-Q)
  • Supports IEEE802.1v Protocol VLAN and MAC-based VLAN
  • Supports Rapid Ring with Convergence Time within 20ms and up to 250 Switches
  • Supports 802.1d (STP), 802.1w (RSTP) and 802.1s (MSTP)
  • Supports IEEE802.3ad Link Aggregation Control Protocol (LACP)
  • Supports SNMP v1/v2c/v3 for Management
  • Supports Access Control List (ACL)
Compatible Accessories:
  • NDR-240-48 Indoor Industrial Din Rail Power Supply
  • HLG-240H-54 Outdoor Industrial Wall Mount Power Supply,
  • SFP-1000-MM85-X5I MMF, 0.5 KM,
  • SFP-1000-MM13-02I MMF, 2 KM,
  • SFP-1000-SM13-10I SMF, 10 KM,
  • SFP-1000-SM13-40I SMF, 40 KM



View AllClose

Specifications

Managing IP Surveillance Functions

Management
Auto Search VIVOTEK Device
Up to 1000 pcs
Surveillance Device Management List
V
DHCP Server Function
V
Easy Tag VLAN in Topology View
V
VIVOTEK Device Name Edit
V
VIVOTEK Device Account/Password Setting
V
VIVOTEK Device Static IP Setting
V
VIVOTEK Camera/Video Server Reboot/Restore Default
V
VIVOTEK Device Re-direct Link
V
VIVOTEK Device On/Off Line Status
V
Discover ONVIF IP camera
V
Graphic View
Topology View
V
Floor View
V
Google Map View
V
Maintenance
VIVOTEK Camera/Video Server Configuration File Export/Import
V
VIVOTEK Cameras/Video Server Configuration File Management
V
Floor Image Management
V
Export Surveillance Management Device List
V
Security
V
Trouble Shooting
V
Traffic Monitoring
V

Hardware Specification

Port Configuration
10M/100M/1G RJ45 PoE Port
8
100M/1G SFP Port
4
Console Port
1xRJ45
Hardware Performance
Switching Capacity
24 Gbps
Forwarding Capacity
17.856 Mpps
MAC Address
8K
Jumbo Frames
9600 Bytes
PoE Function
Number of PoE Out Ports
8
Max. PoE Output Power/Per Port
30W
802.3at/af Standard Compatible
V
Over Current Protection
V
Circuit Shorting Protection
V
Total PoE Power Budget
240W
Power Pin Assignment
1/2(+), 3/6(-)
PoE PD Auto Detection
V

Managed Layer 2+ PoE Switch Functions

Layer 2+ Features
Spanning Tree
IEEE802.1D (STP)
V
IEEE802.1w (RSTP)
V
IEEE802.1s (MSTP)
V
VLAN
802.1Q Tag-based VLAN
4096 VLAN IDs
Port-based VLAN
V
MAC-based VLAN
V
Management VLAN
V
Q-in-Q (Double Tag)
V
Private VLAN Edge (PVE)
V
Voice VLAN
V
GARP VLAN Registration Protocol (GVRP)
V
Trunking
IEEE 802.3ad LACP
Up to 4 ports in a group, Max. up to 6 groups
IGMP Snooping (v1/v2/v3)
V
Loop Detection
V
L3 Features
IP Host Table
V
IPv4/v6 Static Routing
V
Static ARP
V
DHCP Server
V
Ring Management
ITU-T G.8031
Supports ITU-T G.8031 Ethernet Linear Protection Switching
V
ITU-T G.8032
Supports ITU-T G.8032 Ethernet Ring Protection Switching
V
Rapid Ring
Convergence Time within 20ms
V
Total Number of Switch
Up to 250 units
QoS Features
Hardware Queues
8
Classification
Port Based
V
802.1p VLAN Priority Based
V
Private VLAN Edge (PVE)
V
Differentiated Services (DiffServ)
V
Classification and Re-marking ACLs
V
Rate Limiting
Ingress Policer
V
Egress Shaping and Rate Control
V
Per Port
V
Priority Queue Scheduling
Strict Priority and Weighted Round-robin (WRR)
V
Queue Assignment Based on DSCP and Class of Service
V
Security
Port Security (MAC-based)
V
IEEE802.1x
V
ACLs
Supports up to 256 Entries
V
Source and Destination MAC, VLAN ID or IP Address, Protocol, Port
V
Differentiated Services Code Point (DSCP) / IP Precedence
V
TCP/ UDP Source and Destination Ports
V
802.1p Priority
V
Ethernet Type
V
Internet Control Message Protocol (ICMP) Packets
V
TCP Flag
V
IP Source Guard (IP-MAC-Port Binding)
V
Storm Control
V
RADIUS Authentication (RFC2138)
V
DDoS Prevention
V
Layer 3 Isolation (Allow/Disallow Routing between IP Subnets)
V
HTTPs and SSL (Secured Web)
V
SSH v1.5/v2.0 (Secured Telnet Session)
V
BPDU Guard
V
STP Root Guard
V
DHCP Snooping
V
Management
SNMP (v1, v2c, v3)
V
RMON (1, 2, 3 & 9 groups)
V
CLI (Command Line Interface)
V
Web GUI Interface
V
Firmware Upgrade
V
Dual Image
V
Configuration Export/Import
V
DHCP
Support DHCP Server to Assign IP to DHCP Clients
V
Event/Error Log
Syslog
V
Management Access Filtering
SNMP
V
Web
V
Telnet
V
Port Mirroring
V
Remote Monitoring (RMON)
V
LLDP (IEEE802.1ab)
V
LLDP-MED
V
NTP
V
UPnP
V
S-Flow
V
NTP
V
IEEE 1588v2 PTP
V
Hardware Monitoring
Temperature Detection and Alarm
V
Hardware Watchdog
Supported to Resume Operation from CPU Hang up
V
IPv6 Support
Dual IPv6/IPv4 Stack
V
IPv6 Web/SSL
V
IPv6 SNTP (Simple Network Time Protocol)
V
IPv6 Telnet Server/SSH
V
IPv6 Ping Trace Route
V
IPv6 TFTP
V
IPv6 RADIUS
V
IPv6 Syslog
V
IPv6 DNS Client
V
IPv6 Protocol-based VLANs
V
IPv6 SNMP
V
PoE Management
ON/OFF Control
V
Alive Checking for PD
V
Power Delay
V
7/24 On/Off Scheduling
V
Environmental Specifications
Operating Temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Operating Humidity
5% ~ 90% Non-Condensing
Mechanical Specifications

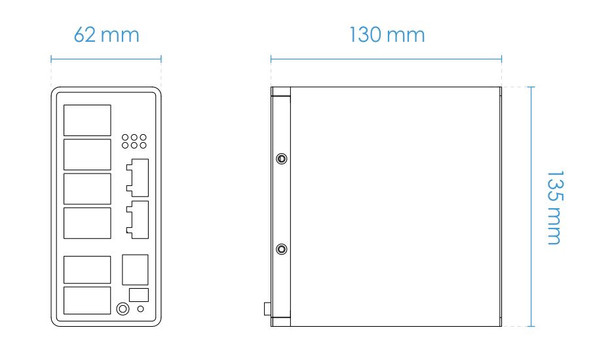

Dimensions
62(W) x 135(H) x 130(D) mm
Weight
0.68 kg
Power Specifications
Power Input Voltage
PW1: 48 ~ 57VDC
PW2: 48 ~ 57VDC
Redundant Power Backup
Output Voltage Range /Per PoE Port
54VDC
PoE IEEE 802.3af (Max. 15.4W) output
PoE+ IEEE802.3at (Max. 30W) output
Surge Protection /Per PoE Port
6KV
General
Warranty
60 months
Certifications
EMS
EN61000-4-2 ESD, EN61000-4-3 RS,
EN61000-4-4 EFT, EN61000-4-5 Surge,
EN61000-4-6 CS, EN61000-4-8 PFMF
EMI
FCC Part 15 Class A
Safety
CE, LVD, VCCI
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
