Description
Vivotek AE-23E-v2 Outdoor Enclosure
Key Features:
- IEEE 802.3 bt PoE Complaint
- Weather-proof IP68-rated Enclosure without Wiper
- Vandal-proof IK10-rated Cast Aluminum Housing
- Window Demister Heater and Fan
- Adjustable Sunshield
- Side-Opening Alarm Switch
- VAIR Illuminators (Optional)
Replacement of:
AE-23F
Specifications
Technical Specifications
Product Information
- Model
- AE-23E-v2
- P/N
- 900060000G
- Input Voltage
- IEEE 802.3 bt
PoE at 50~57VDC
- Max. Output Power Budget
- 25 W thru 30W PoE PSE
48 W thru 60W PoE PSE
72 W thru 95W PoE PSE
- Optional IR LEDs
- AI-106: 6W, 10~40°, 40~100 m
AI-108: 24W, 10° ~ 30°, 70 ~ 200 m
AI-109: 48W, 10~40°, 150~350 m
- Power Consumption
- Window Heater: 10W
Blower: 2W
Others: 2W
- Optional 10L Water Tank & Pump
- -
- Operating Temperature
- -20°C ~ 65°C (-4°F ~ 149°F)
- Windows Heater ON/OFF
- ≤ 30°C (86°F) ON
≥ 35°C (95°F) OFF
- Cold Start Heater ON/OFF
- -
- Fan ON/OFF
- ≥ 40°C (104 °F) ON
≤ 35°C (95 °F) OFF
- Waterproof IP Rating
- IP68
- Vandal Proof
- IK10
Impact Rated on Cast
Aluminum Housing
- Supported Cameras
- All VIVOTEK Box Cameras
- Included Accessories
- Installation Guide
Screw Kit
Wall Mount Bracket
Sunshield
- Mount Type
- Wall Mount
Wall Mount w/ cable management
Ceiling Mount
Ceiling Mount w/ cable management
Standing Mount
- Optional Accessories
- Wall Mount Bracket: AM-21D
Ceiling Mount Bracket: AM-11F
Standing Mount Bracket: AM-811
Pole Mount Bracket: AM-314, AM-315
Corner Mount Bracket: AM-414
VAIR IR LEDs: AI-106, AI-108, AI-109
Additional Information
|
Accessory Type:
|
Housing Enclosure
|
|
Built-in Features:
|
Built-in Blower (Fan)
Built-in Heater
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|

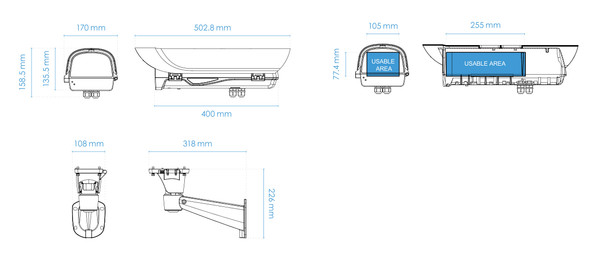

Dimensions:
|
502.8 x 170 x 158.5 mm (19.79 x 6.69 x 6.24 in)
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Housing Type:
|
Outdoor Enclosure
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
14 Watts
|
|
Mounting:
|
Wall Mount
Ceiling Mount
Corner Mount
|
|
Power Supply:
|
Hi-PoE (IEEE802.3bt)
24 VDC
|
|
Product Series:
|
Vivotek Supreme Series
|
|
Protection Code:
|
IP68
IK10
|
