Vivotek AW-FED-0500-065 4 Port Unmanaged Power Over Ethernet Switch - 65W PoE Budget

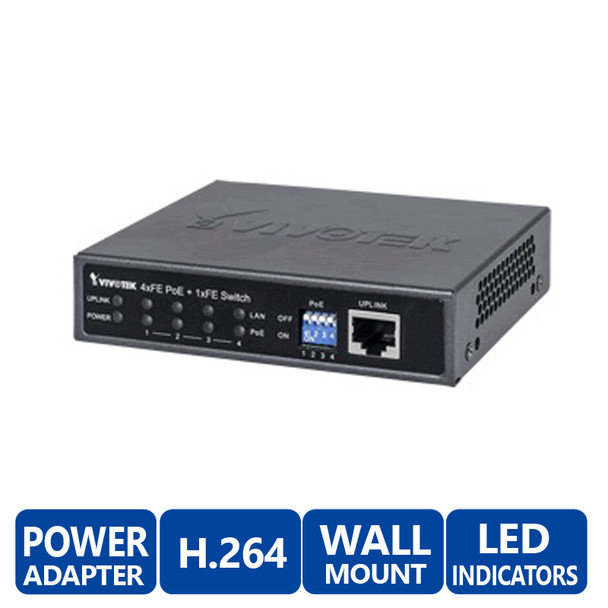

Vivotek AW-FED-0500-065 Unmanaged PoE Switch
Vivotek AW-FED-0500-065 Unmanaged PoE Switch is a 5-port unmanaged 10/100TX PoE switch designed for networking of IP surveillance cameras. This Fast Ethernet supporting unmanaged PoE Switch has the capability to supply PoE power to 4 IP cameras. 4 dip switches are found on the front for full user device on/off control. It can deliver PoE to 4 ports and the maximum PoE power budget is 52W per port. The PoE Switch supports power protections, robust short-circuit protection and surge protection. It also supports Auto-MDI/MDI-X a type of Ethernet port connection using twisted pair cabling, Auto-Negotiation configuration which eliminates the need for crossover cables.

This device can be wall mounted because of the lightweight body. Simple to deploy, this device requires no user setup - making this the ideal solution for small office, home office applications. The silent, eco-friendly low-power operation provides a flawless and noiseless operation of this device. All ports automatically detect devices for easy plug and play. The Vivotek AW-FED-0500-065 Unmanaged PoE Switch comes with a power cord, 1 power adapter, a quick installation guide and a wall mount kit.

Key Features of the Vivotek AW-FED-0500-065

• Lightweight Form factor: Allows the device to be mounted on a wall
• Network technology : Includes 10/100TX ports that are ideal for interfacing with 10 Mbps work groups or upgrading a 10 Mbps network to 100 Mbps
• 5 Ports: Out of which 4 ports are POE enabled, and together share a maximum power budget of 52W for superior data transmission
• Auto-MDI/MDI-X Ethernet Port Connection: Uses twisted pair cabling that eliminates the need for crossover cables by automatically figuring out if the link needs a straight-through or cross-over connection
• 48KB Buffer Memory: Enables easy storage and prevents loss of data.
