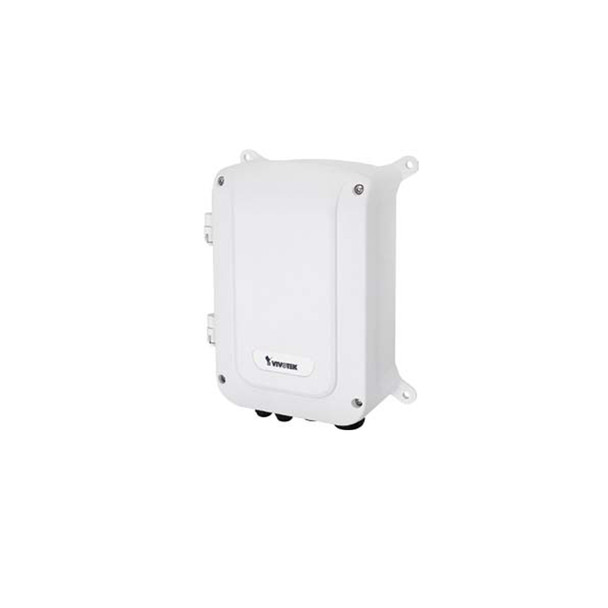

Vivotek AW-FGT-103C-250 Outdoor FE Unmanaged PoE Switch - Unmanaged 8xFE PoE + 2xGE Combo

Brand: Vivotek
Part Number: AW-FGT-103C-250
Write a Review
Discontinued
  • Vivotek AW-FGT-103C-250 Outdoor FE Unmanaged PoE Switch - Unmanaged 8xFE PoE + 2xGE Combo
  • Vivotek AW-FGT-103C-250 Outdoor FE Unmanaged PoE Switch Dimensions
  • Vivotek AW-FGT-103C-250 Outdoor FE Unmanaged PoE Switch - Unmanaged 8xFE PoE + 2xGE Combo
  • Vivotek AW-FGT-103C-250 Outdoor FE Unmanaged PoE Switch - Unmanaged 8xFE PoE + 2xGE Combo
  • Vivotek AW-FGT-103C-250 Outdoor FE Unmanaged PoE Switch - Unmanaged 8xFE PoE + 2xGE Combo
$517.65
Free shipping over $300 Free Shipping
Technical Support Technical Support

Customers Also Viewed

Discontinued
Vivotek AW-GET-086A-120 Outdoor VivoCam L2+ Managed PoE Switch

Vivotek AW-GET-086A-120 Outdoor VivoCam L2+ Managed PoE Switch

Brand: Vivotek

Part Number: AW-GET-086A-120
$1,077.64
  • Lens Size : 5~50mm Lens
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Mount Type : CS-Mount
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
  • Aperture : F1.6
  • Power Budget : 120 Watt
  • Number of Ports : 4
  • IR Corrected : No
Free shipping over $300 Free Shipping
PoE Switch PoE Switch
White White
Discontinued
Vivotek AW-GET-126A-240 Outdoor VivoCam L2+ Managed PoE Switch

Vivotek AW-GET-126A-240 Outdoor VivoCam L2+ Managed PoE Switch

Brand: Vivotek

Part Number: AW-GET-126A-240
$1,112.25
  • Lens Size : 5~50mm Lens
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Mount Type : CS-Mount
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
  • Aperture : F1.6
  • Power Budget : 240 Watt
  • Number of Ports : 8
  • IR Corrected : No
Free shipping over $300 Free Shipping
PoE Switch PoE Switch
White White
Discontinued
Vivotek AW-GET-123A-240 Outdoor Unmanaged 8xGE PoE + 4xGE SFP Switch

Vivotek AW-GET-123A-240 Outdoor Unmanaged 8xGE PoE + 4xGE SFP Switch

Brand: Vivotek

Part Number: AW-GET-123A-240
$937.50
$847.75
  • Lens Size : 5~50mm Lens
  • Sensor Size : 1/2.7" Sensor
  • Color : White
  • Mount Type : CS-Mount
  • Environmental : Outdoor
  • Sensor Size : 1/2.7"
  • Aperture : F1.6
  • Power Budget : 120 Watt
  • Number of Ports : 8
  • IR Corrected : No
Free shipping over $300 Free Shipping
PoE Switch PoE Switch
White White
Discontinued
Vivotek AW-GET-080A-120 Unmanaged 8xGE PoE Switch

Vivotek AW-GET-080A-120 Unmanaged 8xGE PoE Switch

Brand: Vivotek

Part Number: AW-GET-080A-120
$165.00
$129.41
  • Lens Size : 5~50mm Lens
  • Sensor Size : 1/2.7" Sensor
  • Color : Black
  • Mount Type : CS-Mount
  • Sensor Size : 1/2.7"
  • Aperture : F1.6
  • Power Budget : 115 Watt
  • Number of Ports : 8
  • IR Corrected : No
PoE Switch PoE Switch
Black Black
Discontinued
Vivotek AM-220 Wall Mount Bracket

Vivotek AM-220 Wall Mount Bracket

Brand: Vivotek

Part Number: AM-220
$90.58
  • Color : White
  • Material : Aluminum
  • Mount Type : Wall Mount
  • Environmental : Indoor
  • Output Current : 0.84A
Mount & Bracket Mount & Bracket
White White
Aluminum Aluminum

Description

Vivotek AW-FGT-103C-250 Outdoor FE Unmanaged PoE Switch

VIVOTEK’s outdoor FE unmanaged PoE switch is a hardengrade IP67/IK10 unit that is equipped with a DIP switch to provide ST STandard and EX EXtend operation modes. The outdoor FE unmanaged PoE switch is specially designed for outdoor IP Surveillance application. Besides standard 802.3af/at PoE functions in ST mode, the EX mode also transmits data & power on one single cable up to 200 meters at 10 Mbps via specific EX PoE ports for long reach PoE IP cameras. VIVOTEK’s outdoor FE unmanaged PoE switch also features adding an additional 20% range of input voltage tolerance (280VAC 4hr, 300VAC 1min),lightning surge protection on AC power & PoE surge protection to prevent damage caused by outside unstable AC power, lightning strikes and power spikes. These unique features help to reduce the costs of replacing damaged units.

VIVOTEK’s outdoor FE unmanaged PoE switches have two sub models consisting of 5-port AW-FET-053C-120 and 10-port AWFGT- 103C-250 with a range of power budgets from 120W to 240W for outdoor IP surveillance applications.

Key Features:

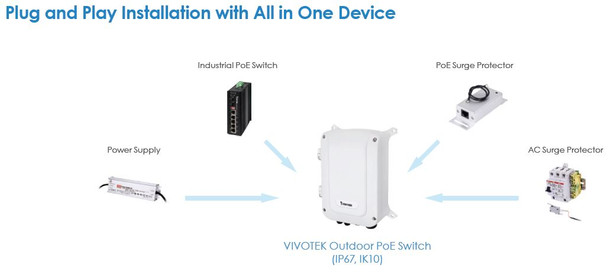

  • All-in-One device with easy installation
  • Waterproof IP67, Vandal Proof IK10 compliant
  • 15.4W/802.3af & 30W/802.3at compliant
  • 12KV PoE surge protection each port
  • 10KV/40KV AC surge protection
  • Extra 20% range of input voltage tolerance (280VAC 4Hr, 300VAC 1min)
  • Circuit protection prevents power interference between ports
  • Detects PoE PD (power device) automatically
  • ST mode reaches PoE camera up to 100M @ 100Mbps via any PoE port

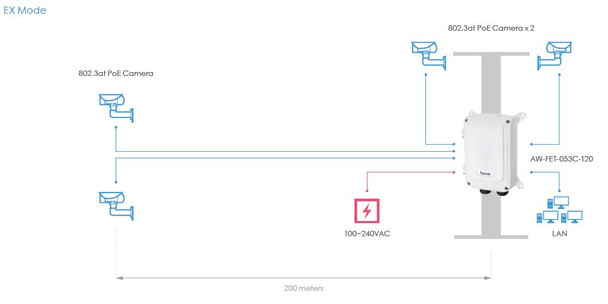

  • EX mode reaches 802.3at camera up to 200M @ 10Mbps via EX PoE ports
Optional Accessories:
  • AM-314
  • AM-315
  • AM-414

Additional Information

Accessory Type:
PoE Switch
