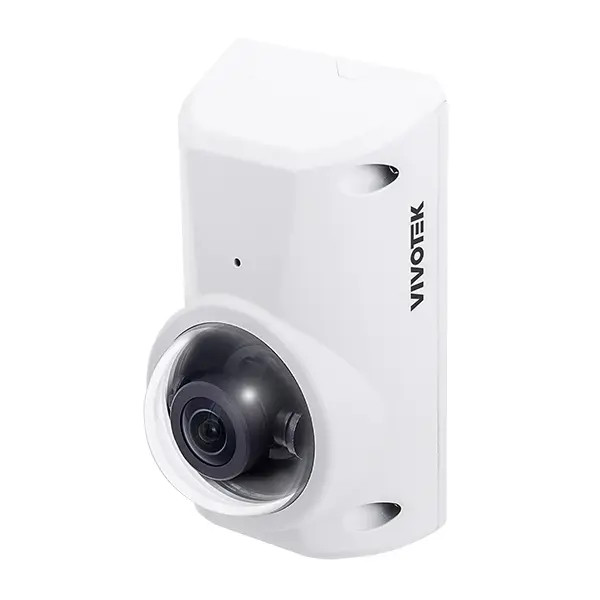

Vivotek CC9380-HV-V2 5MP Indoor Panoramic IP Security Camera with 1.47mm Lens

Vivotek CC9380-HV-V2 5MP Indoor Panoramic IP Security Camera with 1.47mm Lens

The Vivotek CC9380-HV-V2 redefines indoor panoramic surveillance with its ultra-compact design and powerful 5-megapixel 180-degree coverage. Featuring a 1/2.8" Progressive CMOS sensor capturing 2560x1920 resolution, this camera eliminates blind spots in retail stores, lobbies, hallways, and office spaces through a single wide-angle installation. The specialized 1.47mm F2.7 fixed-focal lens delivers 180-degree horizontal and 120-degree vertical fields of view, providing wall-to-wall coverage that would typically require multiple traditional cameras. Powered by an advanced multimedia SoC with 2GB RAM and 8GB flash storage, the camera processes complex AI analytics onboard with its built-in hardware deep learning accelerator.

Equipped with WDR Pro technology offering 120dB dynamic range, the CC9380-HV-V2 excels in environments with challenging lighting conditions, maintaining balanced exposure across both bright and dark areas simultaneously. The camera's minimum illumination capability of 0.08 lux in color mode and 0.005 lux in black-and-white mode, combined with its removable IR-cut filter for true day/night functionality, ensures reliable performance in variable lighting conditions. Advanced AI analytics include Smart Motion Detection with people and vehicle detection, Smart VCA with intrusion, loitering, and line crossing detection, plus additional capabilities like unattended object detection, missing object detection, and crowd detection for comprehensive security monitoring.

Built for demanding indoor environments, the CC9380-HV-V2 features IP66 and IK10 ratings for dust protection and vandal resistance, while NEMA 4X certification ensures corrosion resistance in harsh conditions. The camera supports H.265/H.264/MJPEG compression with Smart Stream III technology for bandwidth optimization, reducing storage requirements by up to 90% without compromising image quality. Operating reliably from -30°C to 55°C, the camera integrates robust cybersecurity features including Trend Micro IoT Security (3-year free trial), FIPS 140-2 certified Secure Boot, and comprehensive access controls. IEEE 802.3af PoE Class 0 power and microSD/SDHC/SDXC card support up to 1TB provide flexible installation with edge storage redundancy for critical applications.

Key Features:

• 180-degree panoramic coverage with 5MP resolution (2560x1920); eliminates blind spots and replaces multiple traditional cameras in retail, lobby, and corridor applications
• WDR Pro 120dB technology balances extreme lighting contrasts; captures clear details in areas with windows, doors, or mixed lighting conditions common in indoor spaces
• Onboard AI analytics with hardware deep learning accelerator; includes Smart Motion Detection, intrusion detection, loitering detection, crowd detection, and unattended/missing object detection
• 48x ePTZ digital zoom (4x on IE, 12x built-in) enables detailed investigation; allows operators to zoom into specific areas within the panoramic view during live monitoring or playback
• H.265/H.264 compression with Smart Stream III reduces bandwidth by up to 90%; lowers storage costs and network infrastructure requirements significantly
• IP66, IK10, NEMA 4X-rated construction withstands dust, vandalism, and corrosion; operates reliably from -30°C to 55°C for harsh indoor environments
• IEEE 802.3af PoE Class 0 power with single-cable installation; supports edge storage via microSD slot up to 1TB for recording redundancy
• Trend Micro IoT Security (3-year trial) with Secure Boot and FIPS-compliant protection; defends against brute force attacks, cyberattacks, and unauthorized access
