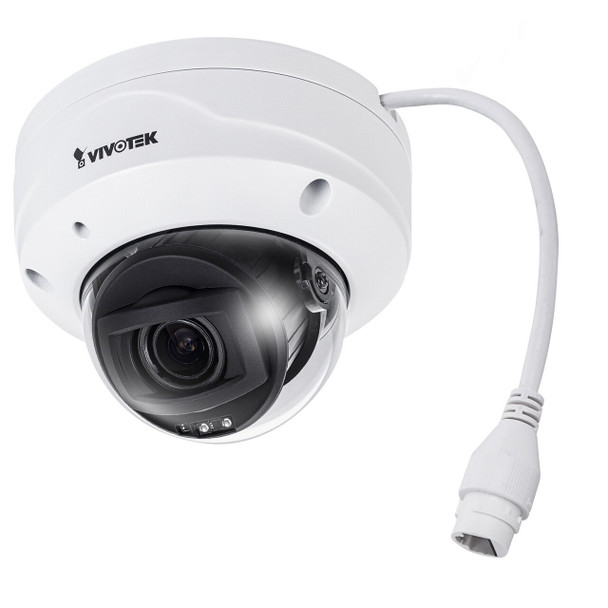

- Vivotek FD9368-HTV 2MP IR H.265 Outdoor Dome IP Security Camera with 4x Optical Zoom
Vivotek FD9368-HTV 2MP IR H.265 Outdoor Dome IP Security Camera with 4x Optical Zoom
✅ Help me pick a security camera
- Compression : H.265,
- Field of View (Horizontal) : 32°Field of View 93°Field of View
- Lens Type : Motorized (Automatic Zoom) Lens
- Lens Size : 2.8~12mm Lens
- Protection Code : IP66
- Environmental : Outdoor
- Audio Support : Built-in Microphone
Description
Vivotek FD9368-HTV 2MP IR H.265 Outdoor Dome IP Security Camera with 4x Optical Zoom
VIVOTEK’s FD9368-HTV is a H.265 outdoor dome network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9368-HTV is capable of capturing high-quality imagery in both high contrast and low light environments.
The FD9368-HTV deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. . Further, to provide reliable coverage in harsh outdoor environments, the FD9368-HTV is encased in IP66 and IK10 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9368-HTV is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
Key Features:
- 2MP
- H.265 Compression Technology
- 30 fps @ 1920x1080 (WDR Pro on)
- 2.8~12 mm, Remote Focus
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Built-in Microphone
Downloads
Specifications
Technical Specifications
System Information
- Model
- FD9368-HTV
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 128MB
- RAM
- 256MB
Camera Features
- Image Sensor
- 1/2.9" Progressive CMOS
- Max. Resolution
- 1920x1080 (2MP)
- Lens Type
- Motorized, Vari-focal, Remote Focus
- Focal Length
- f = 2.8 ~ 12 mm
- Aperture
- F1.4 ~ F2.8
- Auto-iris
- Fixed-iris
- Field of View
- 32°~93° (Horizontal)
18°~50° (Vertical)
37°~110° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination
- 0.055 lux @ F1.4 (Color)
<0.005 lux @ F1.4 (B/W)
0 Lux with IR illumination on
- Pan Range
- 350°
- Tilt Range
- 75°
- Rotation Range
- 350°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage
- Slot Type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 30 fps @ 1920x1080
- Maximum Streams
- 3 simultaneous streams
- S/N Ratio
- 68 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and bitrate, Smart Stream III
- Image Settings
- Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
Audio
- Audio Capability
- One-way Audio
- Audio Compression
- G.711, G.726
- Audio Interface
- Built-in microphone
- Effective Range
- 5 meters
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Video Motion Detection
- Five-window video motion detection
- VADP Package
- Trend Micro IoT Security, Stratocast
Alarm and Event
- Alarm Triggers
- Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
- Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mpbs Network/PoE connection
- LED Indicator
- System power and status indicator
- Power Input
- IEEE 802.3af PoE Class 0
- Power Consumption
- Max. 12.95 W (IR on)
Max. 9 W (IR off)
- Dimensions
- ø 133.7 x 103.8 mm
- Weight
- 819 g
- Casing
- IP66, IK10
- Safety Certifications
- CE, FCC Class B, UL, LVD, VCCI, C-Tick
- Operating Temperature
- Starting Temperature:
-10°C ~ 60°C (14°F ~ 140°F)
Working Temperature:
-30°C ~ 60°C (-22°F ~ 140°F)
- Humidity
- 90%
- Warranty
- 24 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 10/11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Others
- Quick installation guide, alignment sticker, screw pack, cable gland
Compatible products
Additional Information
Audio Support:
|
Built-in Microphone
|
Camera Style:
|
Dome
|
Compression:
|
H.265
|
Durability:
|
Weatherproof
|
Environmental:
|
Outdoor
|
Field of View (Horizontal):
|
32
93
|
Lens Size:
|
2.8~12mm
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
NDAA Compliance:
|
NDAA Compliant
|
Night Vision Range (ft):
|
98
|
Optical Zoom:
|
4x Optical Zoom
|
Protection Code:
|
IP66
|
Resolution:
|
2MP
|
SD Card Support:
|
SD Card Supported
|
Technology:
|
Network (IP)
|
