Description

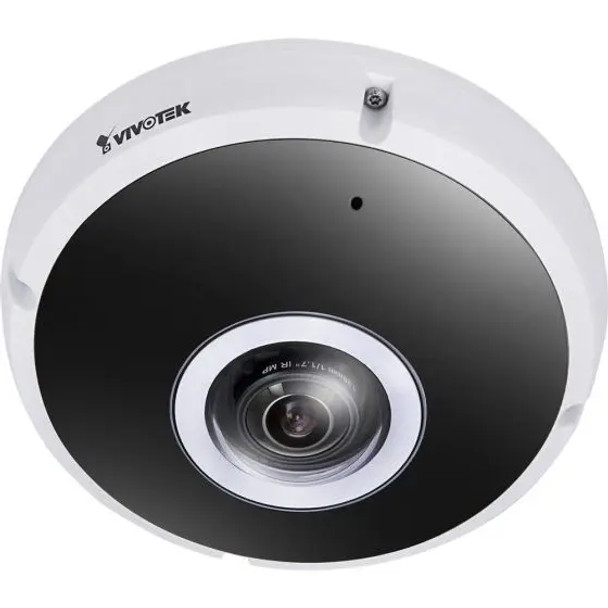

Vivotek FE9391-EV-V2-M12(M) 12MP Outdoor Fisheye IP Security Camera with 1.18mm Lens and Built-In IR
Experience comprehensive 360-degree surveillance with the Vivotek FE9391-EV-V2-M12(M) fisheye camera. This advanced 12MP panoramic AI camera delivers complete situational awareness through its ultra-wide 180° field of view, making it perfect for monitoring large outdoor areas with minimal blind spots.
Featuring a specialized 1/2.3" progressive CMOS sensor and WDR Pro technology, this fisheye camera captures exceptional detail across the entire viewing area. The built-in 940nm IR illuminators ensure effective surveillance up to 5 meters in complete darkness, while the ruggedized M12 connector design makes it ideal for transportation and industrial applications.
Advanced AI analytics provide intelligent object detection and tracking capabilities, while multiple dewarping modes allow flexible viewing options from fisheye to panoramic displays. With IP66/67 protection and extreme temperature tolerance, this camera operates reliably in demanding environments.
Key Features:
- 12MP fisheye sensor with 2816x2816 resolution; delivers comprehensive 360-degree coverage with exceptional detail
- 180° panoramic field of view; eliminates blind spots for complete area monitoring
- Multiple dewarping modes and ePTZ functionality; provides flexible viewing options and digital zoom capabilities
- Built-in 940nm IR illuminators effective up to 5 meters; ensures covert nighttime surveillance
- M12 connector with IP66/67 protection; designed for transportation and harsh industrial environments
- AI-powered analytics with object detection; enhances security intelligence and threat identification
- Extreme temperature operation (-40°C to 70°C); ensures reliable performance in challenging conditions
- PoE+ (IEEE 802.3at) power supply; simplifies installation with high-power single cable solution
Downloads
Additional Information
|
Aperture:
|
F2.18
|
|
Camera Style:
|
Fisheye
|
|
Compression:
|
H.264
MJPEG
H.265
|
|
Day/Night:
|
|
|
Dimensions:
|
6.30x2.43x6.30in
|
|
Lens Size:
|
1.18mm
|
|
Lens Type:
|
Fixed Lens
|
|
Max Power Consumption:
|
18 Watts
|
|
Night Vision Range (ft):
|
16
|
|
Power Supply:
|
PoE+ (IEEE 802.3at)
|
|
Protection Code:
|
IK10
IP66
|
|
Resolution:
|
12MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/2.3"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 98% RH (non-condensing)
|
|
Storage Temperature:
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
|
