Description

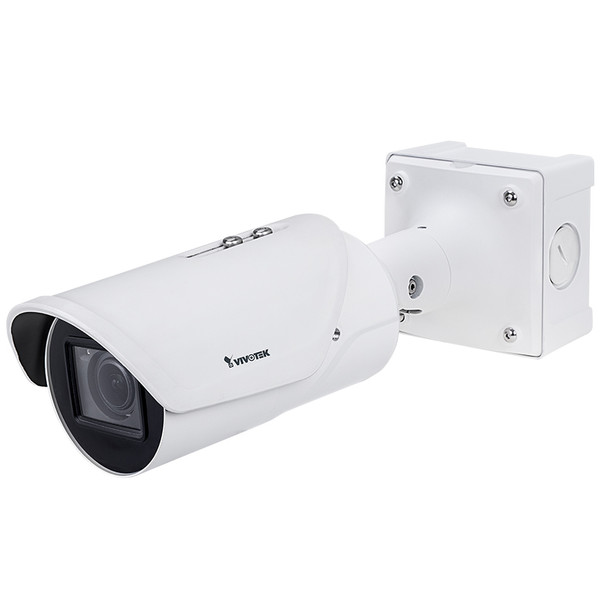

Vivotek IB9365-EHT-A 2MP Outdoor Bullet IP Security Camera with 4-9mm Lens, 4x Digital Zoom, and Built-In IR
The Vivotek IB9365-EHT-A is a rugged 2MP outdoor bullet IP security camera engineered for high-performance surveillance in extreme weather conditions. Featuring a 1/2" progressive CMOS sensor and a motorized vari-focal 4–9mm P-iris lens, it captures 1920 × 1080 resolution video at up to 60 FPS with exceptional clarity. The camera’s built-in IR LEDs, enhanced with Smart IR II technology, provide night vision up to 50 meters (164 feet), while Supreme Night Visibility (SNV) ensures low-light performance. Equipped with WDR Pro (120 dB), Smart Stream III, and H.265 compression, it efficiently maintains image quality and reduces bandwidth. The IB9365-EHT-A supports deep learning-based video analytics, including Smart VCA for intrusion, loitering, and line-crossing detection. Designed with an IP66, IP67, and IK10-rated housing, it operates reliably from -58°F to 140°F and integrates easily with third-party systems via ONVIF.
Key Features:
- 2MP resolution (1920 × 1080); delivers Full HD video at 60 FPS.
- 4–9mm motorized vari-focal lens; supports remote focus and 46° to 100° horizontal field of view.
- Built-in IR LEDs with Smart IR II; enables night vision up to 50 meters (164 feet).
- Supreme Night Visibility (SNV); enhances performance in low-light conditions.
- WDR Pro (120 dB); ensures balanced exposure in high-contrast lighting.
- 4x digital zoom (12x built-in, 4x via plugin); allows detailed electronic pan/tilt/zoom.
- Smart VCA; includes intrusion, loitering, and line crossing detection with AI-based accuracy.
- Smart Motion Detection; reduces false alarms with people detection and time filtering.
- H.265, H.264, and MJPEG support; enables efficient video compression and transmission.
- Triple streaming; customizable resolution and bitrate for optimal performance.
- Two-way audio; includes external mic input and line output.
- MicroSD/SDHC/SDXC card slot; supports onboard storage and seamless recording.
- IP66, IP67, and IK10 rated metal housing; built for extreme outdoor environments.
- PoE (IEEE 802.3at), 12VDC, or 24VAC input; supports power redundancy.
- Operating temperature range -58°F to 140°F; supports startup from -40°F.
- ONVIF compliant; integrates easily with leading VMS platforms.
Downloads
Datasheet
Vivotek-IB9365-EHT-A-Datasheet-A1
Specifications
Technical Specifications
System Information
- Model
- IB9365-EHT-A
- CPU
- Multimedia SoC (System-on-Chip)
- Flash
- 256MB
- RAM
- 1GB
Camera Features
- Image Sensor
- 1/2" Progressive CMOS
- Max. Resolution
- 1920x1080 (2MP)
- Lens Type
- Motorized, Vari-focal, Remote Focus
- Focal Length
- f = 4 ~ 9 mm (f = 3.5 ~ 11.4 mm, equivalent focal length @ 1/2.8")
- Aperture
- F1.3 ~ 2.2
- Auto-iris
- P-iris
- Field of View
- 46° ~ 100° (Horizontal)
26°~52° (Vertical)
53°~120° (Diagonal)
- Shutter Time
- 1/5 sec. to 1/32,000 sec.
- WDR Technology
- WDR Pro
- Day/Night
- Yes
- Removable IR-cut Filter
- Yes
- IR Illuminators
- Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6
- Minimum Illumination
- 0.015 Lux @ F1.3 (Color)
<0.005 Lux @ F1.3 (B/W)
0 Lux with IR illumination on
- Tilt Range
- 90°
- Rotation Range
- 180°
- Pan/Tilt/Zoom Functionalities
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage
- Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
Video
- Video Compression
- H.265, H.264, MJPEG
- Maximum Frame Rate
- 60 fps @ 1920x1080
- Maximum Streams
- 3 simultaneous streams
- S/N Ratio
- 68 dB
- Dynamic Range
- 120 dB
- Video Streaming
- Adjustable resolution, quality and constant bit rate control, Smart Stream III
- Image Settings
- Time stamp, text overlay, flip and mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3DNR, video rotation, EIS
Audio
- Audio Capability
- Two-way Audio (full duplex)
- Audio Compression
- G.711, G.726
- Audio Interface
- External microphone input
External line output
Network
- Users
- Live viewing for up to 10 clients
- Protocols
- 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface
- 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
- ONVIF
- Supported, specification available at www.onvif.org
Solution Integration
- Smart Motion Detection
- Five-window video motion detection, people detection, time filter
- Smart VCA
- Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection
- VADP Package
- Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security
Alarm and Event
- Alarm Triggers
- Motion detection, digital input, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, shock detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events
- Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card
General
- Connectors
- RJ-45 cable connector for 10/100Mbps Network/PoE connection
Audio input
Audio output
AC 24V power input
DC 12V power input
Digital input *2
Digital output *2
BNC out
- LED Indicator
- System power and status indicator
- Power Input
- AC 24V, DC 12V, IEEE 802.3at PoE Class 4
(Power Redundancy)
- Power Consumption
- PoE: Max. 25/20 W (IR on/off)
DC 12V: Max. 20.4/15 W (IR on/off)
AC 24V: Max. 22/17 W (IR on/off)
- Dimensions
- Ø 121 x 121 x 352.1 mm (w/ junction box)
Ø 121 x 121 x 288.1 mm (w/o junction box)
- Weight
- 1,254 g
- Casing
- IP66, IP67, IK10 (Metal Housing)
- Safety Certifications
- CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
- Operating Temperature
- Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Working Temperature(IR on): -50°C ~ 50°C (-58°F ~ 122°F)
Working Temperature(IR off): -50°C ~ 60°C (-58°F ~ 140°F)
- Humidity
- 98%
- Warranty
- 36 months
System Requirements
- Operating System
- Microsoft Windows 8/7
Mac 10.12 (Chrome only)
- Web Browser
- Chrome 58.0 or above
Internet Explorer 11
- Other Players
- VLC: 1.1.11 or above
Included Accessories
- Others
- Quick installation guide, warranty card, screw pack, alignment sticker, desiccant bag, waterproof accessory bag, junction box, sunshield
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Smart Motion Detection
Intrusion Detection
Face Detection
Line Crossing
Object Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Camera Style:
|
Bullet
|
|
Compression:
|
H.265
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
46
100
|
|
Lens Size:
|
4~9mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Night Vision Range (ft):
|
164
|
|
Protection Code:
|
IP67
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2"
|
|
Sensor Type:
|
CMOS
|
|
Special Technologies:
|
Vivotek SNV (Supreme Night Visibility)
|
|
Technology:
|
Network (IP)
|
