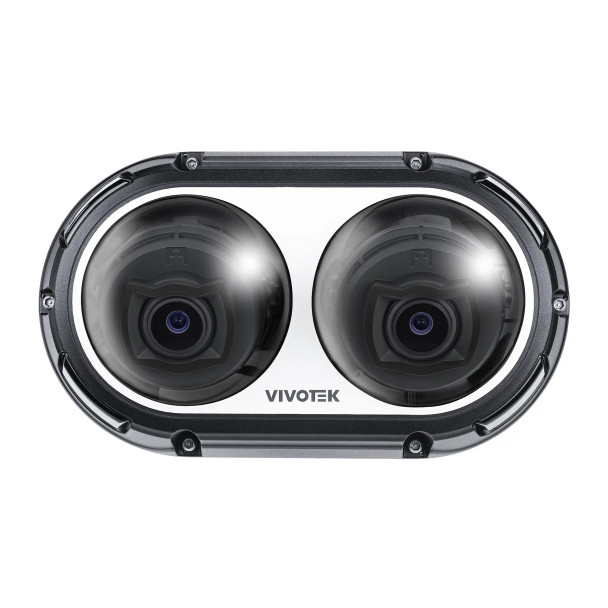

Vivotek MA9311-EHTV 2x5MP Outdoor Multi-Sensor IP Security Camera with AI Analytics
The Vivotek MA9311-EHTV is an advanced V-series Multi-Directional Panoramic AI Camera featuring dual 5MP sensors with 1/1.8" Progressive CMOS technology. This innovative camera delivers comprehensive 360-degree coverage from a single installation point, featuring motorized 2.8-12mm P-Iris lenses that provide flexible field of view from 96° to 30° horizontal coverage. Perfect for reducing installation complexity and licensing costs while maintaining superior surveillance quality.
Engineered with 120dB WDR Pro technology and built-in IR illuminators effective up to 65.6 feet (20 meters), the MA9311-EHTV ensures exceptional image clarity in all lighting conditions. The advanced P-Iris technology provides precise aperture control for sharper images and improved depth of field, making it ideal for detailed surveillance across expansive areas. With AI-powered Smart VCA analytics and Vision Object Analytics, this camera offers intelligent detection and accurate incident monitoring.
Built for demanding outdoor environments, this camera features robust IP66/67 and IK10 protection with NEMA 4X certification. The hard-coated bubble prevents surface scratches while the included sunshield provides rain/snow protection, reducing maintenance requirements. TPM 2.0 encryption chip and Trend Micro IoT Security ensure comprehensive cybersecurity protection for sensitive surveillance data.
Key Features:
- Dual 5MP sensors with 1/1.8" Progressive CMOS technology
- Motorized 2.8-12mm P-Iris lenses with 96° to 30° horizontal FOV
- 120dB WDR Pro for superior image quality in challenging lighting
- Built-in IR illuminators effective up to 65.6 feet (20 meters)
- AI-powered Smart VCA and Vision Object Analytics
- Multi-directional panoramic coverage from single installation
- IP66/67, IK10, NEMA 4X-rated protection for outdoor durability
- Hard-coated bubble with rain/snow protection sunshield
- TPM 2.0 encryption and Trend Micro IoT Security
- 5-year manufacturer warranty with NDAA compliance
Downloads
Additional Information
|
Camera Style:
|
Multi-sensor
|
|
Compliance:
|
NDAA
|
|
Compression:
|
H.265
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Field of View (Horizontal):
|
96° to 30°
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
2.8~12mm
|
|
Night Vision Range (ft):
|
66
|
|
Power Supply:
|
PoE
|
|
Protection Code:
|
IK10
NEMA 4X
IP66
|
|
Resolution:
|
5MP
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5 Years
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
