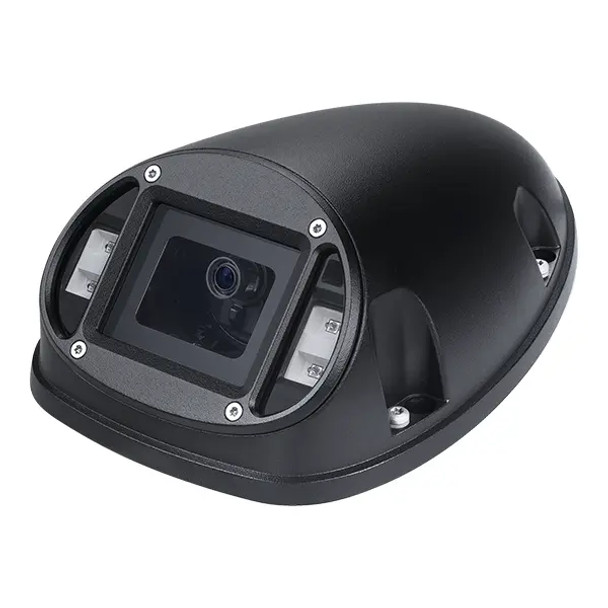

Vivotek MD8564-EH-V2 3.6MM 5MP Outdoor Dome IP Security Camera with 3.6mm Lens and Built-In IR

Vivotek MD8564-EH-V2 3.6MM 5MP Outdoor Dome IP Security Camera with 3.6mm Lens and Built-In IR

The Vivotek MD8564-EH-V2 delivers uncompromising surveillance performance specifically engineered for mobile and railway applications where reliability in extreme conditions is paramount. This ruggedized 5-megapixel camera features a 1/2.7" Progressive CMOS sensor capturing 2560x1920 resolution at 30fps through a fixed 3.6mm F2.0 lens providing 83-degree horizontal coverage. Certified to rigorous EN50155, EN45545-2, EN50121-3-2, EN50121-4, EN61373, and ECE R118 standards, this camera withstands the intense vibration, shock, and temperature extremes inherent in transportation environments. The robust IP68, IP6K9K, NEMA 4X, and IK10+ rated housing with 5mm heat-strengthened anti-reflection coated glass ensures protection against water ingress, high-pressure washing, corrosion, and severe impact.

Built with WDR Pro technology delivering 120dB dynamic range, the MD8564-EH-V2 excels in the challenging lighting conditions encountered in mobile surveillance, from bright sunlight to dark tunnels. Four built-in Smart IR LEDs extend night vision coverage up to 50 meters with automatic intensity adjustment to prevent overexposure. The camera operates reliably in extreme temperatures from -40°C to 70°C without external heating when IR is off, and from -40°C to 65°C with IR illumination active. For applications requiring even lower temperature operation, an optional 24V DC 48W heater maintains functionality in arctic conditions. Advanced image stabilization (EIS) compensates for vehicle vibration, while specialized scene modes optimize image quality for railway environments including signal lights and rail tracks.

Powered by a multimedia SoC with hardware deep learning accelerator and 2GB RAM, the MD8564-EH-V2 processes AI analytics onboard including Smart Motion Detection with people detection and time filtering capabilities. The camera supports H.265/H.264/MJPEG compression with Smart Stream III technology for bandwidth optimization, critical for cellular-connected mobile applications. Cybersecurity features include Trend Micro IoT Security with 3-year free trial, IEEE 802.1x authentication, and secure boot protection against tampering. M12 industrial-grade connectors ensure reliable connections in high-vibration environments, while microSD/SDHC/SDXC card support enables edge recording redundancy. IEEE 802.3af PoE Class 0 power simplifies installation with single-cable connectivity for the camera, with separate 24V DC input available for the optional heater module.

Key Features:

• Railway and transportation certified (EN50155, EN45545-2, ECE R118); proven reliability for buses, trains, and mobile surveillance in extreme vibration and shock conditions
• 5MP resolution (2560x1920) at 30fps with 83-degree horizontal FOV; captures vehicle interiors, passenger areas, and roadside details with professional image quality
• WDR Pro 120dB technology balances extreme lighting contrasts; maintains visibility from bright windshields to dark interiors during day-night transitions
• Smart IR up to 50 meters with four LED array and automatic intensity adjustment; extends night vision coverage for long vehicles while preventing close-range overexposure
• Extreme temperature operation from -40°C to 70°C; operates reliably without external heating, with optional 24V 48W heater for arctic conditions below -40°C
• IP68, IP6K9K, IK10+, NEMA 4X rated housing with 5mm heat-strengthened glass; survives high-pressure washing, corrosion, severe impacts, and complete water immersion
• Advanced EIS image stabilization compensates for vehicle vibration; delivers stable footage despite constant movement and road irregularities
• H.265/H.264 compression with Smart Stream III reduces bandwidth by up to 90%; critical for cellular-connected mobile applications with limited data plans
