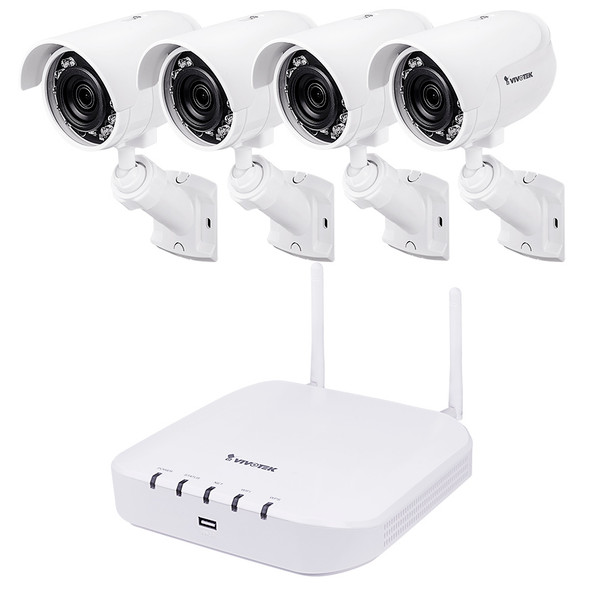

Vivotek ND8212W-2TB-4IB60 4-Camera Wireless Outdoor IP Security Camera System

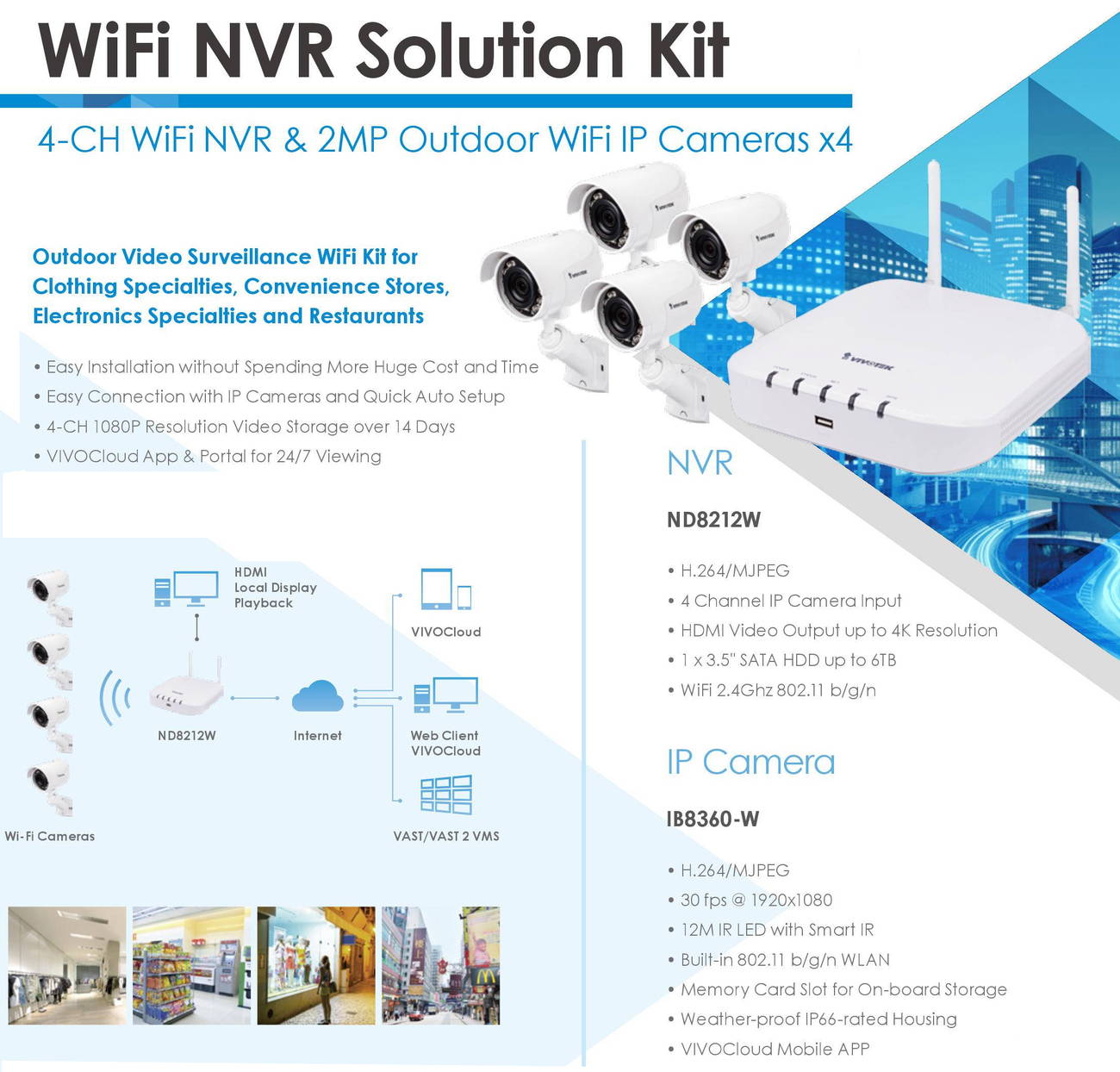

VIVOTEK’s Video Surveillance WiFi Kit for Clothing Specialties, Convenience Stores, Electronics Specialties and Restaurants.
- Easy Installation without Spending More Huge Cost and Time
- Easy Connection with IP Cameras and Quick Auto Setup
- 4-CH 1080P Resolution Video Storage over 14 Days
- VIVOCloud App & Portal for 24/7 Viewing
Key features of Vivotek ND8212W-2TB-4IB60
- 4-Channel Wireless NVR
- 4x 2MP Wireless Mini Bullet Camera
- 2TB HDD Pre-installed
- IR range up to 39ft (Night Vision)
- 3.6mm Fixed Lens (H: 89°)
Key features of Vivotek ND8212W
- H.264 Compression Technology
- Up to 4CH Wi-Fi + 4CH Wired IP Camera Input
- HDMI Video Output up to 4K Resolution
- 1 x 3.5" SATA HDD up to 6TB
- Up to 8MP Camera Liveview and Playback
- VIVOCloud App & Portal for 24/7 Viewing
- Easy Connection with IP Cameras and Quick Auto Setup
- Instant Playback Fisheye Dewarp
- 2.4Ghz 802.11 b/g/n Wi-Fi Connection
- ONVIF Compliance (Project Support Function)
- Compact Size with Fanless Design

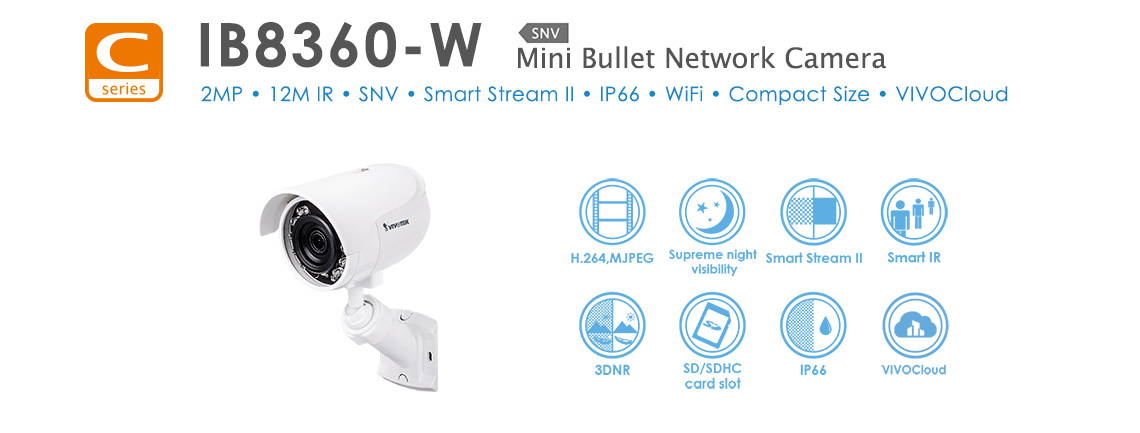

Key features of Vivotek IB8360-W
- 30 fps @ 1920x1080
- Built-in IR Illuminators up to 12 Meters
- Smart IR Technology to Avoid Overexposure
- SNV (Supreme Night Visibility) for Low Light Conditions
- Smart Stream II to Optimize Bandwidth Efficiency
- Weather-proof IP66-rated Housing
- Built-in 802.11 b/g/n WLAN
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Compact Size
- VIVOCloud Mobile App
Features
Manufacturer:
Vivotek
Product Type:
Systems
Warranty:
2-year Manufacturer Warranty
Environmental:
Outdoor
Specialized Camera Feature:
Wireless
Discontinued:
no
Security Camera Systems Features
Lens (Systems):
2.8mm
Lens Type (Systems)
:
The fixed length or vari-focal length refers to the ability to adjust the camera’s field of view. The smaller the lens size, the wider the field of view. Fixed lenses will be fixed for the life of the camera but vari-focal lenses can be adjusted to have the best field of view. Vari-focal lenses are two kinds, manual and auto. If you choose manual vari-focal lense, you will need to hold the camera adjust the focal length where as if you choose motorized vari-focal lens, you will be able to perform the same task from your computer. That is the main difference.
Fixed Lens
Pre-Installed Storage:
2 TB Storage
Recorder Channel Capacity:
4 Channel
Resolution (System):
2 Megapixel - 1080P
Security Camera Types:
Cube Security System
Surveillance Technology:
IP Security System
Number of Security Cameras:
4 camera system
Technical Specs
| Model | ND8212W |
| System | |
| OS | Embedded Linux |
| CPU | ARM Processor |
| Flash | 256 MB |
| RAM | 1 GB |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Storage | |
| HDD Devices | Internal x 1 |
| HDD Max. Capacity | 6 TB x 1 |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T |
| Video | |
| Video Output | HDMI x 1 |
| Resolution | 3840x2160, 1920x1080, 1280x720 |
| Graphics Decoder | Hardware decoding |
| Decoding Capacity | H.264: 3840x2160 @ 30 fps (1CH) 1920x1080 @ 120 fps (4CH) 1280x720 @ 240 fps (8CH) |
| Camera Position | Change the viewcell position on the Live View screens |
| External Interface | |
| USB Interface | Front: 1 (USB 2.0) Back: 1 (USB 2.0) |
| Audio | HDMI Audio Output |
| Network | |
| Network Interface | 10/100Mbps Ethernet (RJ-45) x 1 |
| Wi-Fi | 2.4Ghz 802.11 b/g/n |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter, WPS |
| Power | |
| Power Input | DC 12V 3A |
| Power Consumption | Max. 15.6 W |
| LED Indicator | |
| LED Indicator | Power, Status, NET, Wi-Fi, WPS |
| Mechanic | |
| Form Factor | Desktop |
| Operation Buttons | Reset/WPS (Back) |
| Dimensions | 198 (W) x 200 (D) x 47(H) mm |
| Weight | 560 g (without HDD) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 0 ~ 95% |
| General | |
| Safety Certifications | CE, LVD, FCC, VCCI, C-Tick, MIC, NCC, BSMI |
| Warranty | 24 months |
| Client PC Requirements | |
| Operating System | Microsoft Windows OS: XP/Vista/7/8/10/2008/2012 |
| CPU | Intel Celeron or above |
| Memory | 2 GB or above |
| Ethenet | 10/100 Mbps |
| Display Resolution | 1024 x 768 pixels or above |
| Web Browser | Internet Explorer 10 (32 bit) or above |
| Software AP | Installation Wizard 2, Shepherd, VAST, VAST2 |
| Mobile APP, Tablet APP | VIVOCloud, iViewer (iOS) VIVOCloud, iViewer (Android) |
| Cloud Connection | VIVOCloud Portal |
| Accessories | |
| Others | Power adaptor, QIG, 8 x HDD screw, 2 x HDD Brackets,1 x USB Mouse, 2 x 2.4Ghz Wi-Fi Antenna |
| Record | |
| Maximum Channel | Up to 8 ( 4CH Wi-Fi + 4CH Wired) |
| Record Throughput (MB) | 24 Mbps, default settings: 1920X1080 @ 32 fps (4CH) |
| Network Throughput (MB) | 40 Mbps |
| Audio Format | G.711, G.726 |
| Video Format | MJPEG, H.264 |
| Video Resolution | UP to 8MP Camera |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Stream | Single |
| Recording Mode | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming |
| Recording Setting | Recycle (unit: Day) |
| Recording Path | Local Path |
| Record Video Format | 3GP |
| Watermark | Supported |
| Schedule Backup | Supported |
| LiveView (Local Display) | |
| Stream Application | Constant/Auto Adaptive Stream |
| LiveView Display | 8 Channels (4CH Wi-Fi + 4CH Wired) Multiple Layout Display: 1x1, 3V, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6 |
| Monitor Enhancement | OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio, Fisheye Dewarp (1O, 1P, 1R, 1O3R, 1P3R, 1O8R) |
| PTZ Control | Panel Control/Joystick |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control |
| Playback (Local Display) | |
| Playback Display | 4 Channels Multiple Layout Display: 1x1, 2x2, 1P+3, 1V+3 |
| Playback Control | Regular (Play, Pause, Stop), Rewind, Next/ Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) |
| Video Search | By Calendar, Date/Time, Alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2 CH) |
| Monitor Enhancement | OSD Display (Camera), Event Notification, Aspect Ratio, PiP Control, Fisheye Dewarp (1O, 1P, 1R, 1O3R, 1P3R, 1O8R) |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| LiveView (Remote) | |
| Stream Application | Stream Selection |
| Audio Capability | One Way |
| LiveView Display | 4 Channels Multi Layout Display: 1x1, 2x2, 1V+3 |
| Monitor Enhancement | OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event Notification, Bookmark, Fisheye Dewarp (1O, 1P, 1R) |
| PTZ Control | Panel Control |
| PTZ Operation | Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group), PiP Control |
| Snapshot | JPEG |
| Playback (Remote) | |
| Playback Display | 4 Channels Multiple Layout Display: 1x1, 2x2, 1V+3 |
| Playback Control | Regular (Play, Pause, Stop), Next Frame, Speed Control, Calendar, Timeline, Timeline Scale, Bookmark |
| Monitor Enhancement | OSD Display (NVR), Drag & Drop, Audio Control, PiP Control, Fisheye Dewarp (1O, 1P, 1R) |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| Alarm Management | |
| Schedule Type | Continuous, Schedule, Manual |
| Event | Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss |
| Action | Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), Camera DO, VIVOCloud APP Notification |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Backup | |
| Manual | USB Dongle (FAT Format), FTP Server Upload |
| System | |
| User Management | User Account: 16 User Account Time Limit: 10 mins User Level: Administrator / Regular User User Feature Definition: By Camera |
| Log | System, Recording, User, Error |
| Date&Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Firmware | Manual update |
| Restore Default | Supported |
| Backup/Restore (Configuration) | Supported |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese, Polish |
| Camera Integration | |
| Insert Camera | Manual, Search |
| Video (Media) Setting | Compression, Resolution, FPS, Video Quality |
| Image Setting | Image Display Image Adjustment |
| Motion Detection | Supported |
| ONVIF Core Spec | Version 2.2 or above (By Project) |
| ONVIF Stream | Video (H.264 & MJPEG) |
| ONVIF Recording | Continuous, Schedule, Manual |
| ONVIF Discover | Discover other brand camera through "Insert Camera & Batch Insert" |
| Model | IB8360-W: WiFi, 12M IR, IP66 |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Camera Features | |
| Image Sensor | 1/2.9" Progressive CMOS |
| Max. Resolution | 1920x1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F2.0 |
| Iris type | Fixed-iris |
| Field of View | 89° (Horizontal) 46° (Vertical) 105° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 12 meters with Smart IR, IR LED*10 |
| Minimum Illumination | 0.1 Lux @ F2.0 (Color) 0.01 Lux @ F2.0 (B/W) 0 Lux with IR illumination on |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| On-board Storage | Slot type: Micro SD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 65dB |
| Dynamic Range | 70dB |
| Video Streaming | Adjustable resolution, quality and bitrate Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, defog, 3DNR, video rotation |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, SNMP, SSL, TLS, ARP, CIFS/SMB |
| Interface | IEEE 802.11 b/g/n WLAN |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card |
| General | |
| Connectors | DC 12V power input*1 |
| LED Indicator | System power and status indicator |
| Power Input | DC 12V 1.5A |
| Power Consumption | Max. 6.1 W |
| Dimensions | 99.22 x 74.47 x 163.53 mm |
| Weight | 195 g |
| Casing | IP66 |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F) Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) |
| Humidity | 90% |
| Warranty | 24 Months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above Quicktime: 7 or above |
| Included Accessories | |
| Power Adapter | 12V, 1.5A DC power adapter |
| Others | Quick installation guide, warranty card, stand with screw kit |
