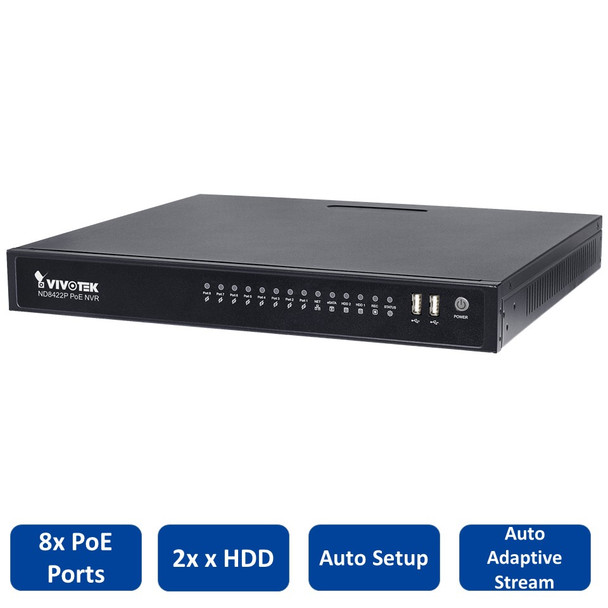

Vivotek ND8422P 16 Channel Network Video Recorder - 8 PoE Ports, No HDD Included
ND8422P
Save
33%
33%
Hover on image to enlarge
- Shipping Policy
- Return Policy
- Ask Question
Asked by Andrew |
07/04/2018, 04.41 PM
|
1 answer(s)
Delivery
Payment options
fingerprintOur advantages
Frequently bought together
Description
Vivotek ND8422P 16-CH Embedded Plug & Play NVR
The Vivotek ND8422P 16-CH Embedded Plug & Play NVR is a standalone NVR with 8-port 802.3af Compliant PoE, allowing connection with PoE cameras for a 120W power supply. ND8422P comes with easy-to-use "One Button Setup" with plug- &-play and auto-setup functionality, making for simple installations. Solid for any small-scale video surveillance application.
Supporting HDMI and VGA local video output, users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to search video or to playback from the NVR. The new local display design - Auto Adaptive Stream will dynamically modify Stream 2 resolution of a camera to best fit the display resolution according to the layout type, resulting in an efficient display, while maintaining superb image quality. Meanwhile, ND8422P supports software fisheye camera de-warping function, providing right angle of video view and detailed information for usage. What's more, ND8422P, featuring various I/O ports, such as eSATA port, alarm input/output, RS232, and RS485 provides users great flexibility of applications.
Key Features of Vivotek ND8422P 16-CH Embedded Plug & Play NVR
- Plug & Play One Button Auto Setup
- EZConnect by Scanning QR Code for 24/7 Mobile Viewing
- Intuitive, Elegant Interaction UI
- 8x 802.3af Compliant PoE Ports
- VIVOTEK Camera Configuration and VAST CMS Integrated
- Live and Playback Fisheye Dewarp
- Embedded Linux OS
- e-SATA for Extension Storage
- Story Board Event Search
- ONVIF Open Platform
- Fanless Design
- Up to 12MP Camera Liveview & Playback
Features
Manufacturer:
Vivotek
Product Type:
Recorders
Warranty:
2-year Manufacturer Warranty
Compression:
- H.264
- MJPEG
Discontinued:
no
Video Recorder Features
4K Support:
Max. Incoming Bandwidth:
96Mbps
Recorder Technology:
Network Video Recorder (NVR)
Number of camera channels:
- 16 camera channels
Video Output:
- 1x HDMI
- 1x VGA
Max. Storage Capacity:
16 TB
ePoE Technology
:
ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems. For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed. For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters.
Hard Drive Ports:
2 SATA Ports
e-SATA:
YES
Pre-Installed Storage (Recorders):
No HDD included
Technical Specs
Hardware Information
| Model | ND8422P |
| System | |
| OS | Embedded Linux |
| CPU | ARM Processor |
| Flash | 256 MB |
| RAM | 2 GB |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Storage | |
| HDD Devices | Internal x 2 |
| HDD Max. Capacity | 6 TB x 2 |
| Disk Management |
Create, Format and Remove Disk
HDD S.M.A.R.T |
| Video | |
| Video Output | HDMI x 1, VGA x 1 |
| Resolution | 1920 x 1080, 1280 x 720 |
| Graphics Decoder | Hardware decoding |
| Decoding Capacity |
H.264:
2560 x 1920 @ 30 fps (1-CH) 1920 x 1080 @ 120 fps (4-CH) 1280 x 720 @ 240 fps (8-CH) 720 x 480 @ 480 fps (16-CH) |
| Camera Position | Change the viewcell position on the Live View screens |
| External Interface | |
| USB Interface |
Front: 2 (USB 2.0)
Back: 1 (USB 2.0) |
| Alarm In | 8 |
| Alarm Out | 4 |
| Audio | 1 x 3.5 Phone Jack Audio Output 1 x 3.5 Phone Jack Audio Input (Reserved) |
| External HDD | 1 x eSATA Port |
| RS232 | 1 Port (Reserved) |
| RS485 | 1 Port (Reserved) |
| Network | |
| Network Interface |
10/100/1000 Mbps Ethernet (RJ-45) x1
*It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. |
| PoE |
8x 802.3af Compliant PoE Ports (Total Max. 80 W)
Please connect an external network switch for further on-line cameras. (Support all VIVOTEK PoE Switch) |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| Power | |
| Power Input | DC 56V 2.5A |
| Power Consumption | Max. 120 W |
| LED Indicator | |

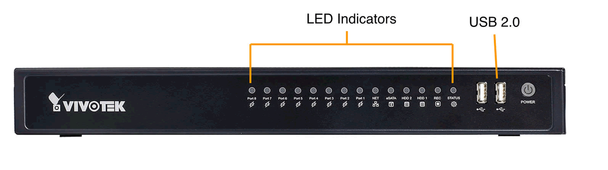

| LED Indicator | Power, Status, Record, HDD1, HDD2, eSATA, Ethernet, Port1~Port8 |
| Mechanic | |
| Form Factor | Desktop |
| Operation Buttons | Power (Front) / Reset (Back) |
| Dimensions | 360 (W) x 311 (D) x 44 (H) mm |
| Weight | 2.7 kg (without HDD) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 0 ~ 95% |
| General | |
| Safety Certifications | CE, LVD, FCC, VCCI, C-Tick, UL |
| Warranty | 24 months |
| Client PC Requirements | |
| Operating System |
Microsoft Windows OS:
XP/Vista/7/8/2008/2012 |
| CPU | Intel Celeron or above |
| Memory | 2 GB or above |
| Ethenet | 10/100 Mbps |
| Display Resolution | 1024 x 768 pixels or above |
| Web Browser | Internet Explorer 10 (32 bit) or above |
| Software AP | Installation Wizard 2, ST7501, VAST |
| Mobile/Tablet App | EZConnect (iOS/Android), iViewer (iOS/Android) |
| Accessories | |
| CD | User's Manual, Quick Installation Guide (QIG), Installation Wizard 2 |
| Others | Power Adapter, Power Cord, Quick Installation Guide, 16 x H.D.D. Screws, 4 x H.D.D. Brackets, 1 x USB Mouse, 2 x SATA Cables |
Software Information
| Record | |
| Maximum Channel | 16 |
| Record Throughput (MB) | 96 Mbps |
| Network Throughput (MB) | 24 Mbps |
| Audio Format | G.711, G.726 |
| Video Format | MJPEG, H.264 |
| Video Resolution | VGA, 1MP, 2MP, 3MP, 5MP & 12MP Camera |
| Recording Time (sec.) |
Pre-Record: 5 (max. 10)
Post-Record: 20 (max. 300) |
| Recording Stream | Single |
| Recording Mode |
Continuous, Schedule, Manual, Event,
Activity Adaptive Streaming |
| Recording Setting | Recycle (unit: Day) |
| Recording Path | Local Path |
| Record Video Format | 3GP |
| LiveView (Local Display) | |
| Stream Application | Auto Adaptive Stream |
| LiveView Display |
16 Channel
Multi Layout display: 1x1, 1x3 (Corridor View), 2x2, 3x3, 4x4, 1+5, 1+3, 1+12, 1+1+3 (1P), 1+3+3 (1P) |
| Monitor Enhancement |
OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio
Fisheye Dewarp: 1O,1P,1R,1O3R,1O8R |
| PTZ Control | Panel Control |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control |
| Playback (Local Display) | |
| Playback Display |
1 Channel
Multi Layout Display: 1x1 |
| Playback Control | Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) |
| Video Search | By calendar, date/time, and alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2 CH) |
| Monitor Enhancement | OSD Display (Camera), Event Notification, Aspect Ratio, PiP Control, Fisheye Dewarp (1O,1P,1R,1O3R) |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| LiveView (Remote) | |
| Stream Application | Stream Selection |
| Audio Capability | One Way |
| LiveView Display |
16 Channel
Multi Layout display: 1x1, 2x2, 3x3, 4x4, 1+3, 1+5, 1+12 |
| Monitor Enhancement | OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event Notification, Bookmark, Fisheye Dewarp (1O, 1P, 1R) |
| PTZ Control | Panel Control |
| PTZ Operation | Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group), PiP Control |
| Snapshot | JPEG |
| Playback (Remote) | |
| Playback Display |
4 Channel
Multi Layout display: 1x1, 2x2, 1+3 |
| Playback Control | Regular (Play, Pause, Stop), Next Frame, Speed Control, Calendar, Timeline, Timeline Scale, Bookmark |
| Monitor Enhancement | OSD Display (NVR), Drag & Drop, Audio Control, PiP Control |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| Alarm Management | |
| Schedule Type | Continuous, Schedule, Manual |
| Event | Motion Detection, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full, Camera Network Loss, DI, DO |
| Action | Record, Email (Text), Email (Snapshot), FTP, Buzzer, PTZ Control (Go to Preset), NVR DO, Camera DO |
| Recording Time (sec.) | Pre-Record: 5 (max. 10), Post-Record: 20 (max. 300) |
| Backup | |
| Manual | USB Dongle (FAT Format) |
| System | |
| User Management |
User Account: 16 User
Account Time Limit: 10 mins User Level: Administrator / Regular User User Feature Definition: By Camera |
| Log | System, Recording, User, Error |
| Date&Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Firmware | Manual update |
| Restore Default | Supported |
| Backup/Restore (Configuration) | Supported |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese |
| Camera Intergration | |
| Insert Camera | Manual, Search |
| Video (Media) Setting | Compression, Resolution, FPS, Video Quality |
| Image Setting | Image Display Image Adjustment |
| PTZ Control | Panel Control |
| PTZ Operation | Direction Control, Home, Preset, Patrol (Group) |
| Motion Detection | Supported |
| ONVIF Core Spec | Version 2.2 or above (By Project) |
| ONVIF Stream | Video (H.264, MPEF4 & MJPEG) |
| ONVIF Recording | Continuous, Schedule, Manual |
| ONVIF Discover | Discover the other brand camera through "Insert Camera & Batch Insert" |
| Device Intergration | |
| UPS | APC Model Compatible |
